- 10 -

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

• Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

• Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

1-6 SetupoftheAMDDualGraphicsConguration

A. System Requirements

- AMD A series processor

- Windows 8/7 operating system

- An AMD Dual Graphics technology-supported motherboard (with the BIOS updated to the latest version)

and correct driver (make sure the onboard graphics driver version is Rev. 8.982 or above)

- An AMD Radeon

™

HD 6000 series graphics card that supports AMD Dual Graphics technology (for more

details, please visit AMD's ofcial website) and correct driver

B.InstallingtheGraphicsCardsandConguringBIOSSetup

Step 1:

Observe the steps in "1-5 Installing an Expansion Card" and install an AMD Dual Graphics technology-supported

graphics card on the PCIEX16 slot. Plug the monitor cable into the graphics card and start up your computer.

Step 2:

Enter BIOS Setup to set the following items under the Peripherals\GFXConguration menu:

- Set Integrated Graphics to Force.

- Set UMA Frame Buffer Size to 512M or above.

Save the settings and exit BIOS Setup. Restart your computer.

C.ConguringtheGraphicsDriver

After installing the graphics card driver in the operating system, go to the AMDVISIONEngineControlCenter.

Browse to Performance\AMD Radeon

™

Dual Graphics and ensure the Enable AMD Radeon Dual Graphics

check box is selected.

(Note) Make sure the drivers for the Chipset, onboard graphics, and external graphics card are properly

installed.

DualChannelMemoryConguration

This motherboard provides four DDR3 memory sockets and supports Dual Channel Technology. After the

memory is installed, the BIOS will automatically detect the specications and capacity of the memory. Enabling

Dual Channel memory mode will double the original memory bandwidth.

The four DDR3 memory sockets are divided into two channels and each channel has one memory socket as

following:

Channel A: DDR3_2, DDR3_4

Channel B: DDR3_1, DDR3_3

Due to APU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one DDR3 memory module is installed.

2. When enabling Dual Channel mode with two or four memory modules, it is recommended that memory

of the same capacity, brand, speed, and chips be used and installed in the same colored DDR3

sockets. For optimum performance, when enabling Dual Channel mode with two memory modules,

we recommend that you install them in the DDR3_1 and DDR3_2 sockets.

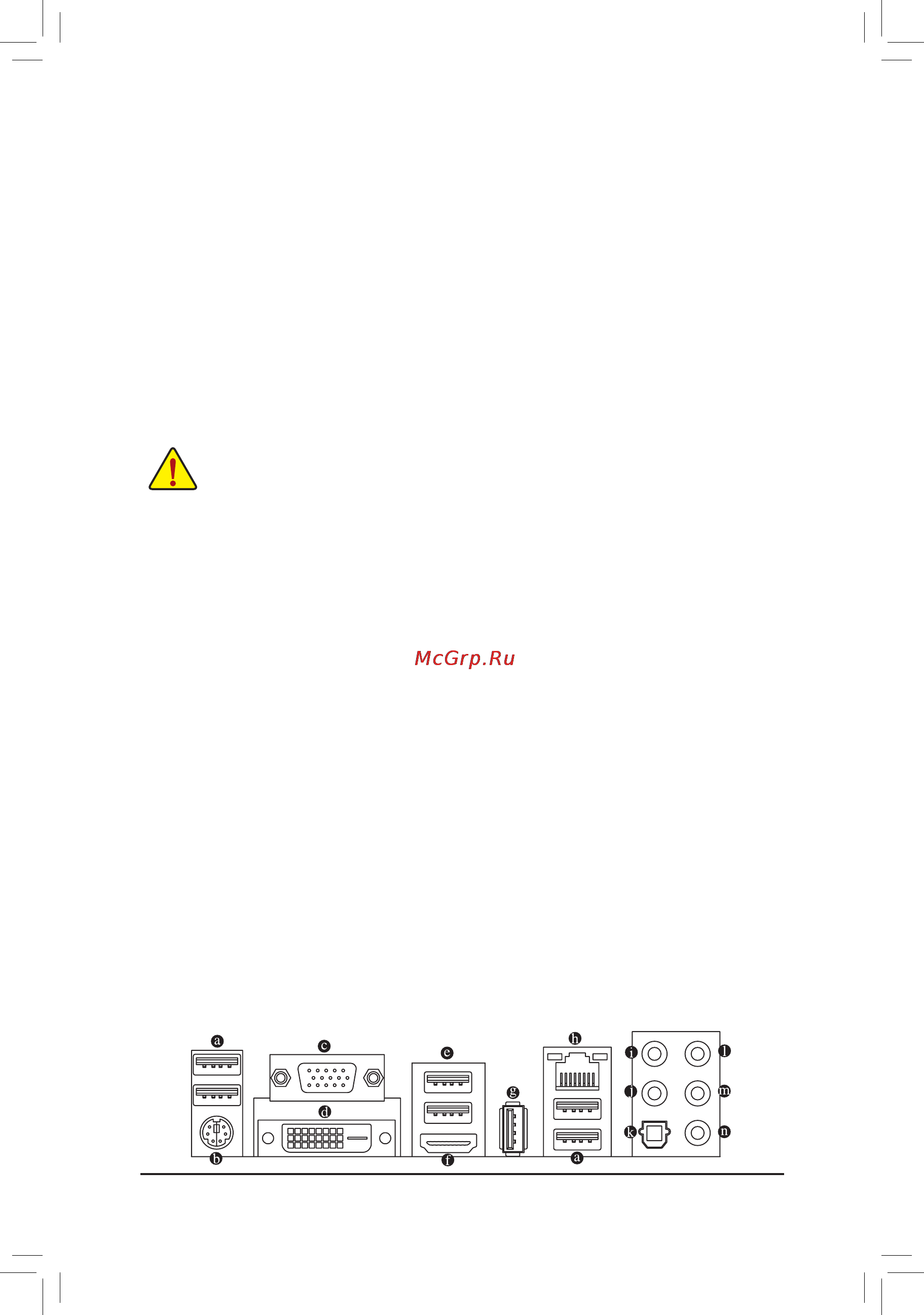

1-7 Back Panel Connectors
