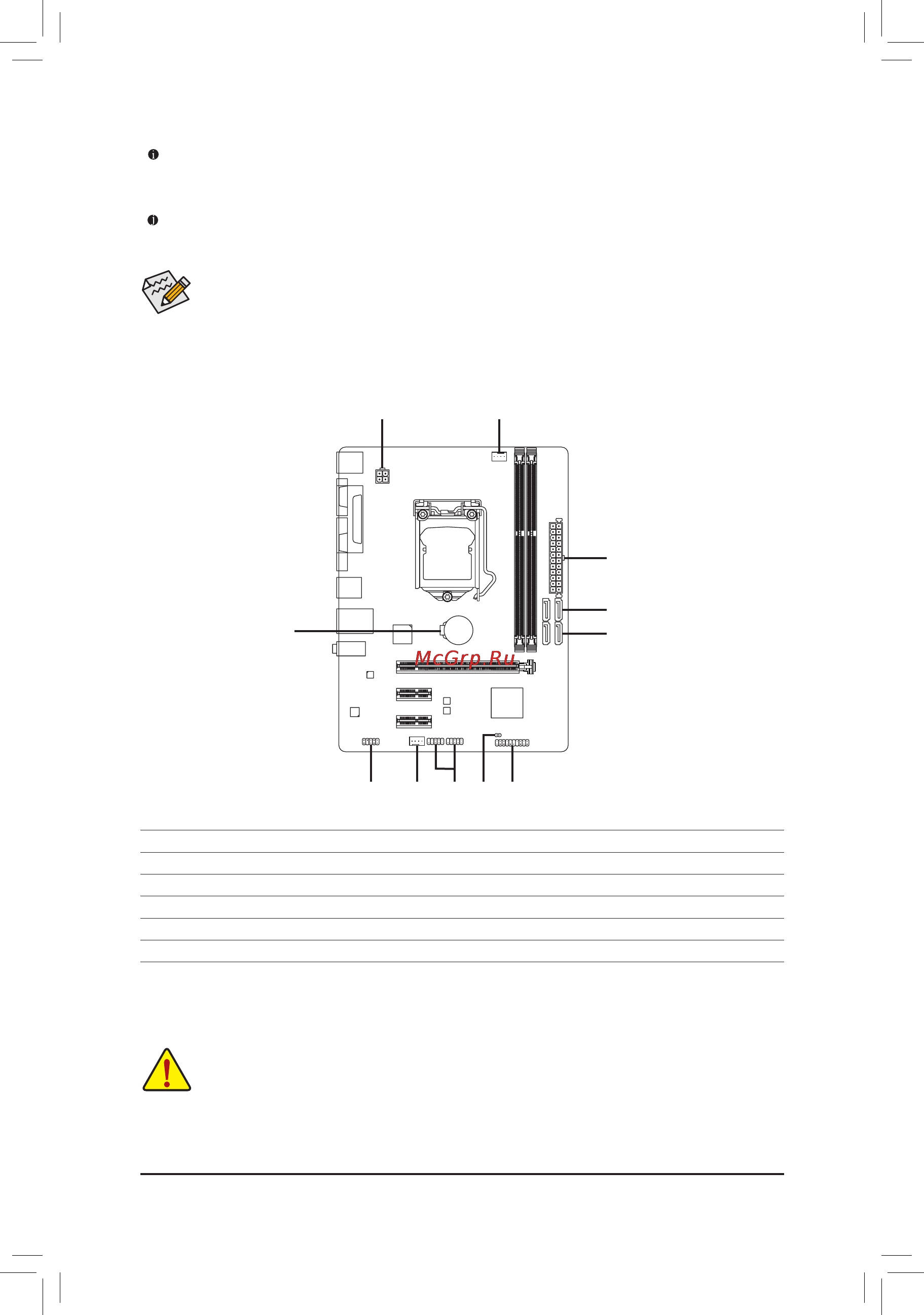

1-7 Internal Connectors

Line Out Jack (Green)

The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be used

to connect front speakers in a 4/5.1/7.1-channel audio conguration.

Mic In Jack (Pink)

The default Mic in jack. Microphones must be connected to this jack.

1 3

9 4 11 8

1) ATX_12V

2) ATX

3) CPU_FAN

4) SYS_FAN

5) BAT

6) SATA3 0/1

7) SATA2 2/3

8) F_PANEL

9) F_ AUDIO

10) F_USB1/F_USB2

11) CLR_CMOS

To congure 7.1-channel audio, you have to use an HD front panel audio module and enable the

multi-channel audio feature through the audio driver.

Read the following guidelines before connecting external devices:

• First make sure your devices are compliant with the connectors you wish to connect.

• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power

cord from the power outlet to prevent damage to the devices.

• After installing the device and before turning on the computer, make sure the device cable has

been securely attached to the connector on the motherboard.
