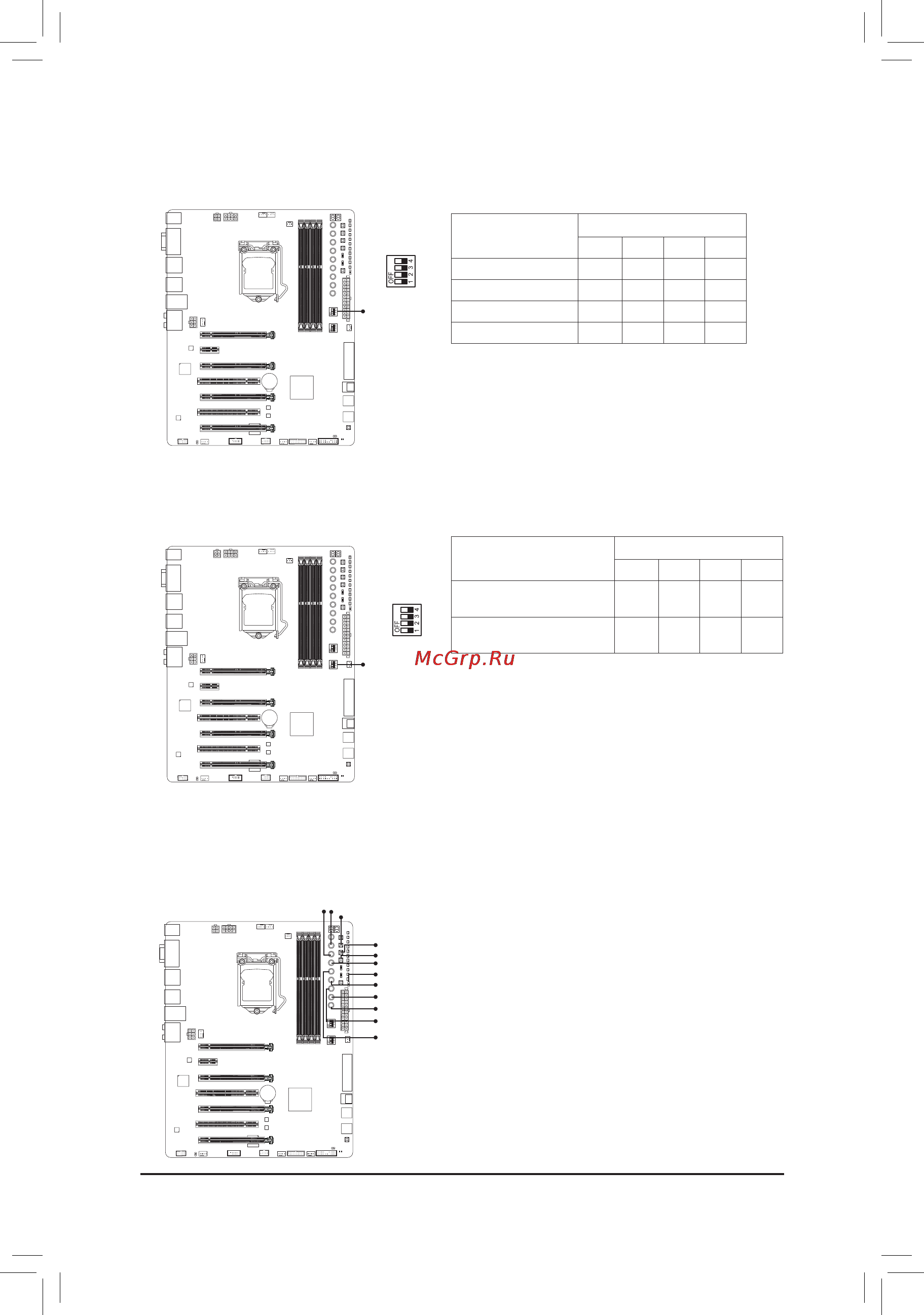

![Gigabyte ga-z97x-soc [24/120] Oc buttons](/views2/1167825/page24/bg18.png)
- 24 -
Hardware Installation
Gear Button
Changes BCLK stepping to 0.1 MHz or 1 MHz.
CPU BCLK Up Button (FREQ_UP):
Raises the CPU base clock.
CPU Ratio Down Button (RATIO_DW):
Lowers the CPU ratio.
CPU Ratio Up Button (RATIO_UP):
Raises the CPU ratio.
OC Buttons
GIGABYTE's unique OC buttons help enthusiasts and overclockers not only get the most performance from
their hardware, but also the absolute most enjoyable OC experience with features like overclocking the CPU in
real-time, automatically loading the most optimized overclocking conguration for the processor and memory,
and loading users' customized settings, etc.
OC PCIE Switch (PCIE_SW)
This switch allows you to manually turn off specic PCI Express slot(s) (except for the PCI Express x1 slot)
without physical removal.
Slot DIP Setting
DIP 1 DIP 2 DIP 3 DIP 4
Disabling PCIEX16 OFF ON ON ON
Disabling PCIEX4_1 ON OFF ON ON
Disabling PCIEX8 ON ON OFF ON
Disabling PCIEX4_2 ON ON ON OFF
PCIE_SW
F_USB30
F_U
B_
F_ F_
_
B
BS_
B
SB_
B
_S
S_
_
B
_U
_
B
S
123
123
123
123
1
1
1
1
BSS
S
_S
SSU
1 2 3 4 5
S3
BSSS
U
__ 3
F_USB3F
S _
S _
S _
SF
MEM_SAFE
DTB
SET_LOCK
TGR
OC_IGNITION
GEAR
FREQ_DW
TURBO
RATIO_DW
RATIO_UP
FREQ_UP
CPU BCLK Down Button (FREQ_DW):
Lowers the CPU base clock.
PCIE_SW
OC DIMM Switch (DIMM_SW)
This switch allows you to manually turn off specic memory slots without physical removal. (Note: Using the
OC DIMM switch may impact memory compatibility.)
Slots DIP Setting
DIP 1 DIP 2 DIP 3 DIP 4
Disabling Channel A
(DDR3_2 & DDR3_4)
OFF ON -- --
Disabling Channel B
(DDR3_1 & DDR3_3)
ON OFF -- --
DIMM_SW
DIMM_SW
TAG
F_USB30
F_U
B_
F_ F_
_
B
BS_
B
SB_
B
_S
S_
_
B
_U
_
B
S
123
123
123
123
1
1
1
1
BSS
S
_S
SSU
1 2 3 4 5
S3
BSSS
U
__ 3
F_USB3F
S _
S _
S _
SF
