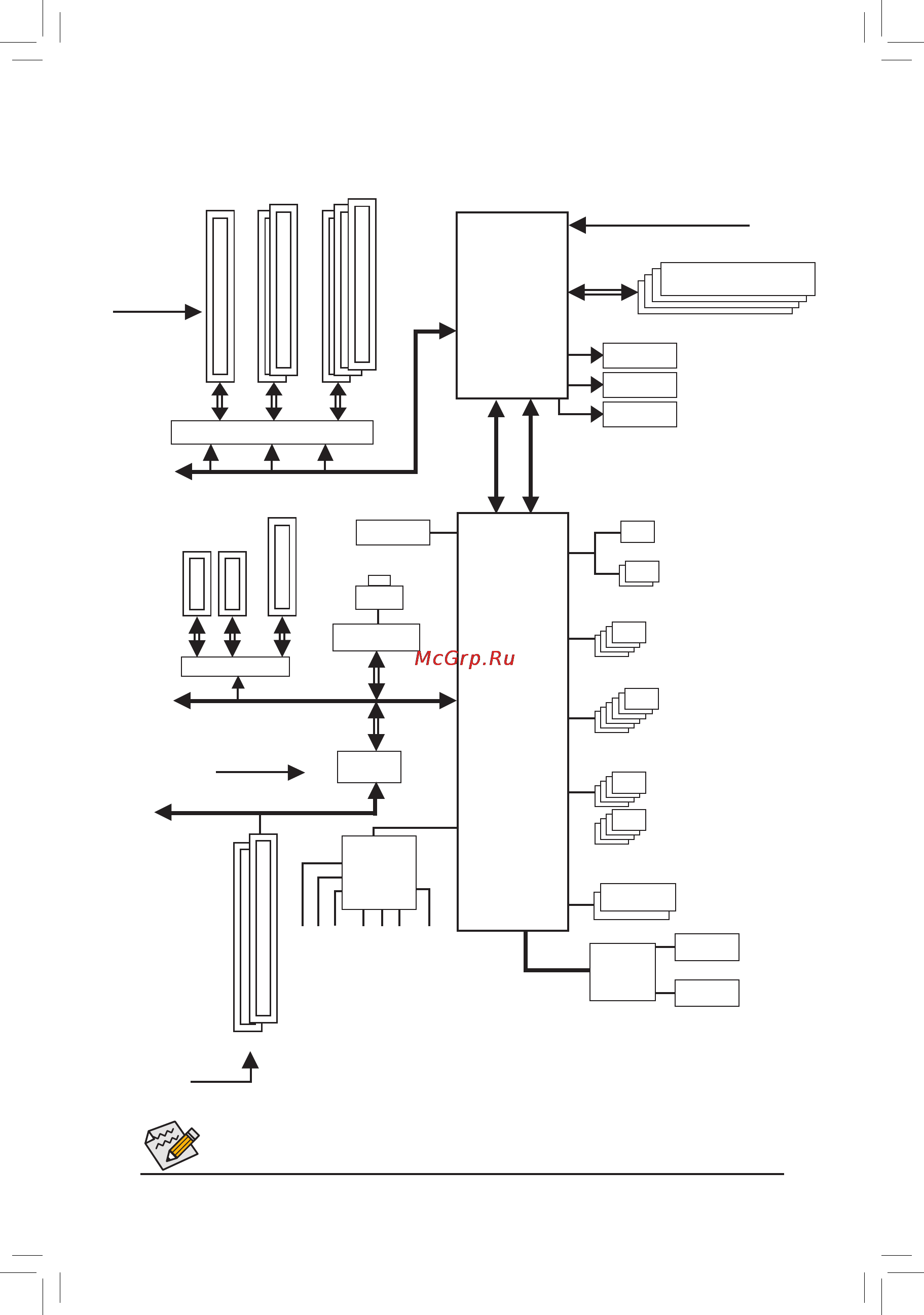

GA-Z97X-SOC Motherboard Block Diagram
Fordetailedproductinformation/limitation(s),referto"1-2ProductSpecications."
LGA1150
CPU
CPUCLK+/-(100MHz)
Dual BIOS
DDR31600/1333MHz
PCI Express Bus
PCIe CLK
(100MHz)
DMI 2.0
FDI
4 SATA 6Gb/s
LPC Bus
Center/Subwoofer Speaker Out
Line Out
MIC
Line In
S/PDIF Out
Rear Speaker Out
PS/2 KB/Mouse
iTE
®
Super I/O
DVI
HDMI
DisplayPort
Intel
®
Z97
Side Speaker Out
CODEC
COM
2 PCI
PCI Bus
PCI CLK
(33MHz)
PCIe to PCI
Bridge
x1
D-Sub
x1
6 USB 3.0/2.0
8 USB 2.0/1.1
1 SATA Express
2 PCI Express x1
x4
x1x1
Switch
or
1 PCI Express x4
2 SATA 6Gb/s
or
Dual Channel Memory
LAN
RJ45
Intel
®
GbE LAN
PCI Express Bus
PCIe CLK
(100MHz)
Switch
x16x16
1 PCI Express x16
2 PCI Express x8
or
x16
2 PCI Express x4+1 PCI Express x8
or
