Conguring SATA Hard Drive(s)

- 72 -

Delete RAID Volume

To delete a RAID array, press <Enter> on the volume to be deleted on the Intel(R) Rapid Storage Technology

screen. After entering the RAID VOLUME INFO screen, press <Enter> on Delete to enter the Delete screen.

Press <Enter> on Yes(Figure8).

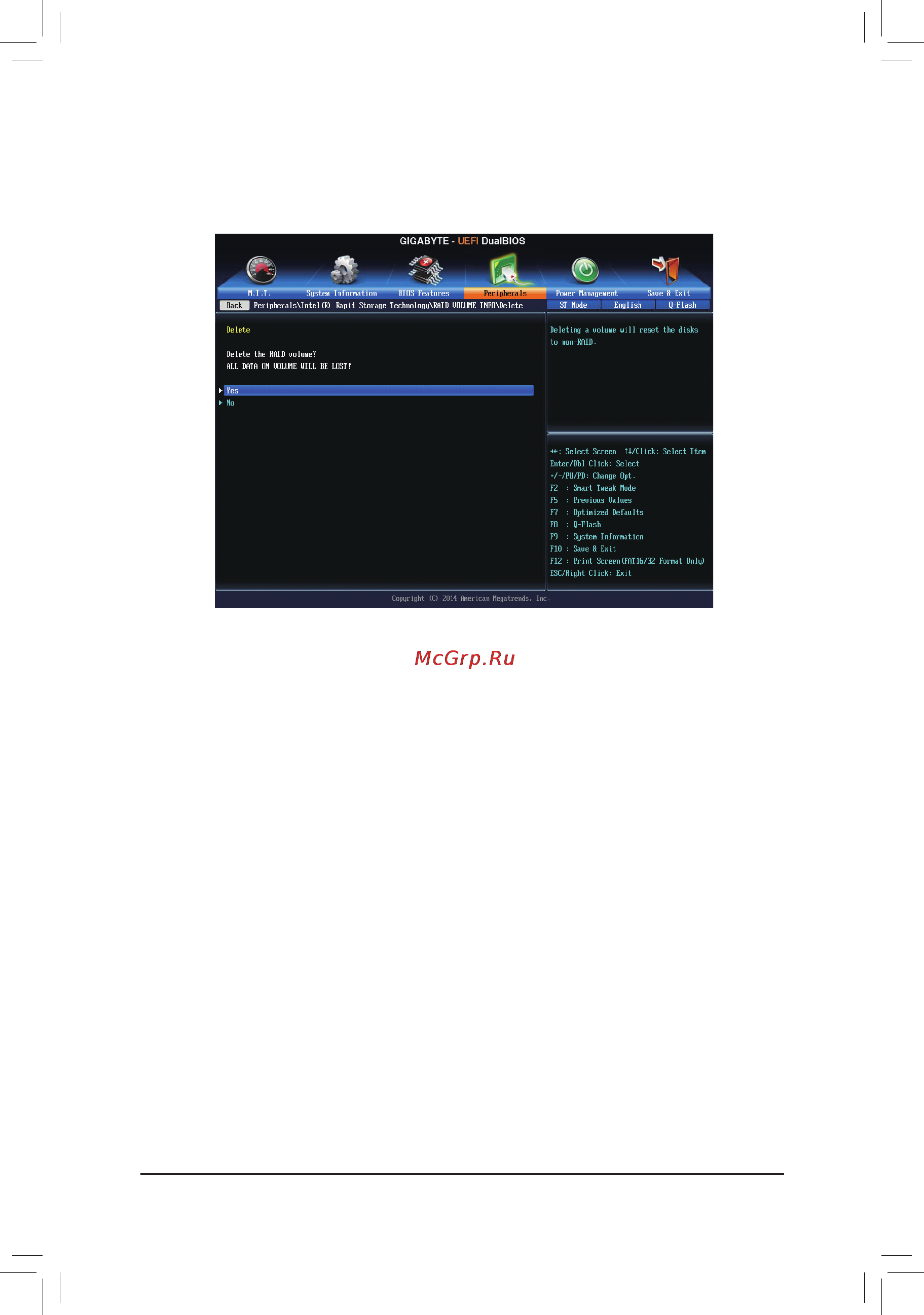

Figure 8
