- 8 -

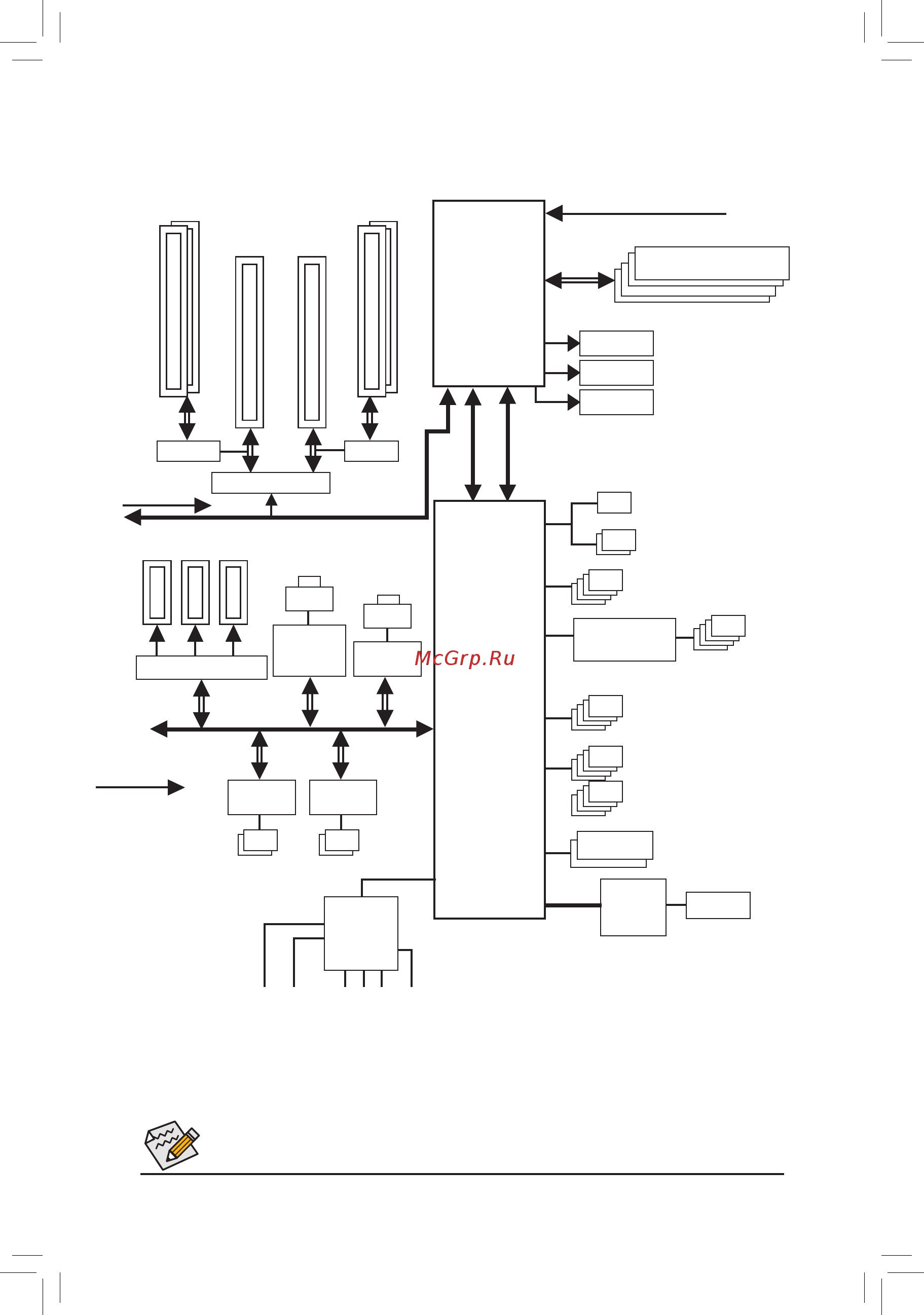

GA-Z97X-Gaming G1 WIFI-BK Motherboard Block Diagram
Fordetailedproductinformation/limitation(s),referto"1-2ProductSpecications."
LGA1150
CPU
CPUCLK+/-(100MHz)
Dual BIOS
DDR31600/1333MHz
PCIeCLK(100MHz)
DMI 2.0
FDI
LPC Bus
PS/2 KB/Mouse
iTE
®
Super I/O
DVI
HDMI
DisplayPort
Intel
®
Z97
4 USB 3.0/2.0
8 USB 2.0/1.1
x1
LAN1
RJ45
Qualcomm
®
Atheros Killer
E2201 LAN
PCIe CLK
(100MHz)
PCI Express Bus
1 PCI Express x16
PLX
®
PEX8747
x16
x16
Switch
1 PCI Express x16
x16
Switch
2 PCI Express x8
x16
PCI Express Bus
LAN2
RJ45
Intel
®
GbE
LAN
3 PCI Express x1
PLX
®
PEX8605
x1x1 x1
x1
4 USB 3.0/2.0
Renesas
®
uPD720210 Hub
4 SATA 6Gb/s
1 SATA Express
2 SATA 6Gb/s
or
Marvell
®
88SE9172
x1
2 SATA 6Gb/s
Marvell
®
88SE9172
x1
2 SATA 6Gb/s
Creative
®
Sound Core
3D
Center/Subwoofer
Speaker Out
Line Out
MIC/Line In
S/PDIF Out
Rear Speaker Out
Headphone/Speaker Out
or
2 PCI Express x8
or
Dual Channel Memory
