Gigabyte ga-h81n-d2h [11/36] 7 internal connectors

- 11 -

• When removing the cable connected to a back panel connector, rst remove the cable from your

device and then remove it from the motherboard.

• When removing the cable, pull it straight out from the connector. Do not rock it side to side to prevent

an electrical short inside the cable connector.

To congure 7.1-channel audio, you have to use an HD front panel audio module and enable the

multi-channel audio feature through the audio driver.

USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as a USB

keyboard/mouse, USB printer, USB ash drive and etc.

Line In Jack (Blue)

The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.

LineOutJack(Green)

The line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be used to

connect front speakers in a 4/5.1/7.1-channel audio conguration.

Mic In Jack (Pink)

The Mic in jack. Microphones must be connected to this jack.

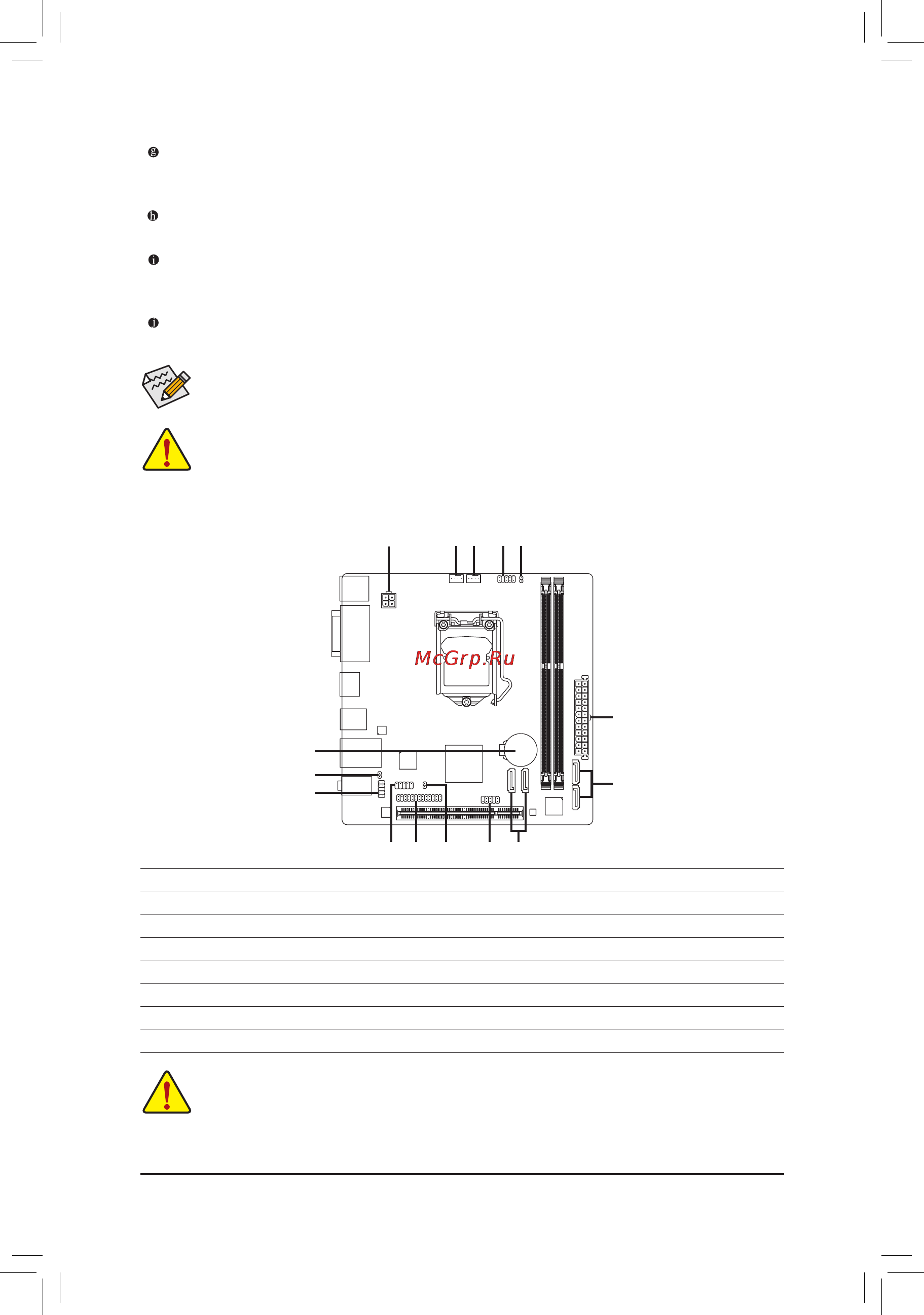

1-7 Internal Connectors

1) ATX_12V

2) ATX

3) CPU_FAN

4) SYS_FAN

5) SATA3 0/1

6) SATA2 2/3

7) F_PANEL

8) F_AUDIO

9) F_USB

10) COM

11) LPT

12) CI

13) BAT

14) SPDIF_O

15) CLR_CMOS

Read the following guidelines before connecting external devices:

• First make sure your devices are compliant with the connectors you wish to connect.

• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power

cord from the power outlet to prevent damage to the devices.

• After installing the device and before turning on the computer, make sure the device cable has been

securely attached to the connector on the motherboard.

1110 12

4 73 15
