- 12 -

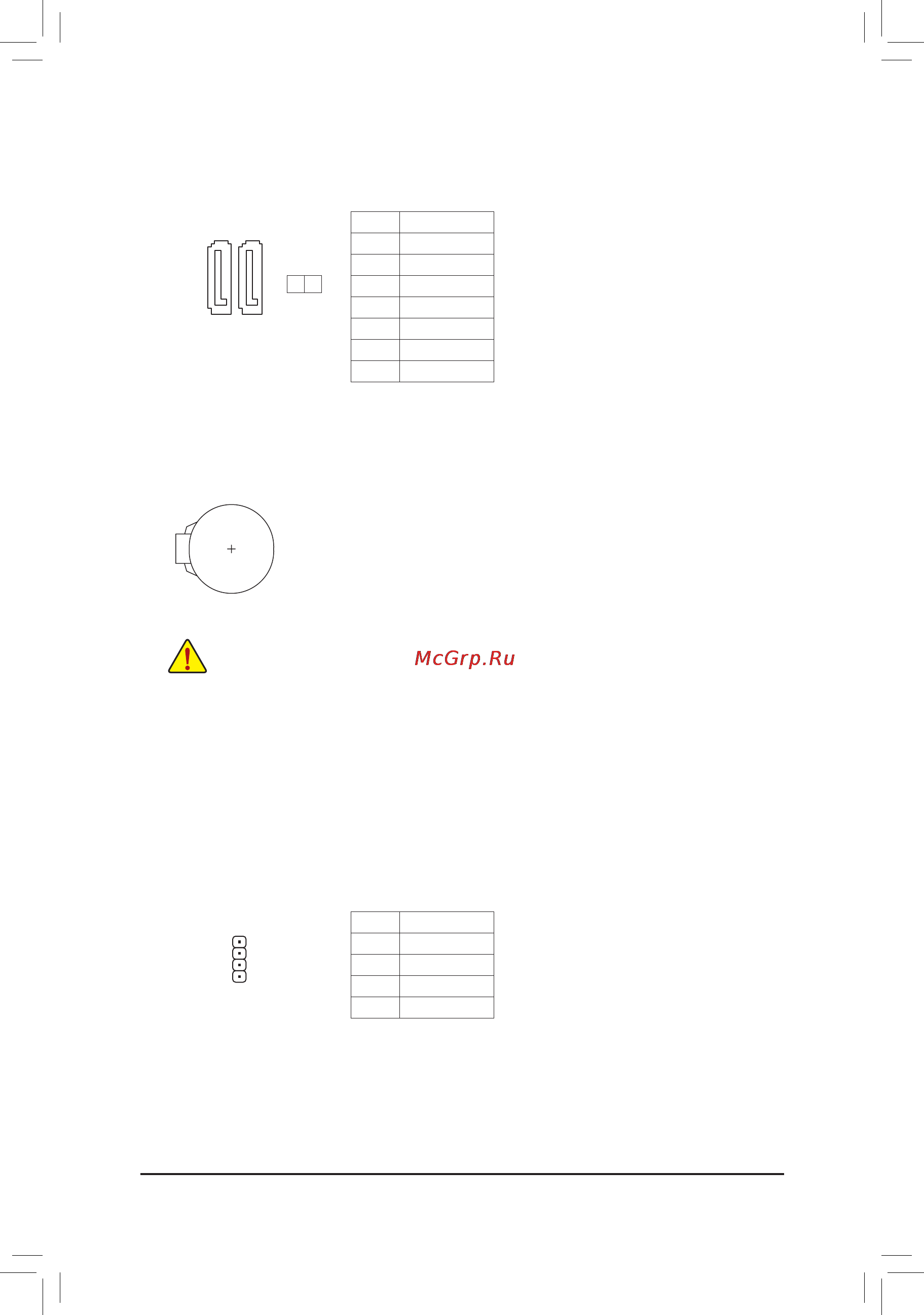

6) BAT (Battery)

The battery provides power to keep the values (such as BIOS congurations, date, and time information)

in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low

level, or the CMOS values may not be accurate or may be lost.

You may clear the CMOS values by removing the battery cable:

1. Turn off your computer and unplug the power cord.

2. Unplug the the battery cable from the battery cable header and wait for one minute.

3. Plug in the battery cable.

• When installing the battery, note the orientation of the positive side (+) and the negative side (-)

of the battery (the positive side should face up).

• Used batteries must be handled in accordance with local environmental regulations.

5) SATA3 0/1 (SATA 6Gb/s Connectors)

The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA

1.5Gb/s standard. Each SATA connector supports a single SATA device.

7) SPEAKER (Speaker Header)

Connects to the speaker on the chassis front panel. The system reports system startup status by issuing

a beep code. One single short beep will be heard if no problem is detected at system startup.

Pin No. Denition

7 GND

Pin No. Denition

1
