GA-Z77M-D3H-MVP/GA-Z77M-D3H/GA-H77M-D3H

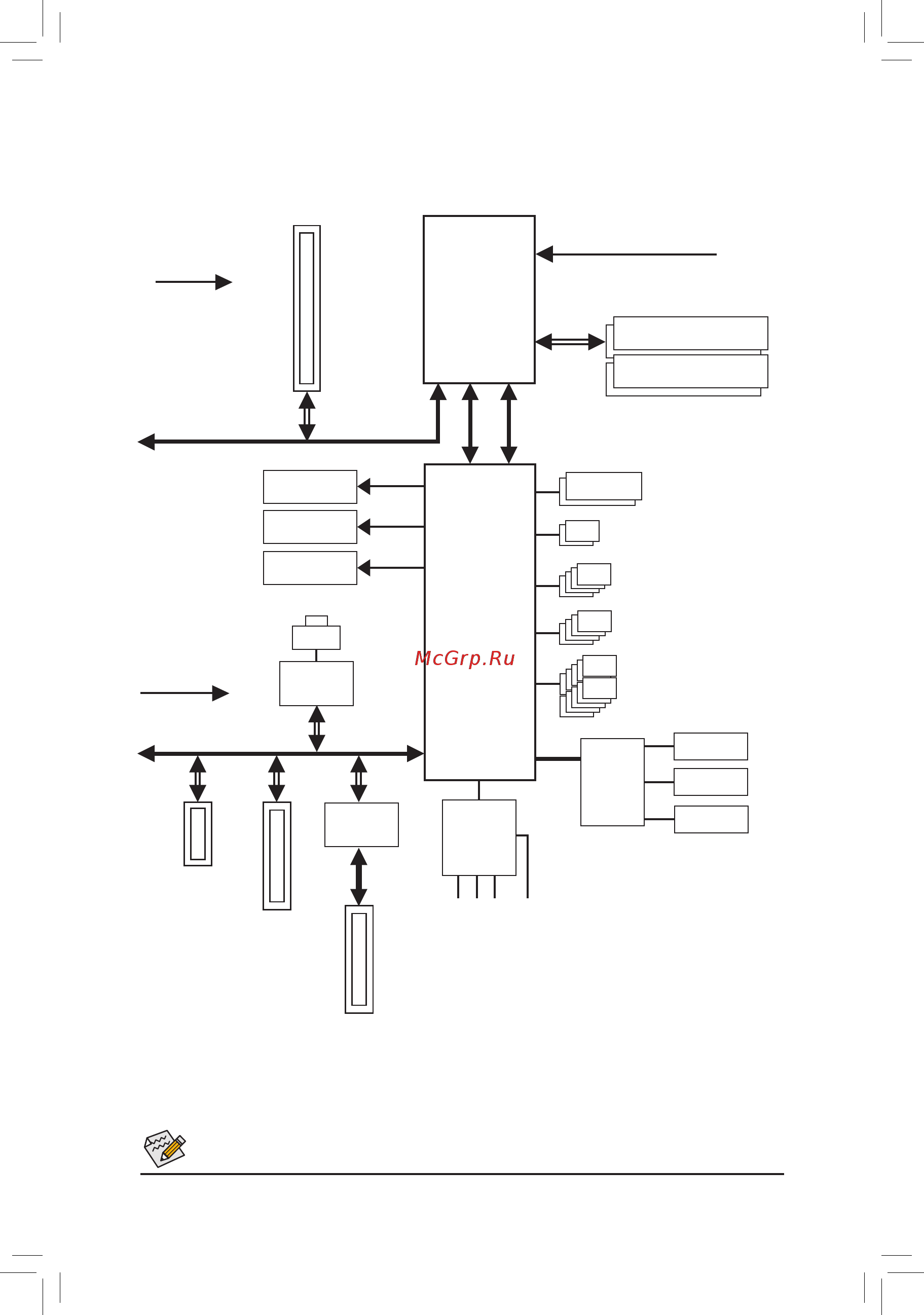

Motherboard Block Diagram
PS/2 KB/Mouse
COM
LPT
LPC
Bus
Line Out (Front Speaker Out)
MIC (Center/Subwoofer Speaker Out)
Line In (Rear Speaker Out)
S/PDIF Out
CODEC
LGA1155
CPU
PCI Express Bus
CPU CLK+/- (100 MHz)
PCIe CLK
(100 MHz)
1 PCI Express x16
x16
DMI 2.0
FDI
DDR3 1600/1333/1066 MHz
Dual Channel Memory
LAN
RJ45
PCI Express Bus
PCIe CLK
(100 MHz)
Atheros
GbE LAN
PCIe to
PCI Bridge
1 PCI Express x1
1 PCI Express x4
1 PCI
x1 x4 x1
PCI Bus
x1
Dual BIOS
D-Sub
DVI-D
HDMI
2 SATA 6Gb/s
4 USB 3.0/2.0
4 SATA 3Gb/s
10 USB 2.0/1.1
Intel
®
Z77 MN
Intel
®
H77 O
iTE
Super
I/O
M Only for GA-Z77M-D3H-MVP.
N Only for GA-Z77M-D3H.
O Only for GA-H77M-D3H.
Fordetailedproductinformation/limitation(s),referto“1-2ProductSpecications.”
