- 19 - Hardware Installation

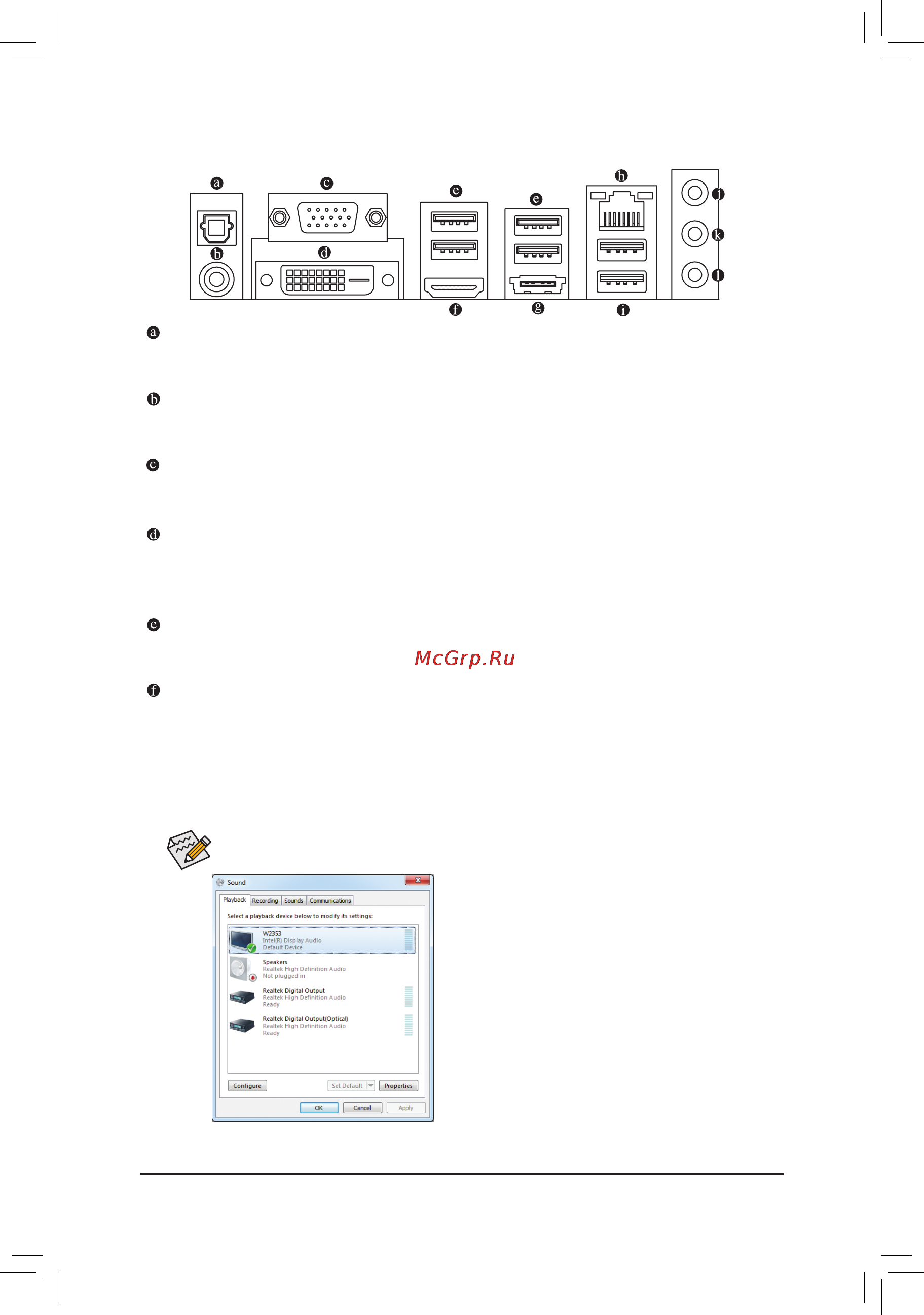

1-6 Back Panel Connectors

After installing the HDMI device, make sure to set the default sound playback device to HDMI. (The

item name may differ depending on your operating system. Refer to the screenshot below.)

In Windows 7, select Start>Control Panel>Hardware

and Sound>Sound>Playback, set Intel(R) Display Au-

dio to the default playback device.

Optical S/PDIF Out Connector

This connector provides digital audio out to an external audio system that supports digital optical audio.

Before using this feature, ensure that your audio system provides an optical digital audio in connector.

Coaxial S/PDIF Out Connector

This connector provides digital audio out to an external audio system that supports digital coaxial audio.

Before using this feature, ensure that your audio system provides a coaxial digital audio in connector.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector. Connect a monitor that supports D-Sub connection

to this port.

DVI-D Port

(Note)

The DVI-D port conforms to the DVI-D specication and supports a maximum resolution of 1920x1200

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports

DVI-D connection to this port..

USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as a USB keyboard/

mouse, USB printer, USB ash drive and etc.

HDMI Port

HDMI (High-Denition Multimedia Interface) is an all-digital audio/video interface capable of transmitting un-

compressed audio/video signals. The HDMI port is HDCP compliant and supports Dolby TrueHD and DTS HD

Master Audio formats. You can use this port to connect your HDMI-supported audio/video device. The maxi-

mum supported resolution is 1920x1200, but the actual resolutions supported are dependent on the monitor

being used.

(Note) The DVI-D port does not support D-Sub connection by adapter.
