GS1920 Series User’s Guide
105
CHAPTER 10
Static MAC Forward Setup
10.1 Overview
This chapter discusses how to configure forwarding rules based on MAC addresses of devices on
your network.
Use these screens to configure static MAC address forwarding.
10.1.1 What You Can Do
Use the Static MAC Forwarding screen (Section 10.2 on page 105) to assign static MAC
addresses for a port.
10.2 Configuring Static MAC Forwarding
A static MAC address is an address that has been manually entered in the MAC address table. Static
MAC addresses do not age out. When you set up static MAC address rules, you are setting static
MAC addresses for a port. This may reduce the need for broadcasting.
Static MAC address forwarding together with port security allow only computers in the MAC address
table on a port to access the Switch. See Chapter 19 on page 150 for more information on port
security.
Click Advanced Application > Static MAC Forwarding in the navigation panel to display the
configuration screen as shown.

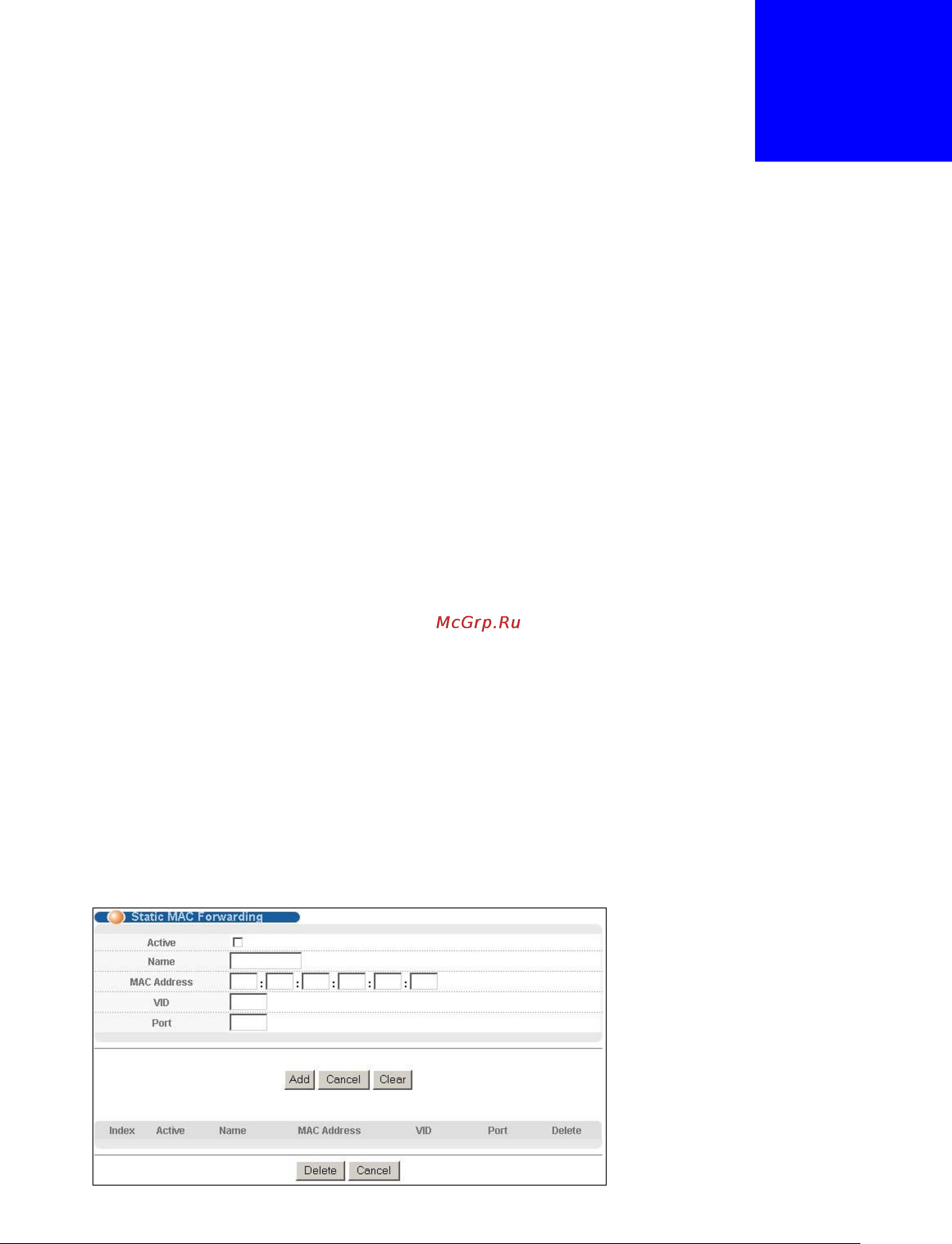

Figure 81 Advanced Application > Static MAC Forwarding
