GS1920 Series User’s Guide
135
CHAPTER 16
Mirroring
16.1 Mirroring Overview
This chapter discusses port mirroring setup screens.
Port mirroring allows you to copy a traffic flow to a monitor port (the port you copy the traffic to) in
order that you can examine the traffic from the monitor port without interference.
16.1.1 What You Can Do
Use the Mirroring screen (Section 16.2 on page 135) to select a monitor port and specify the
traffic flow to be copied to the monitor port.
16.2 Port Mirroring Setup
Click Advanced Application > Mirroring in the navigation panel to display the Mirroring screen.
Use this screen to select a monitor port and specify the traffic flow to be copied to the monitor port.

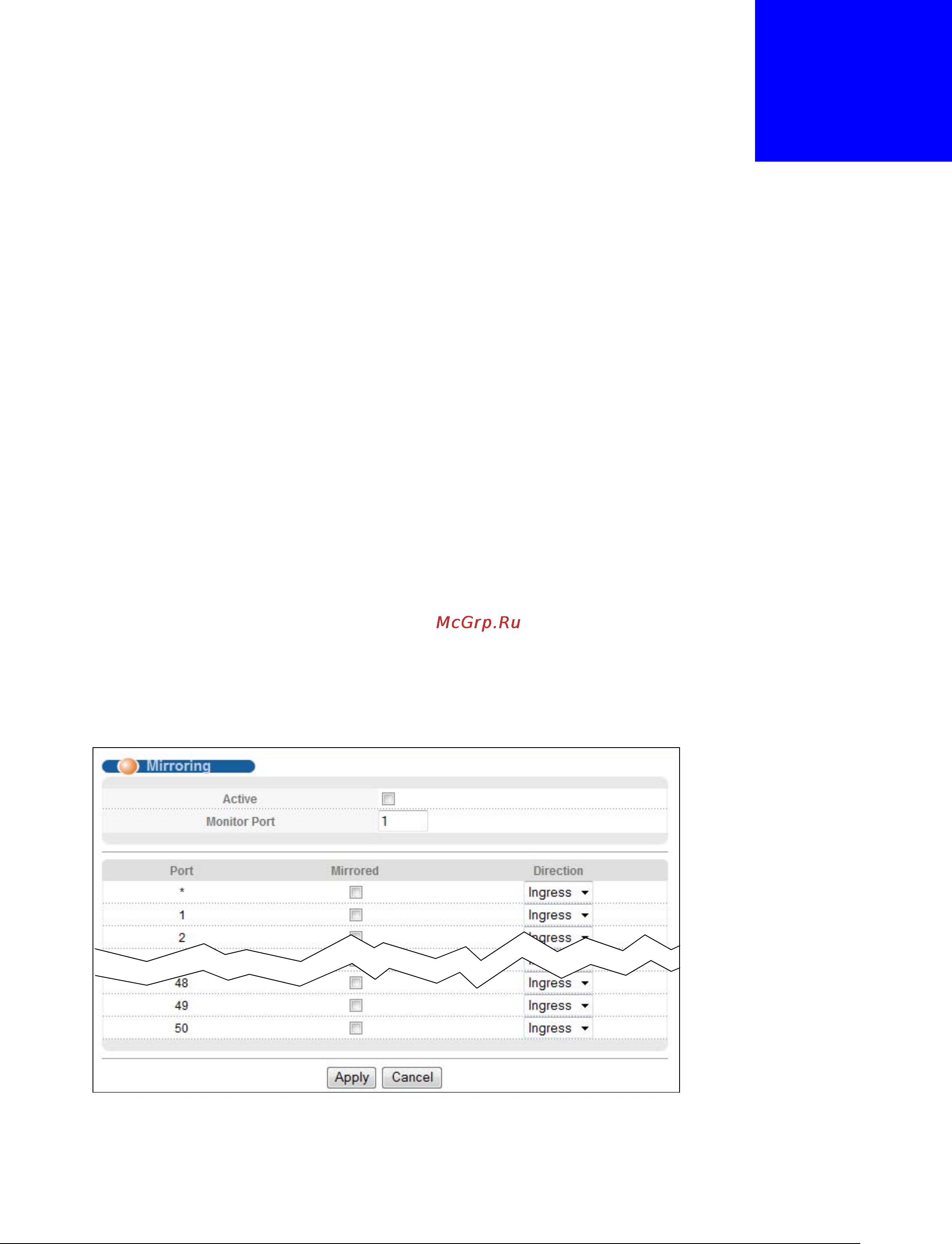

Figure 103 Advanced Application > Mirroring
