Appendix A Importing Certificates
NWA5000 / WAC6000 Series User’s Guide
201
Removing a Certificate in Internet Explorer
This section shows you how to remove a public key certificate in Internet Explorer 7 on Windows XP.

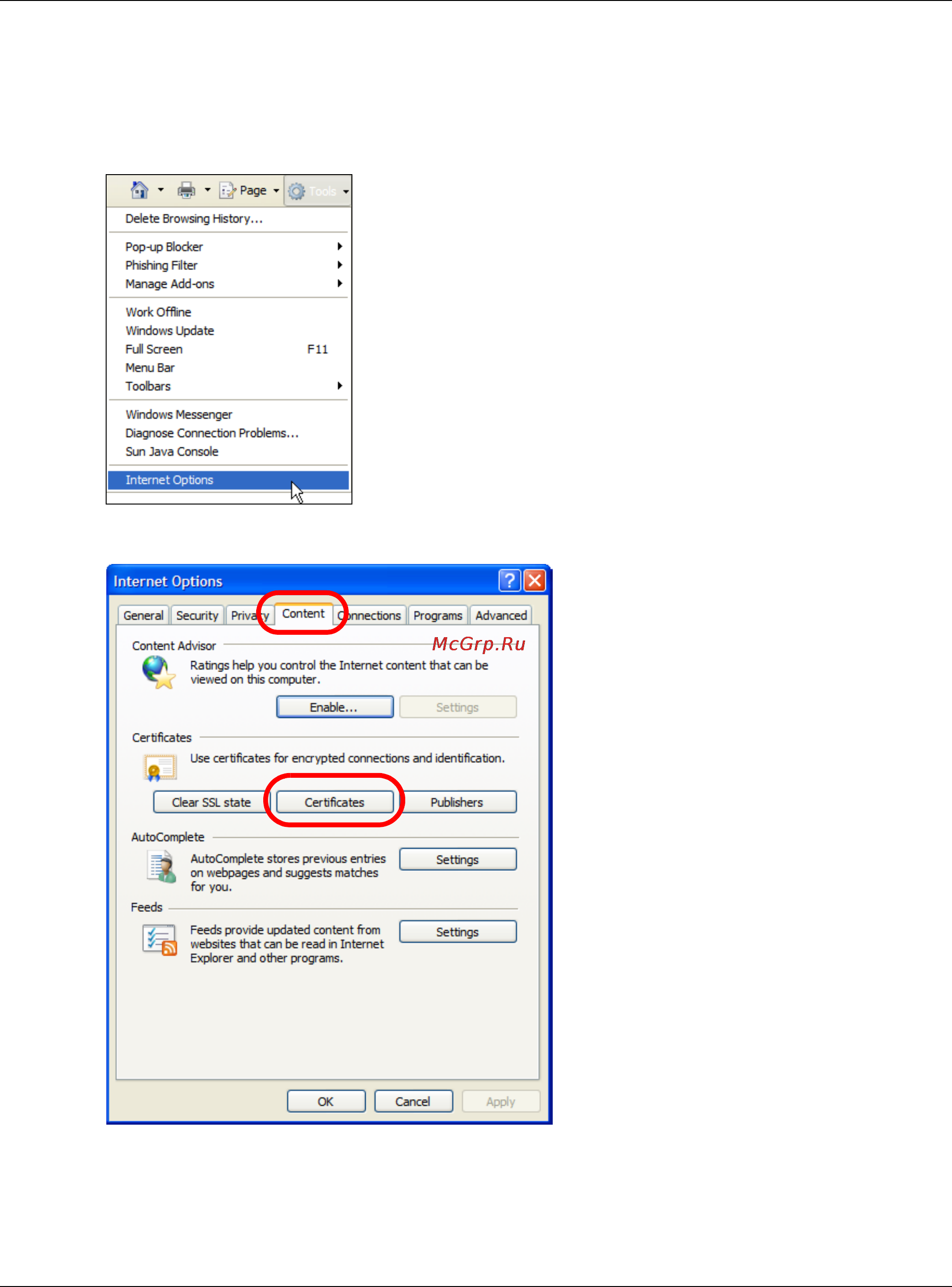

1 Open Internet Explorer and click Tools > Internet Options.
2 In the Internet Options dialog box, click Content > Certificates.
