Chapter 1 Introduction
NWA5000 / WAC6000 Series User’s Guide
21
1.6.1 WAC6502D-E, WAC6502D-S, WAC6503D-S and WAC6553D-E
The LEDs will stay ON when the WAC6500 Series is ready. You can change this setting in the
Maintenance > LEDs > Suppression screen.

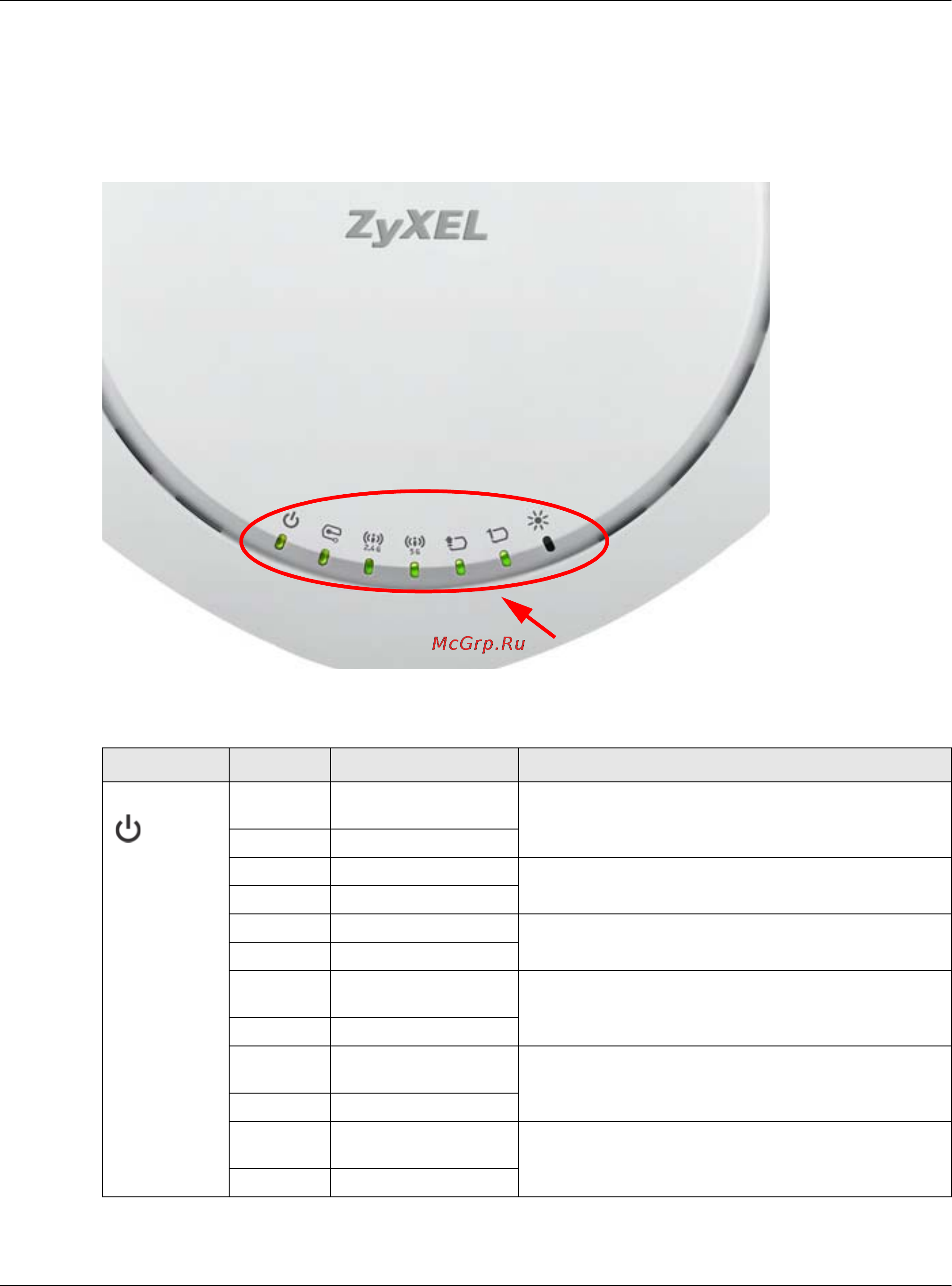

Figure 5 WAC6500 Series LEDs
The following table describes the LEDs.
Table 6 WAC6500 Series LEDs
LED COLOR STATUS DESCRIPTION
PWR/SYS Red Slow Blinking (On for
1s, Off for 1s)
The WAC is booting up.
Green On
Red Off The WAC is ready for use.
Green On
Red On There is system error and the WAC cannot boot up, or
the WAC suffered a system failure.
Green Off
Red Fast Blinking (on for
50ms, Off for 50ms)
The WAC is doing firmware upgrade.
Green Off
Red Slow Blinking (blink
for 3 times, Off for 3s)
The Uplink port is disconnected.
Green Off
Red Slow Blinking (blink
for 2 times, Off for 3s)
The wireless module of the WAC is disabled or failed.
Green Off
