Инструкция по эксплуатации Страница: 103

Lenovo thinkpad t540p, 20be0098rt Инструкция по эксплуатации онлайн [103/182] 157416

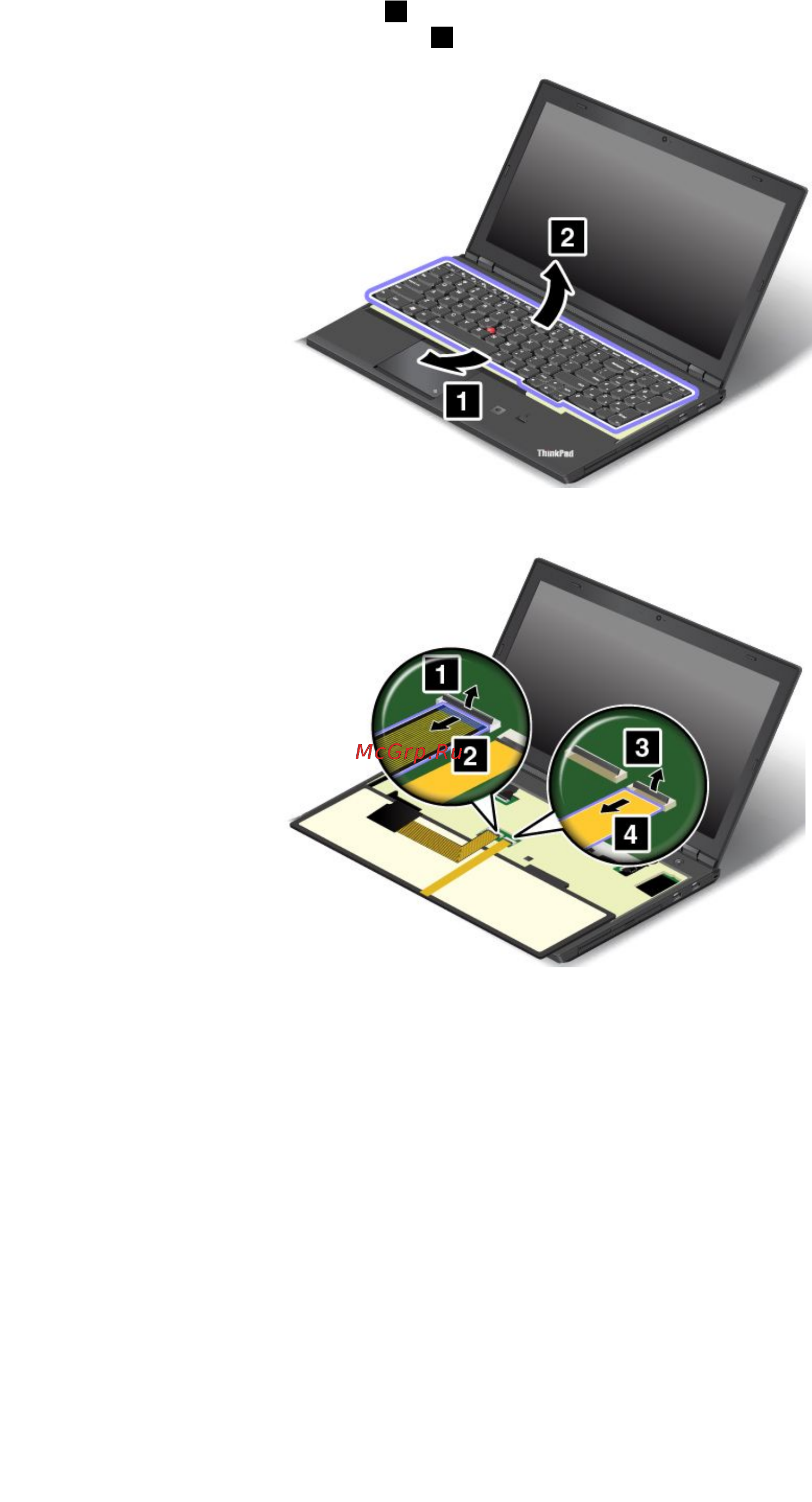

7.Pivotthekeyboardslightlyupward1untilyoucanseetheconnectorsonthebottomsideofthe

keyboard.Thenturnoverthekeyboard2.

8.Gentlyputthekeyboardonthepalmrestanddetachtheconnectors.Thenremovethekeyboard.

Installingthenewkeyboard

Toinstallthenewkeyboard,dothefollowing:

Chapter6.Replacingdevices87
