Инструкция по эксплуатации Страница: 104

Lenovo thinkpad t540p, 20be0098rt Инструкция по эксплуатации онлайн [104/182] 157416

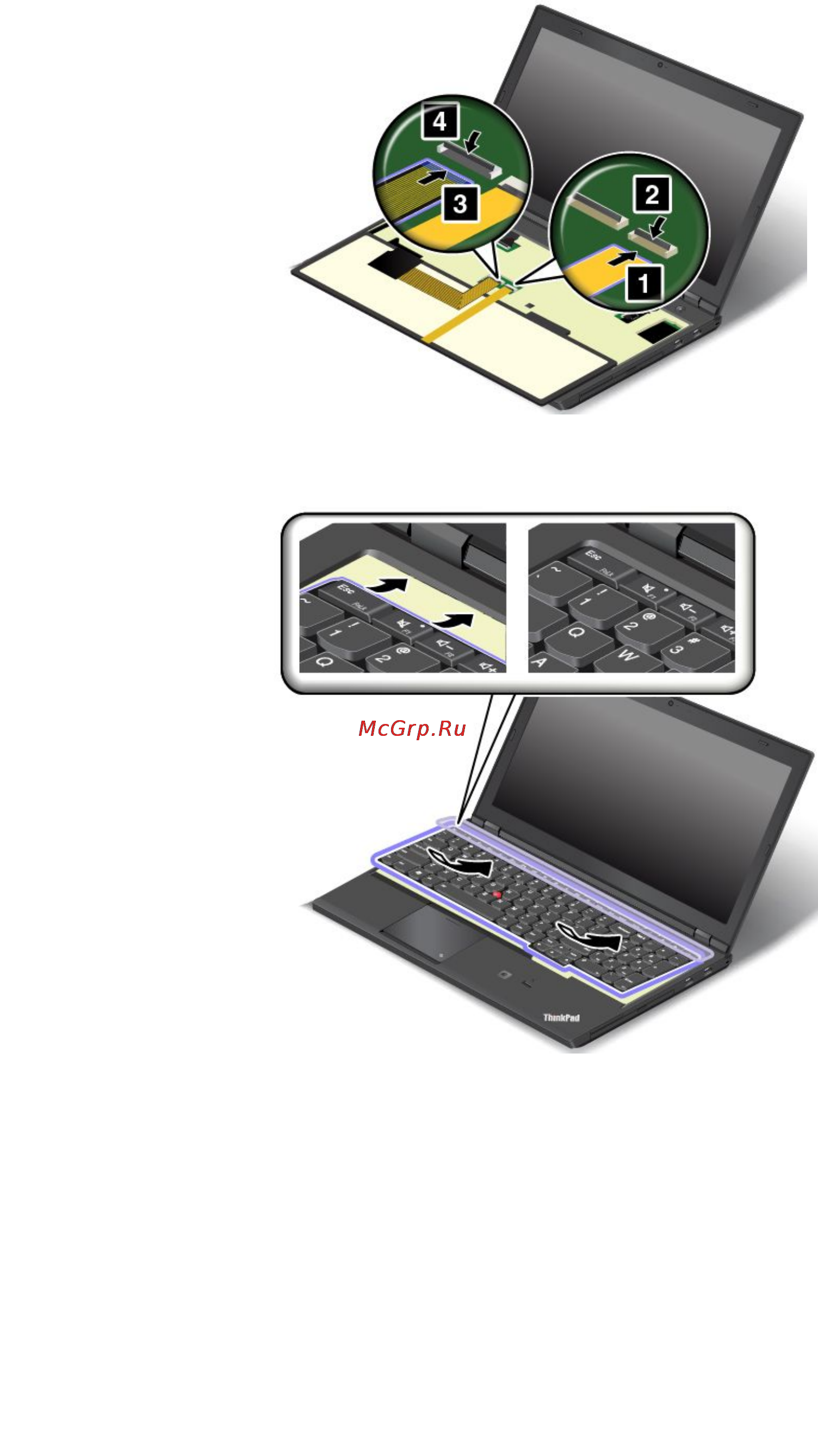

1.Attachtheconnectorsandthenturnoverthekeyboard.

2.Insertthekeyboardintothespaceundertheframeofthekeyboardbezelasshown.Ensurethatthe

frontedgeofthekeyboardisundertheframeofthekeyboardbezel.

88UserGuide
