Chapter 4-5
The mowing process – automatic and manual operation

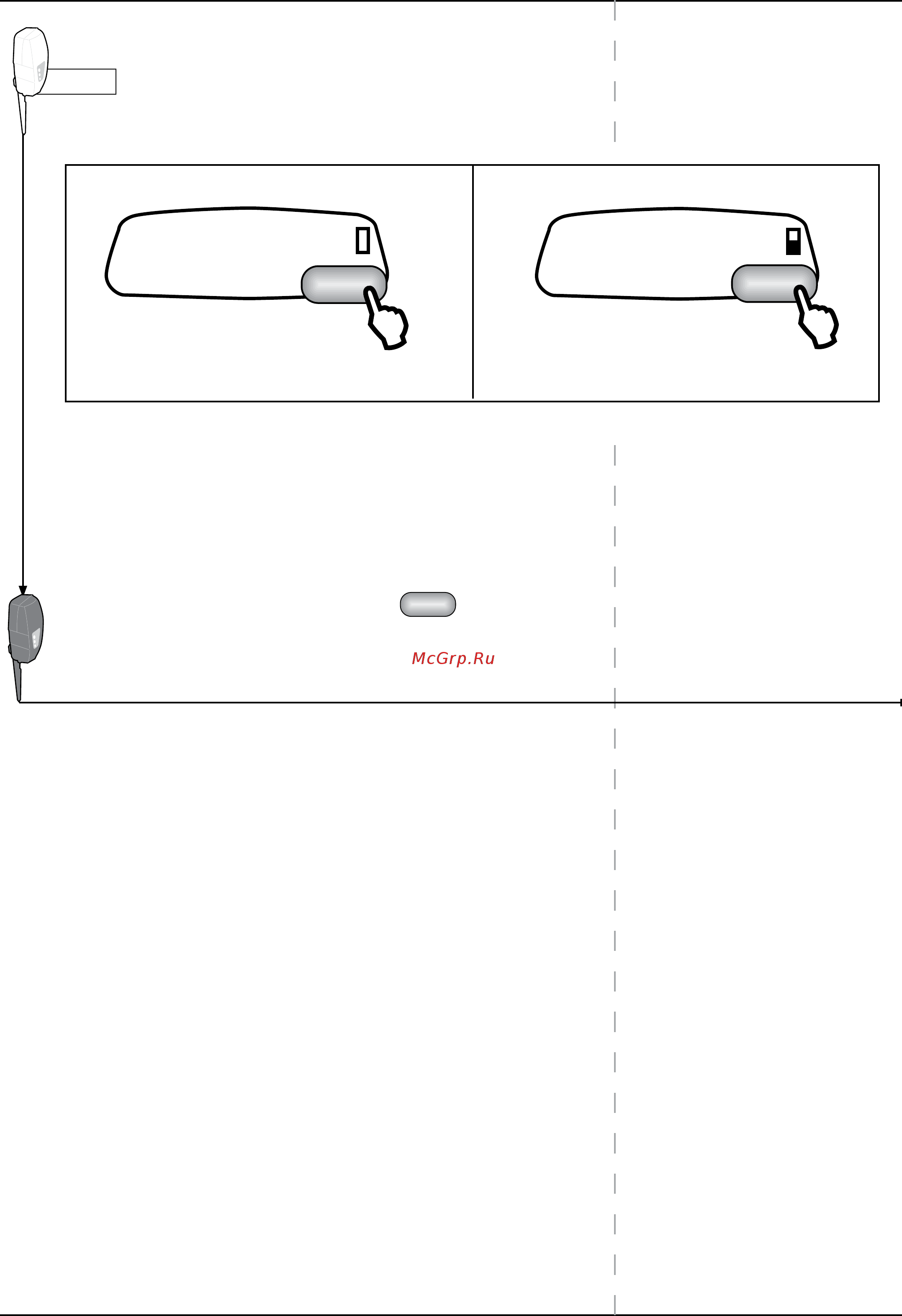

4.10 Completing the mowing (Non-Base Zone)
When Robomow completes the mowing phase, it stays on the lawn.
You will drive it out to its storing/charging station.
Display upon completion:
P If 20 minutes have passed after mowing is complete and if it was
not moved yet:
) The display screen will be turned off.
) Robomow will turn off into a sleep mode
As an energy saving feature, Robomow always gets into a sleep mode
after 20 minutes of inactivity.
P To wake Robomow up: either press
, or remove the
Manual Controller from its holder.
When mowing in a MAX mode When mowing in a Pre-set Time mode
