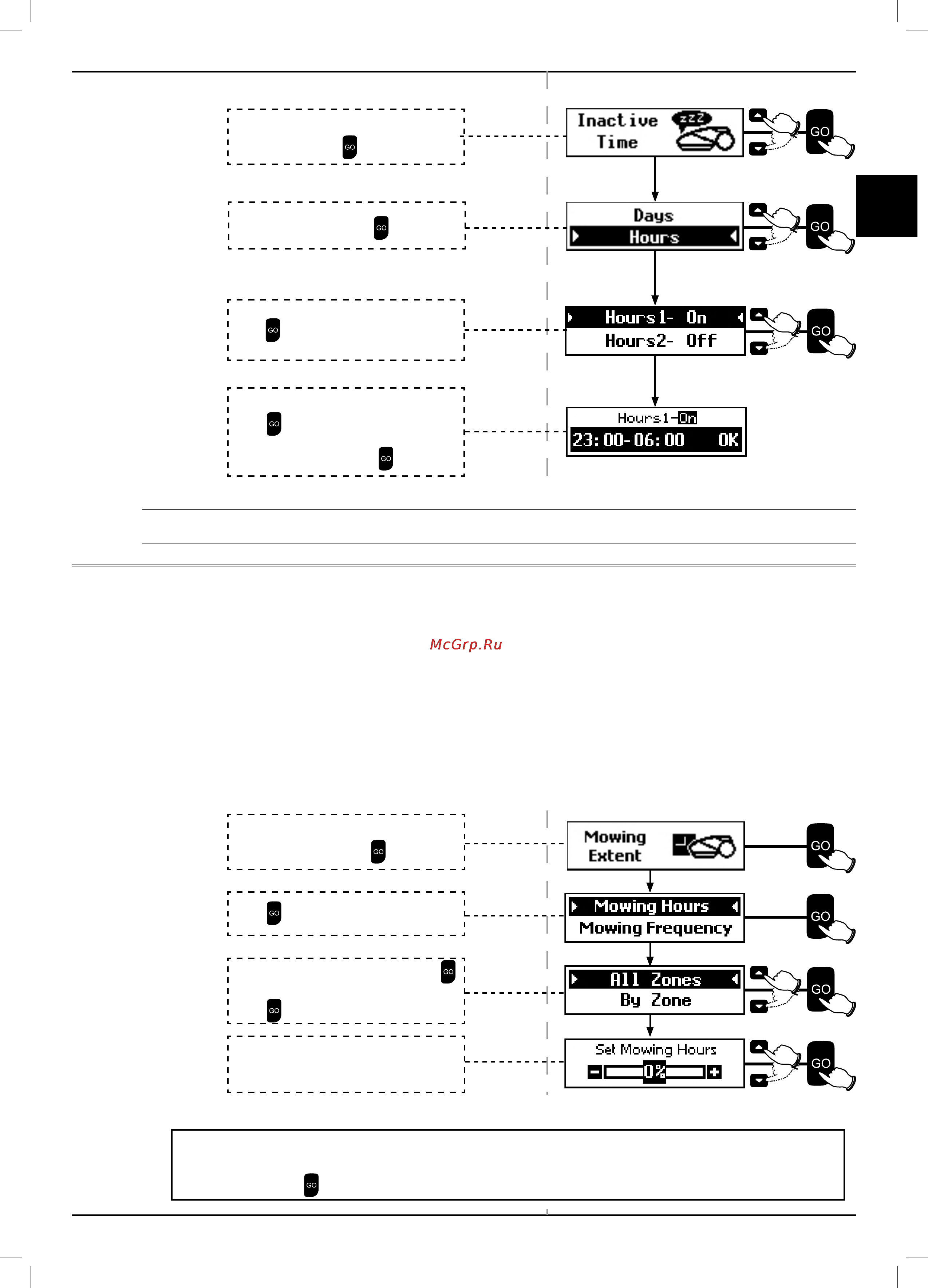

To select Inactive Hours:
4.3.2 Mowing Extent
4.3.2.1 Mowing Hours (%)
The ‘Mowing Hours (%)’ option controls the number of mowing hours (in %) needed to cover the lawn size.
P There are cases where the selected lawn area is not completely mowed and patches of uncut grass are visible.
P This can occur when the:
) Zone area set is smaller than the actual area of the lawn.
) Lawn shape is complex (shape, narrow passage, slopes and obstacles).
P If the zone area set is smaller then the actual area, change the Area settings (Lawn Options > Zone Edit > Area).
Otherwise, use the ‘Mowing Hours (%)’ option to increase the number of operations.
P To change the ‘Mowing Hours (%)’ follow these steps:
After Setting the Mowing Hours (%) one of the following messages will be displayed:
Robomow will not operate on the hours you have set. Inactive hours are the same for all days of the week.
If too many hours have been deactivated relative to your lawn size, Check Inactive Time message will be displayed.
Mowing Hours Updated: When the selected value was accepted.
Mowing Hours Limit (%): If the selected Mowing Hours (%) value is higher than the maximum allowed one for
the lawn area. Press
to set or to re-select.
Scroll to select Inactive Time from the Lawn
Options Menu. Press
.
Scroll to select Hours. Press
.
Scroll to select between 1
st
or 2
nd
time slot and
press .
You can deactivate up to 2 time slots.
Scroll to togle the inactive window On/Off.
Press
.
Set the start and end times for this time slot.
Scroll to select OK box. Press
.
Scroll to select Mowing Extent from the
Lawn Options menu. Press
.
Press
to select Mowing Hours (%).
Scroll to select All Zones / By Zone. Press
.
If By Zone is selected scroll to select Zone.
Press
Scroll to increase or decrease the Mowing
Hours (%) level. The default is 0% and can be
changed from -50% to +50%.
