DSL-584T ADSL Router User Guide

To configure a Static IP type connection for the WAN, follow these steps:

1. Choose the Static IP Address option from the WAN Settings pull-down menu.

2. Under the ATM VC Settings at the top of the window should not be changed unless you have been instructed to

change them. However, if you are instructed to change the VPI or VCI values, type in the values assigned for

your account. Leave the PVC and Virtual Circuit setting at the default (Pcv0 and Enabled) values for now. This

can be used later if you are configuring multiple virtual circuits for your ADSL service. For more information on

ATM VC Settings, see the table on page

32 below.

3. Under the Static IP heading, choose the Connection Type from the pull-down menu. This defines both the

connection type and encapsulation method used for your ADSL service. The available options are Bridged IP

LLC, Bridged IP VC-Mux, Routed IP LLC, Routed IP VC-Mux or IPoA. If have not been provided specific

information for the Connection Type setting, leave the default setting.

4. Change the IP Address, Subnet Mask, Gateway Address and (if available) Secondary DNS Server IP address

as instructed by your ISP. These are the global IP settings for the WAN interface. This is the “visible” IP address

of your account. Your ISP should have provided these IP settings to you. For IPoA (Classic IP over ATM)

connections you may need to type in an additional IP address for a ARP Server Address. If you are using an

IPoA connection, ask your ISP if it is necessary to use an ARP (Address Resolution Protocol) server.

5. Leave the MTU value at the default setting (default = 1400) unless you have specific reasons to change this (see

table below).

6. NAT should remain Enabled. If you disable NAT, you will not be able to use more than one computer for

Internet connections. NAT is enabled and disabled system-wide, therefore if you are using multiple virtual

connections, NAT will be disabled on all connections.

7. The Firewall should remain enabled for most users. If you choose to disable this you will not be able to use the

features configured in the Firewall Configuration and Filters window located in the Advanced directory. See

the next chapter for more details on these windows.

8. Most users will not need to change ATM settings. If this is the first time you are setting up the ADSL connection

it is recommended that you leave the Service Category settings at the default values until you have established

the connection. See the table on page

29 for a description of the parameters available for ATM traffic shaping.

9. When you are satisfied that all the WAN settings are configured correctly, click on the Apply button.

10. The new settings must be saved and the Router must be restarted for the settings to go into effect. To save and

reboot the Router, click on the Tools directory tab and then click the System button. In the System Settings

window, click the Save and Reboot button under Save Settings and Reboot the System.

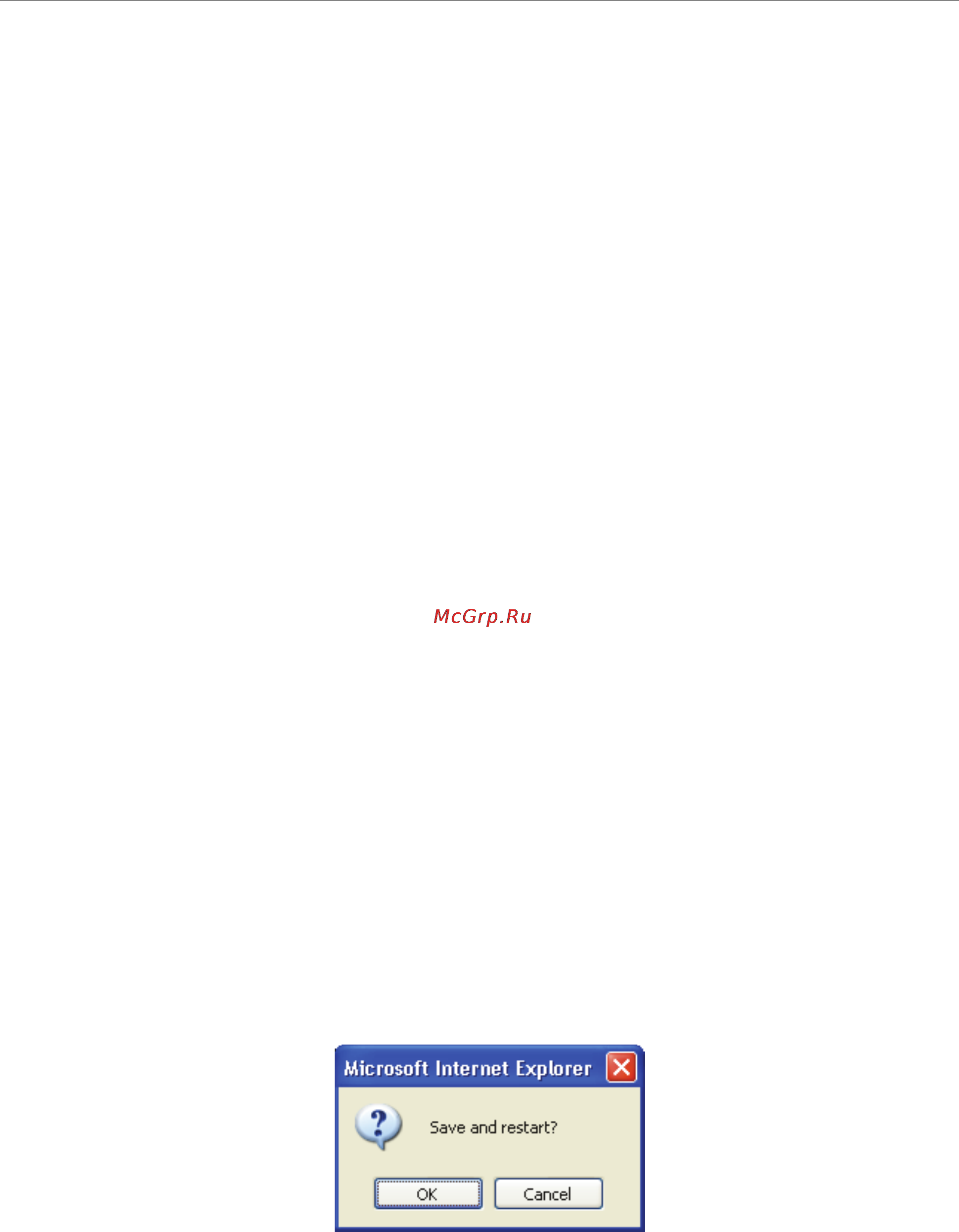

11. Click OK when the following “Save and restart?” dialog box opens.

12. The Router will save the new settings and restart. Upon restarting the Router will automatically establish the

WAN connection.

Additional settings for Static IP Address connections:
