DSL-584T ADSL Router User Guide
Log Settings, System Settings, Firmware Upgrade, Miscellaneous
Configuration, and Diagnostic Test windows.
Status
Click the Status tab to view the Device Information, DHCP Clients, View
Log, Traffic Statistics, and ADSL Status windows.
Help
The Help window presents links to pages that explain various functions and
services provided by the Router.
UPnP
UPnP supports zero-configuration networking and automatic discovery for many types of networked devices. When
enabled, it allows other devices that support UPnP to dynamically join a network, obtain an IP address, convey its
capabilities, and learn about the presence and capabilities of other devices. DHCP and DNS service can also be used if
available on the network. UPnP also allows supported devices to leave a network automatically without adverse effects
to the device or other devices on the network.
UPnP is a protocol supported by diverse networking media including Ethernet, Firewire, phone line, and power line
networking.

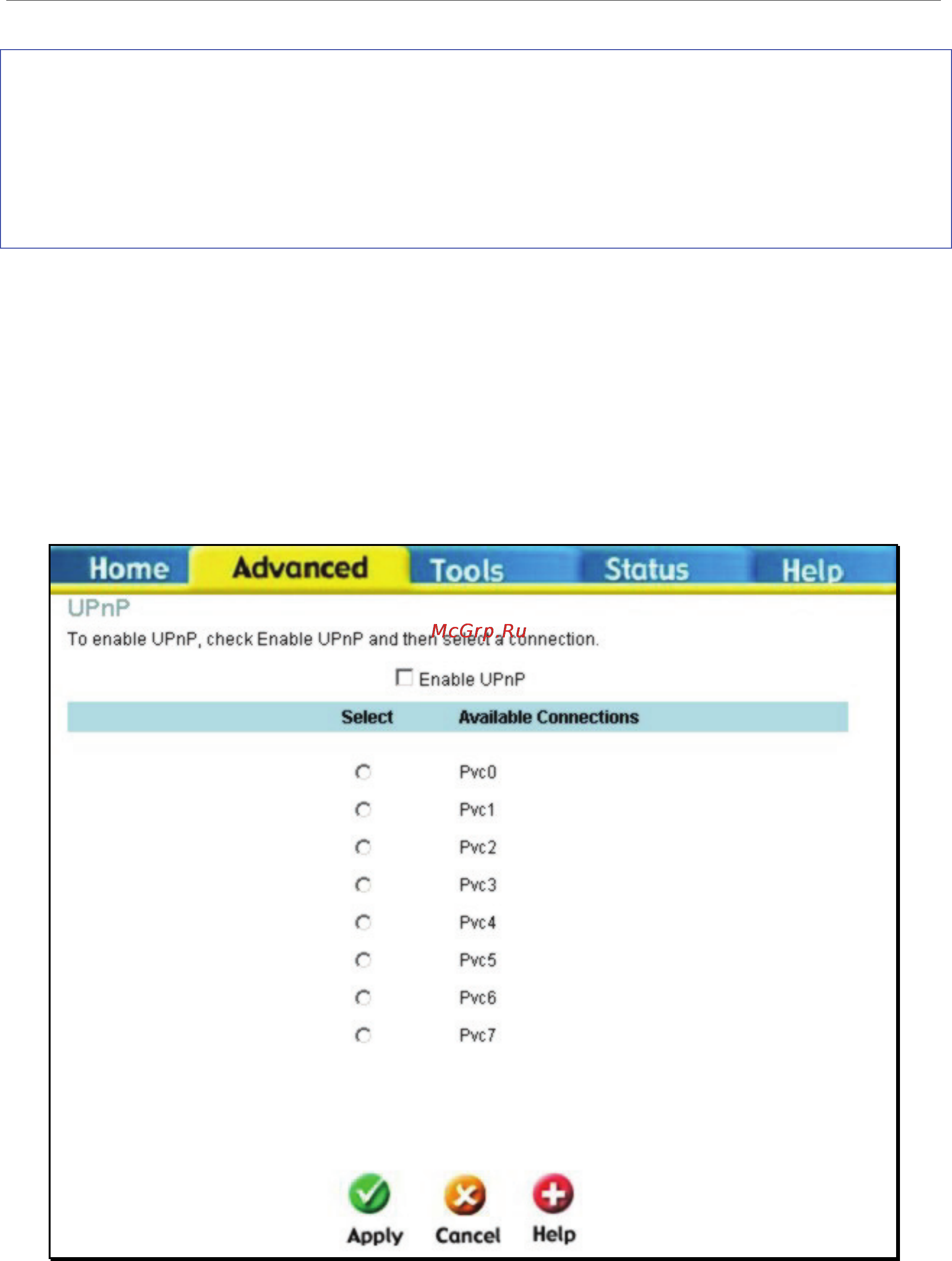

UPnP window
8
