MSI z97 gaming 7 [41/114] Chapter 1

Chapter 1

1-27 Getting Started

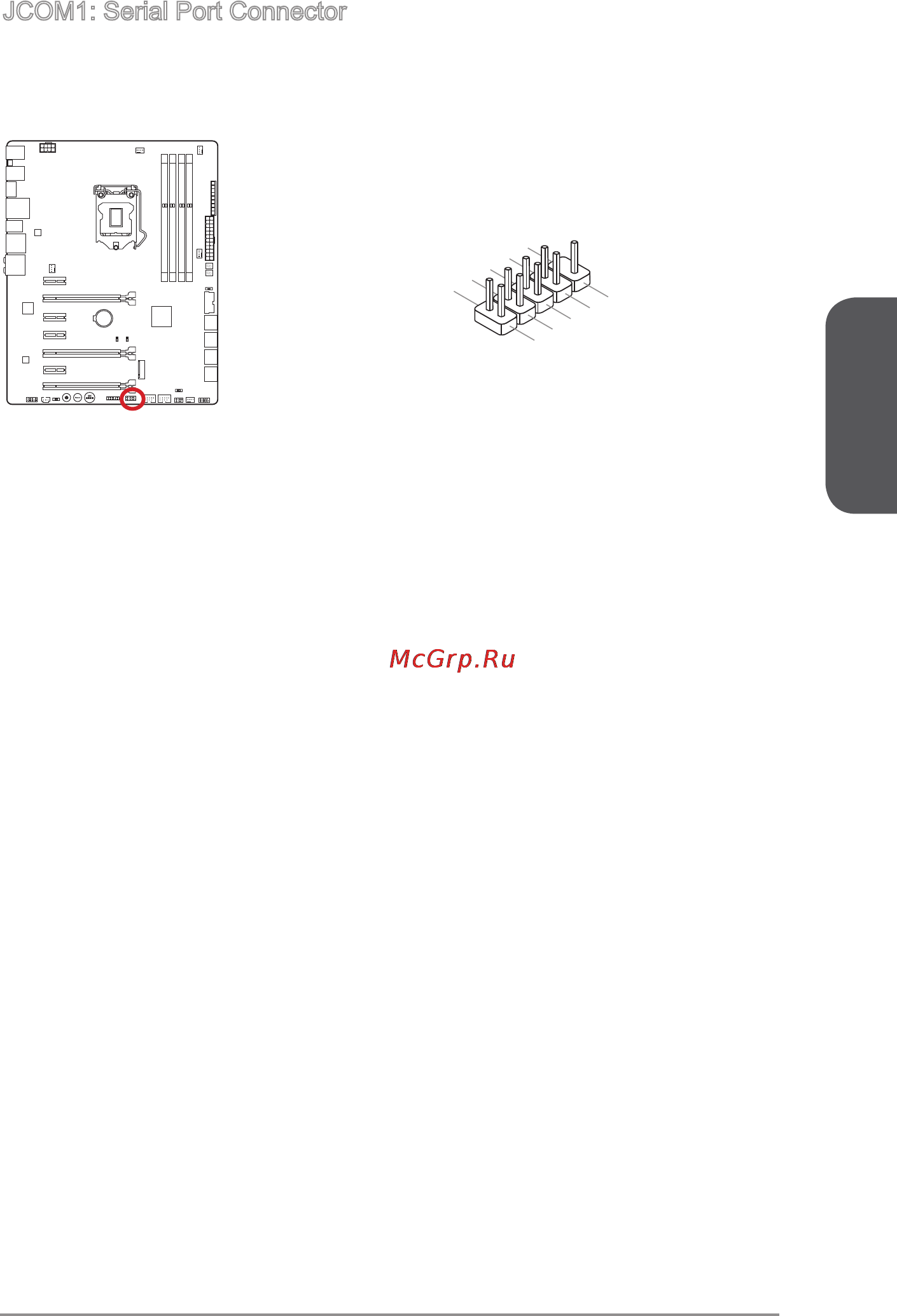

JCOM1: Serial Port Connector

This connector is a 16550A high speed communication port that sends/receives 16

bytes FIFOs. You can attach a serial device.
