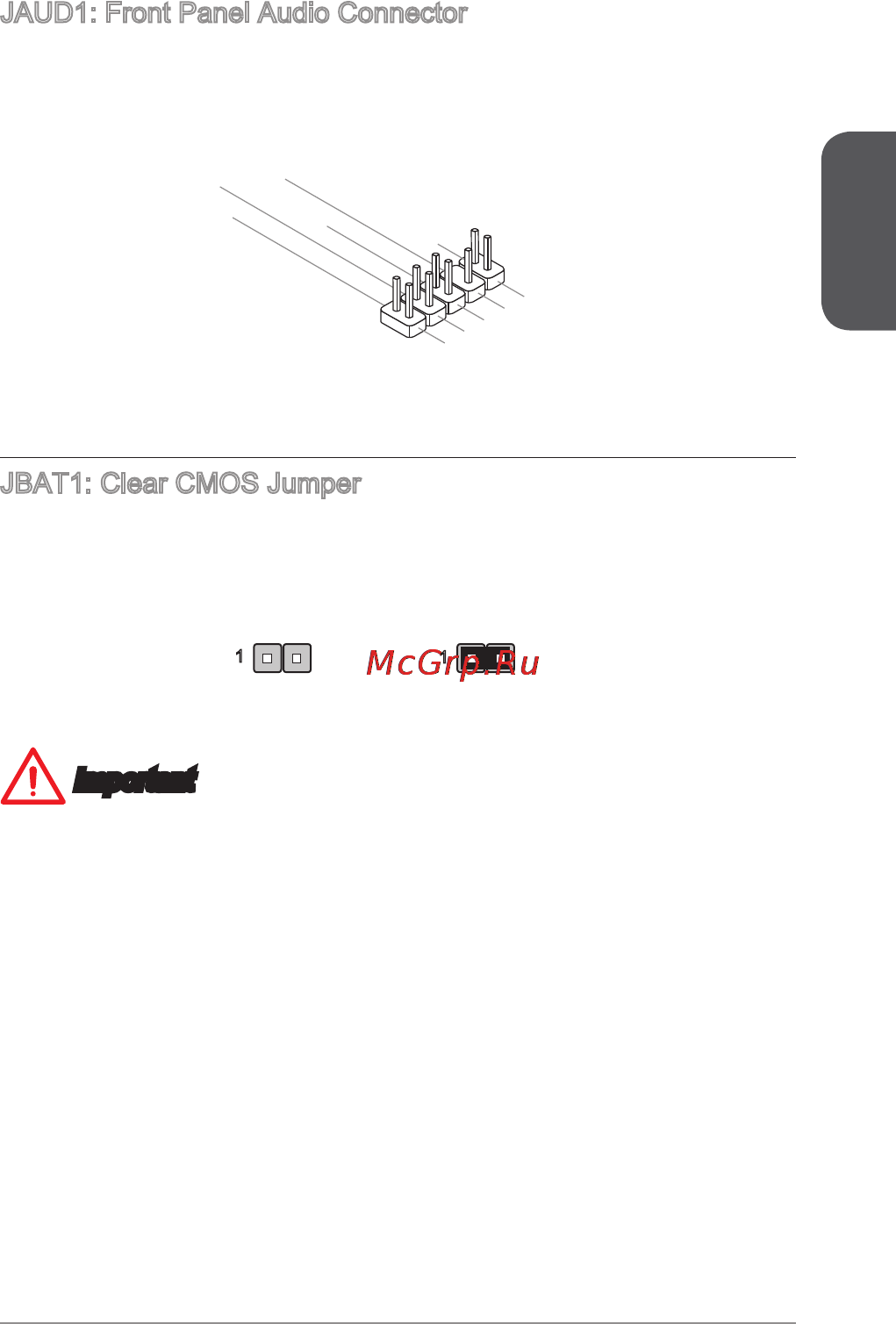

JAUD1: Front Panel Audio Connector

This connector allows you to connect the front audio panel located on your computer

case. This connector is compliant with the Intel

Front Panel I/O Connectivity Design

Guide.

1.MIC L

3.MIC R

10.Head

Phone Detection

5.Head Phone

7.SENSE_SEN

9.Head Phone

8.No Pin

6.MIC Detection

4.NC

.Ground

JBAT1: Clear CMOS Jumper

There is CMOS RAM onboard that is external powered from a battery located on the

motherboard to save system conguration data. With the CMOS RAM, the system

can automatically boot into the operating system (OS) every time it is turned on. If

you want to clear the system conguration, set the jumpers to clear the CMOS RAM.

Keep Data Clear Data

Important

You can clear the CMOS RAM by shorting this jumper while the system is o.

Afterwards, open the jumper . Do not clear the CMOS RAM while the system is on

because it will damage the motherboard.
