1
Unpacking
Unpacking
Thank you for buying the MSI
®
H170A PC MATE/ B150 PC MATE motherboard.

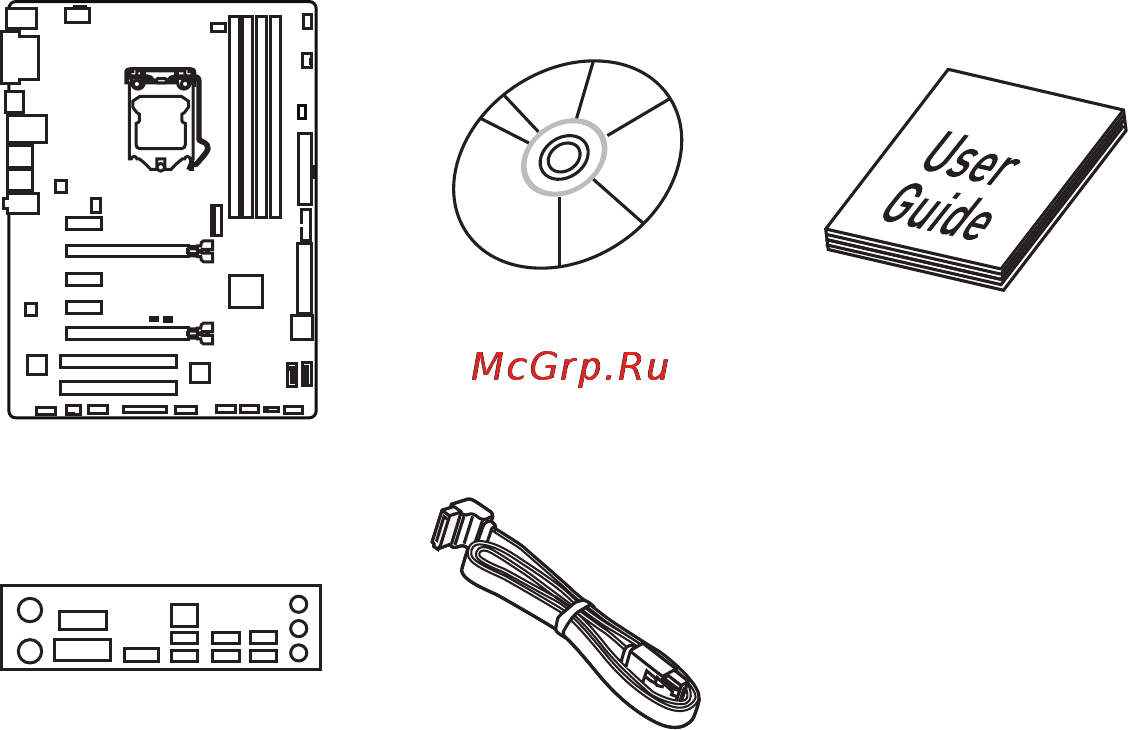

Check to make sure your motherboard box contains the following items. If something
is missing, contact your dealer as soon as possible.
SATA Cable x2
Drivers & Utilities
Disc
Motherboard User
Guide
I/O Shield
Motherboard
