Changing the computer configuration
Pressing the MENU button in the measurement screen switches to the menu screen.
In the menu screen, you can view and delete the files saved, and view and change various
configurations.
* Use the M1/+ and M2/- to change menu items.
* After changes are made, be sure to review the setting(s) and confirm by pressing the MENU button.
* Leaving the menu screen without any operation for 2 minutes returns to the measurement screen,
and changes are not saved.

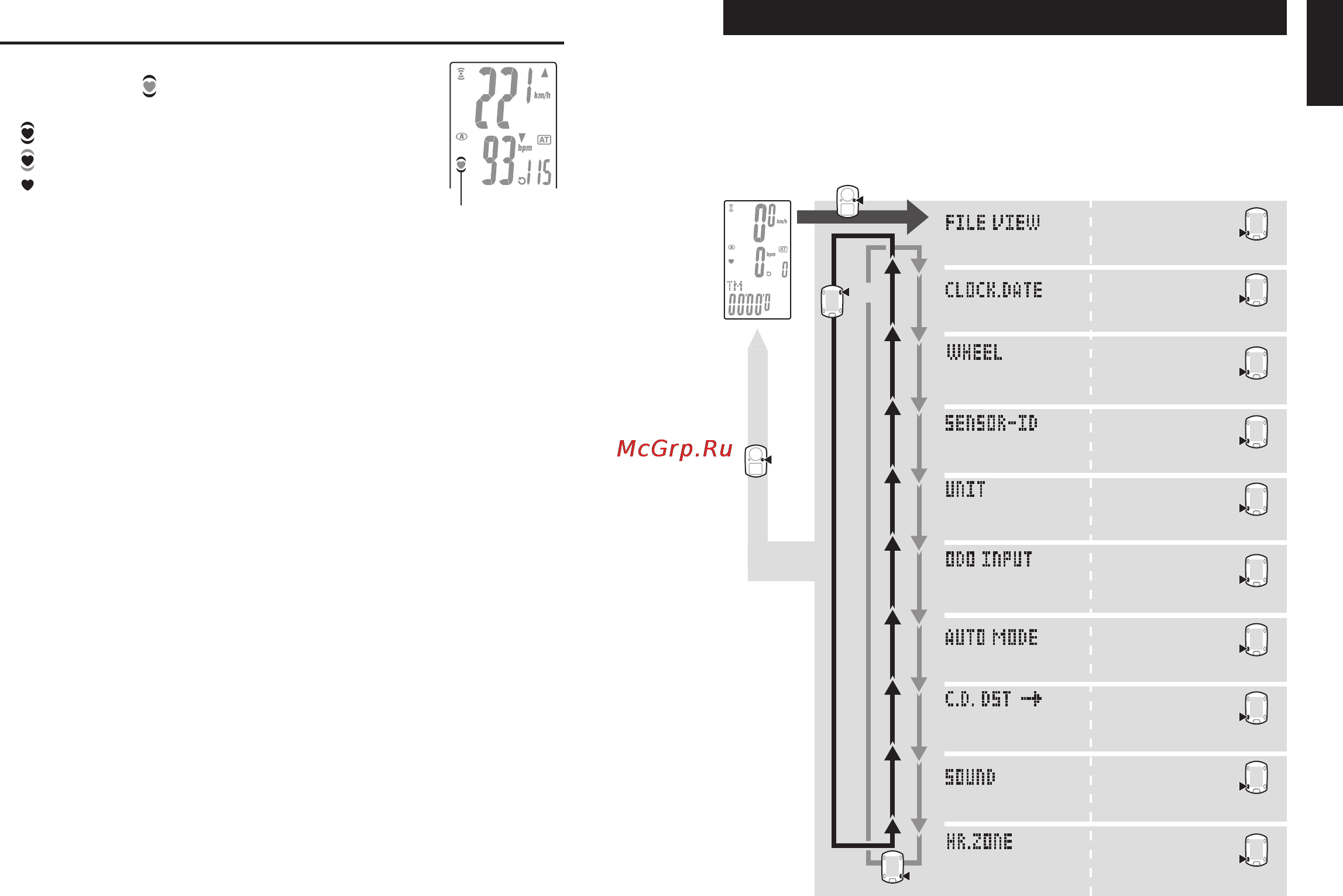

Menu top screen
Measurement
screen
Viewing and de-
leting files
(page 24)
Changing the clock/
date
(page 28)
Selecting wheel and
changing the tire cir-
cumference
(page 29)
Synchronizing the
heart rate and speed/
cadence sensor ID.
(page 29)
Changing the mea-
surement unit
(page 31)
Total distance in-
put
(page 31)
On/off of the auto-
mode
(page 32)
Countdown dis-
tance input
(page 32)
On/off of the HR
alarm, and button
operation sound
(page 33)
Selecting the zone,
and changing the
upper/lower limit
(page 34)
(Back)
(Back)
File view
M1/+
MENU
MENU
SSE
SSE
SSE
SSE
SSE
SSE
SSE
SSE
SSE
SSE
M2/-
Target heart rate
zone
Target heart rate zone
During measurement, on the screen displays the target heart rate
status.
(constant) : The target zone is set to any of HR.ZONE:1 to 4.
(flashing) : The current heart rate is out of the selected zone.
(off) : The target zone is set to off.
* The target heart rate zone is set from the menu screen “Setting
the target heart rate zone” (page 34).
