Инструкция по эксплуатации Страница: 222

Nikon 1 s2 kit 11-27.5mm white Инструкция по эксплуатации онлайн [222/236] 160362

202

Supplied Accessories

• 40.5 mm snap-on Front Lens Cap LC-N40.5 (for use with the 1 NIKKOR

11–27.5mm f/3.5–5.6)

• Rear Lens Cap LF-N1000

Optional Accessories

• 40.5 mm screw-on filters (for use with the 1 NIKKOR 11–27.5mm

f/3.5–5.6)

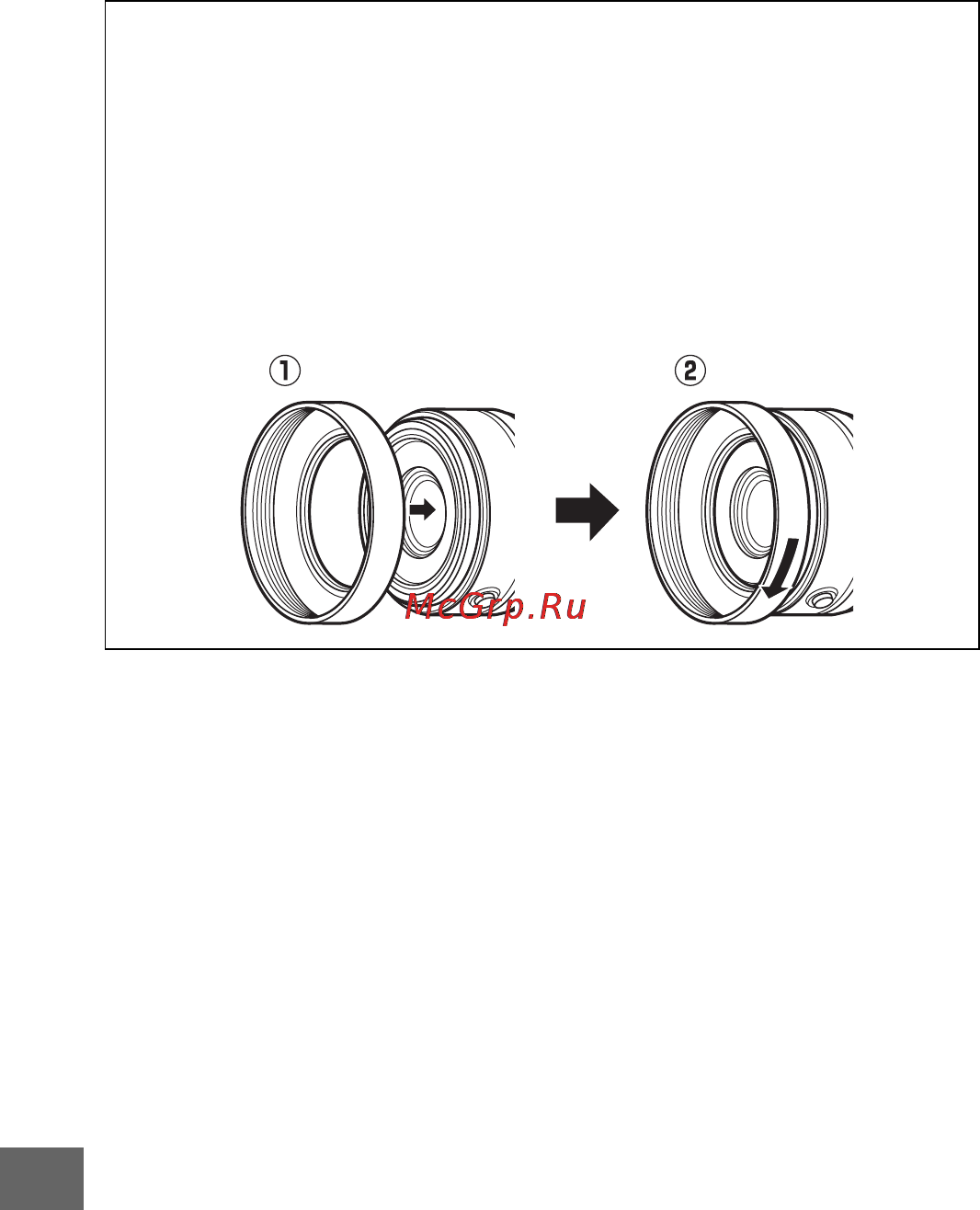

• 40.5 mm screw-on Hood HN-N102 (for use with the 1 NIKKOR

11–27.5mm f/3.5–5.6; attaches as shown below)
