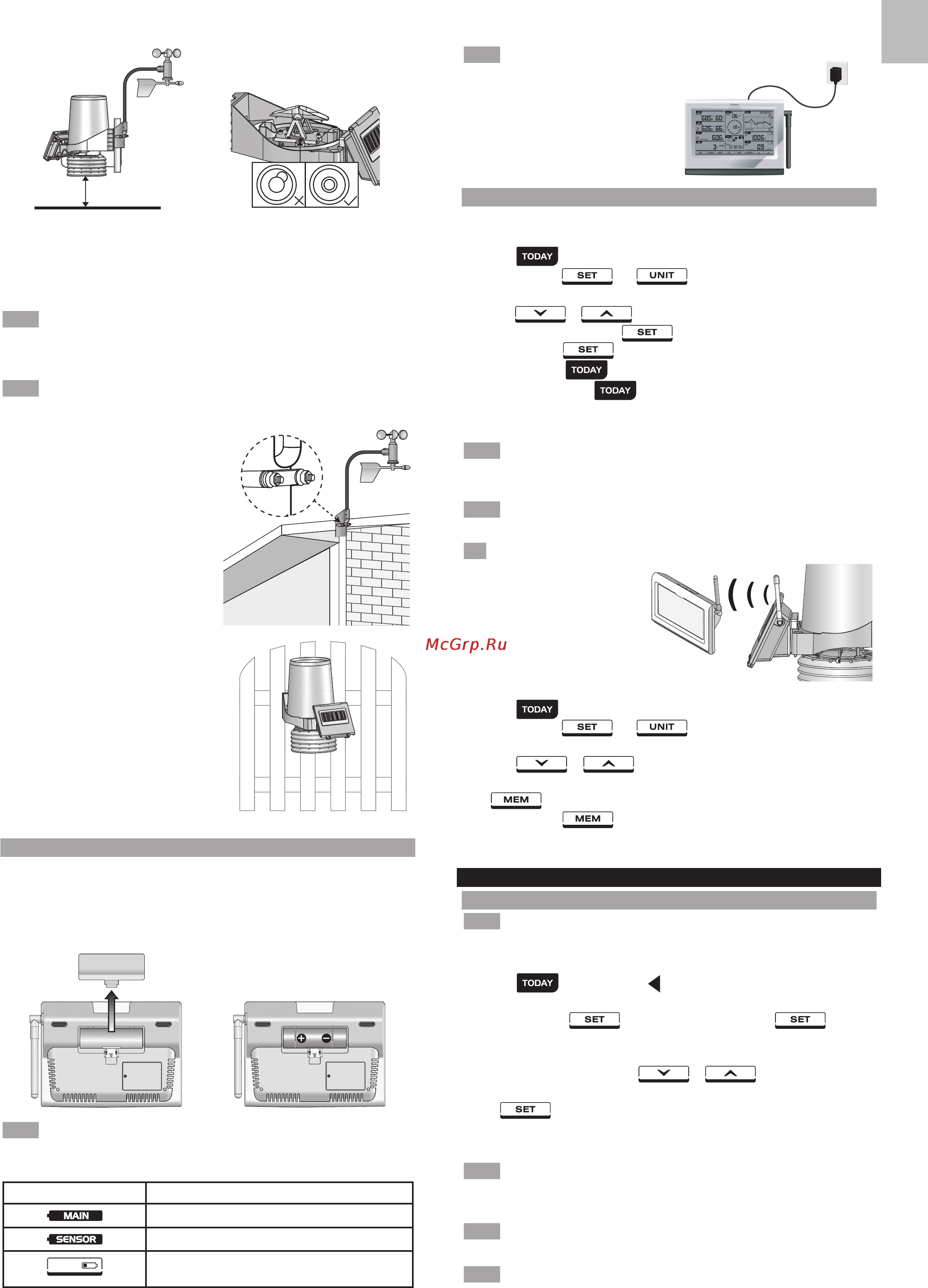

7
EN
1.5M
7. Follow the instructions in sections of Cable Connections, Transmitter Box-
Battery Installation and Channel Setting.
8. Securely locate the pole in your desired outdoor area.
9. Route the excessive cables neatly by using the provided cable ties.
NOTE
6 meters wind sensor cable is provided for you to locate the wind sensor
separately from the pole like in Option 2 and Option 3. Route the excessive
cables if necessary.
NOTE
Put the plastic debris filter into the rain collector. Please check the filter
regularly and ensure it is not fully covered by the leaves or other objects.
Option 2: Wind sensor is installed
separately; other sensors with transmitter
box are installed on a pole.
1. Follow the steps 3-4 in Option 1 to
install the temperature/hygro sensor
and rain sensor on a pole.
2. Insert the Type A screws into the wind
sensor. Securely screw them into your
desired location using wrench.
3. Follow the steps 7-9 in Option 1 to
complete the installation.
Option 3: Excepting wind sensor is
installed on a pole; other sensors with
transmitter box are installed separately.
1. Follow the steps 5-6 in Option 1 to install
the wind sensor on a pole.
2. Insert the Type A screws into the rain
gauge. Securely screw them into your
desired location using wrench.
3. Follow the steps 7-9 in Option 1 to
complete the installation.
MAIN UNIT-BATTERIES INSTALLATION
To insert batteries:
1. Remove the battery compartment cover.
2. Insert the supplied batteries in the compartment, matching the polarities (+ / -).
3. Press RESET in the compartment.
4. Close the battery compartment cover.
NOTE
Do not use rechargeable batteries. It is recommended that you use alkaline
batteries with this product for longer performance.
Low battery indicators:
Icon Meaning
Main unit batteries low
Transmitter box(es) batteries low
Transmitter box(es) / main unit batteries low
For continuous use, install the power adapter. The batteries are for back-up use only.
Plug the power adapter into an electrical outlet not controlled by a wall switch.
Power Adapter
NOTE
The power adapter is intended
to be correctly oriented in a vertical or
floor mount position. The prongs are not
designed to hold the plug in place if it is
plugged into a ceiling, under-the-table or
cabinet outlet.
PAIRING SENSORS / REMOVE SENSORS
To pair a sensor:
1. The SW4 pairing switch in transmitter box is set to 1 (ON).
2. Press
area.
3. Press and hold
and at a time until you enter sensor setup
mode. (All sensor readings disappear on the screen,
- - displays on the screen.)
4.
Press or to select the channel you want to add the sensor.
The channel in dash mode (
displays) is available for pairing a sensor.
5. Press and hold
for 2 seconds. There is a beep. Press anywhere on
the panel not in area.
6. SEARCH indicator in area flashes to do pairing.
7. When
SEARCH disappears and the selected channel of sensor displays the
weather reading on the screen, the pairing is complete and successful.
NOTE
The main unit searches the sensor for about 10 minutes. Please complete
the pairing within an hour after you switch on the pairing switch in the transmitter box.
Otherwise, you need to turn off the pairing switch, and then switch it on again.
NOTE
Make sure you calibrate the direction of wind vane on the wind sensor after
adding sensors, see Direction Calibration for details.
TIP
The transmission range may vary depending on many factors. You may
need to experiment with various
locations to get the best results.
Make the antenna of the transmitter
box and the one on the main unit
be paralleled to get a better pairing
performance.
To remove a sensor:
1. Press
area.
2. Press and hold
and at a time until you enter sensor setup
mode. (The weather reading disappears on the screen, - - displays on the screen).
3. Press
or to select the channel of the sensor you want to
remove. You can only remove the sensor that the reading is not in dash mode
( displays).
4. Press and hold
for at least 2 seconds. There is a beep and then the
screen shows - -, the sensor is successfully removed from the main unit.
CLOCK
MANUALLY SET CLOCK
NOTE
To set the clock/calendar manually, disable the clock signal reception first
(see To Enable / Disable signal reception).
To manually set the clock / calendar:
1. Press
area to activate. displays next to the area and the tool bar
displays at the below of the screen.
2. Press and hold
on the tool bar, then toggle between
time zone offset, day time saving options, 12/24 hr format, hour, minute, year,
day/month format, month, day, weekday, language, latitude and longitude .
3. Once in desired setting, press
or to change the settings.
4. Press:
• to confirm and continue to next setting
OR
• Touch panel area (except tool bar) to confirm and exit.
NOTE
For WMR 300, the range of time zone offset is between -12 and +12. You
should manually input the time zone of your location, please check your local
weather observatory for detail. For example, Hong Kong should be set to +8.
NOTE
The language options are English (E), Russian (R), Spanish (S), Italian (I),
German (D) and French (F).
NOTE
You need to input latitude and longitude of your location. Please refer to
your local weather observatory website. The latitude and longitude input affects
the sunrise/sunset time.
