Instructions for the User
26
7. OPERATION

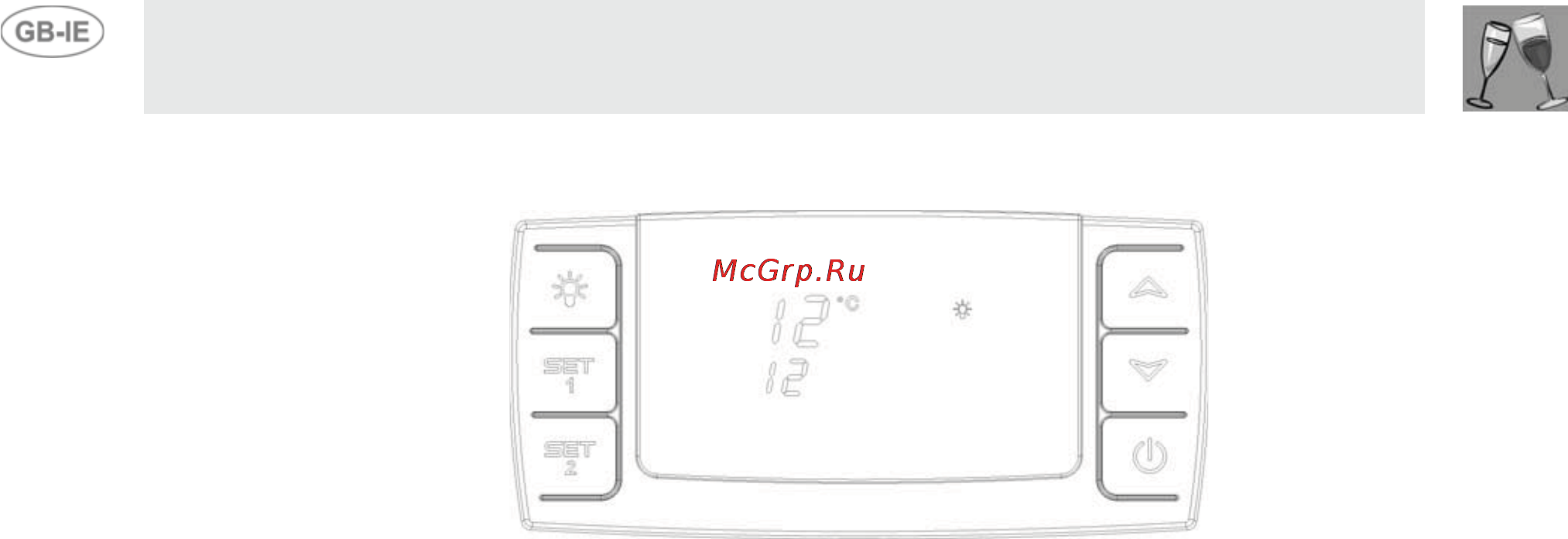

7.1 Electronic control
The electronic control ensures that the temperatures set at the top and at the bottom of the appliance
are maintained. This is achieved by means of an advanced control of the refrigeration system, the
heating element, and the fan. The set temperature will be stored in the event of power failure.
The electronic control has the following functions:
- On/off switch
- Light switch*
- Temperature setting
- Temperature indication
- Alarm for too high and too low temperatures
* The light may either be turned on constantly or only when the door is open.
7.2 Temperature indication
The display shows the actual temperature. The upper digits of the display indicate the temperature at the
top of the appliance, and the lower digits of the display indicate the temperature at the bottom of the
appliance.
The temperature indicator is equipped with a built-in filter which simulates the actual temperature in the
bottles. Consequently, the indicator does not react on short-term fluctuations of the air temperature.
7.3 Temperature setting
The thermostat is equipped with a child lock device. This device is activated by pushing the “up and
down” buttons simultaneously. After approx. 3 seconds “Pof” flashes in the display. Then the actual
temperatures are shown as usual. In addition, the set temperatures can be shown by pushing SET1 and
SET2, respectively.
The child lock device is cancelled by pushing the “up and down” buttons simultaneously.
After approx. 3 seconds “Pon” flashes in the display, and the temperature can be set.
7.4 Temperature setting at the top of the appliance
Push SET1. Then the temperature at the top of the appliance can be adjusted up and down by means of
the “up and down” buttons.
The temperature can be adjusted from 8 to 22°C, however so that the temperature cannot be set at a
lower temperature than the actual set point for the bottom temperature sensor.
7.5 Temperature setting at the bottom of the appliance
Push SET2. Then the temperature at the bottom of the appliance can be adjusted up and down by
means of the “up and down” buttons. The temperature can be adjusted from 5 to 22°C, however so that
the temperature cannot be set at a higher temperature than the actual set point for the upper
temperature sensor.
