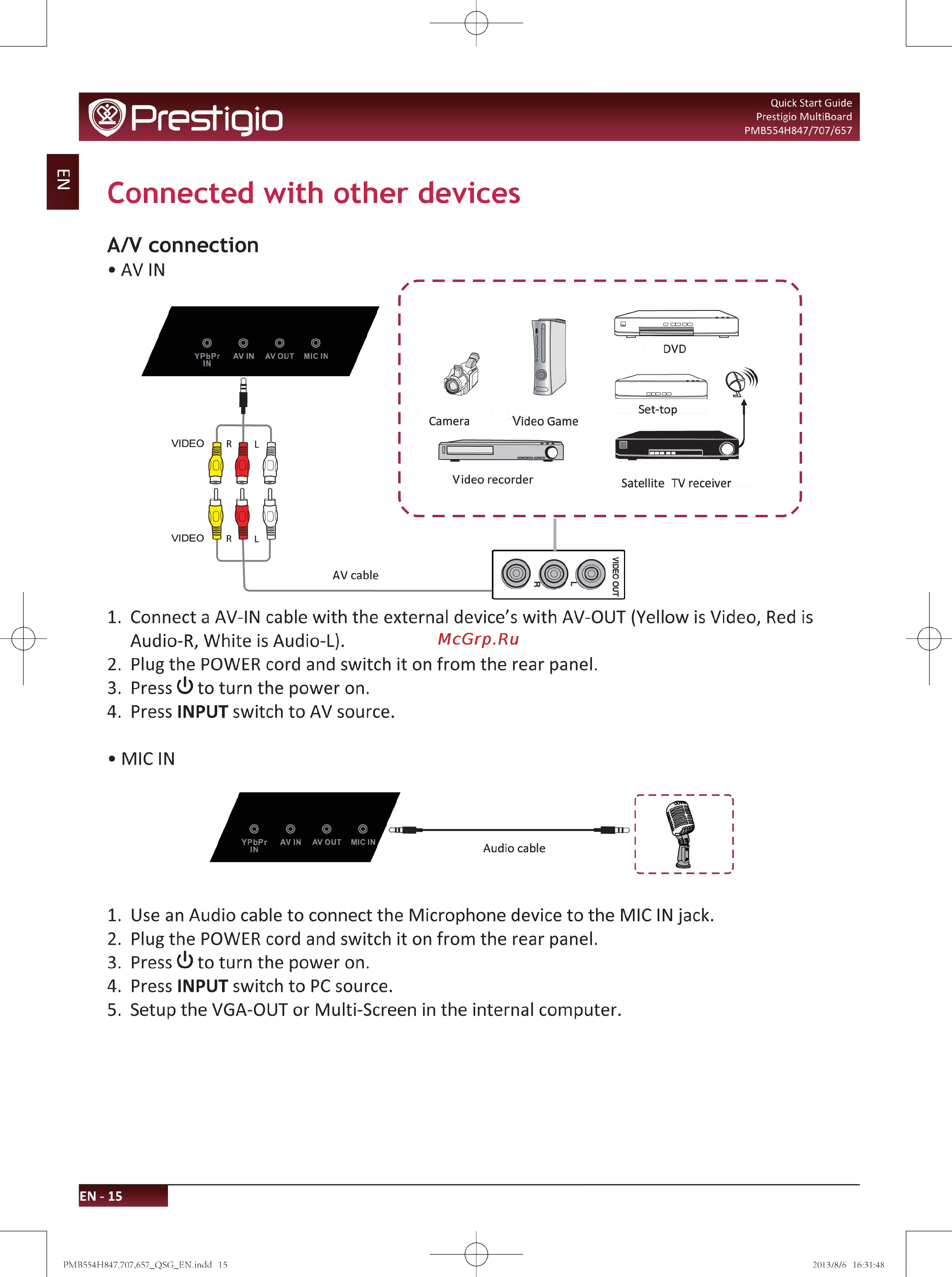

Quick Start Guide Prestigio MultiBoard PMB554H847 707 657 Prestigio Connected with other devices A V connection AVIN 1 Connect a AV IN cable with the external device s with AV OUT Yellow is Video Red is Audio R White is Audio L 2 Plug the POWER cord and switch it on from the rear panel 3 Press Oto turn the power on 4 Press INPUT switch to AV source MIC IN YPbPr IN AV OUT 1 Use an Audio cable to connect the Microphone device to the MIC IN jack 2 Plug the POWER cord and switch it on from the rear panel 3 Press Oto turn the power on 4 Press INPUT switch to PC source 5 Setup the VGA OUT or Multi Screen in the internal computer EN 15
