150Mbps Wireless N ADSL2+ Modem Router User Guide

Figure 4-20 Рис. 4-3

Click any of them, and you will be able to configure the corresponding function. Нажмите любое

из них для настройки соответствующих функций.

4.3.1 Internet Internet

Choose “Interface Setup→Internet” menu, you can configure the parameters for WAN ports in

the next screen (shown in Figure 4 -21). Выбрав меню “Interface Setup→Internet”

(«Настройка интерфейса→Интернет»), вы сможете настроить параметры для портов

WAN (как показано на рис. 4-4).

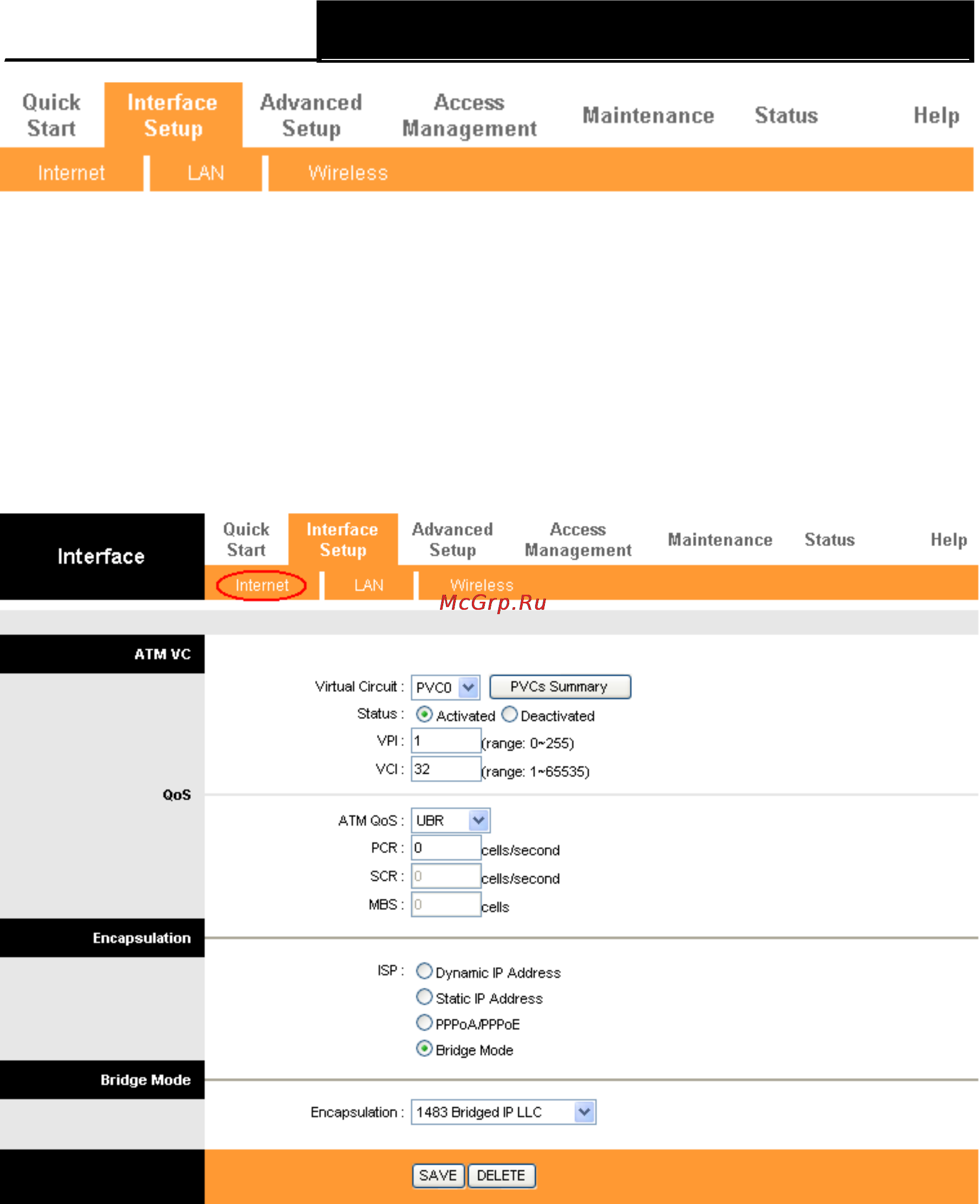

Figure 4-21 Рис. 4-4

 ATM VC: ATM settings are used to connect to your ISP. Your ISP provides VPI (Virtual Path

Identifier), VCI (Virtual Channel Identifier) settings to you. In this Device, you can totally

setup 8 VCs on different encapsulations, if you apply 8 different virtual circuits from your ISP.

You need to activate the VC to take effect. For PVCs management, you can use ATM QoS

to setup each PVC traffic line's priority.

• Virtual Circuit: Select the VC number you want to setup, PVC0~PVC7.

• Status: If you want to use a designed VC, you should activate it.

• VPI: Identifies the virtual path between endpoints in an ATM network. The valid range is

from 0 to 255. Please input the value provided by your ISP.

• VCI: Identifies the virtual channel endpoints in an ATM network. The valid range is from

32 to 65535 (1 to 31 is reserved for well-known protocols). Please input the value
