TD-W8151N

150Mbps Wireless N ADSL2+ Modem Router User Guide

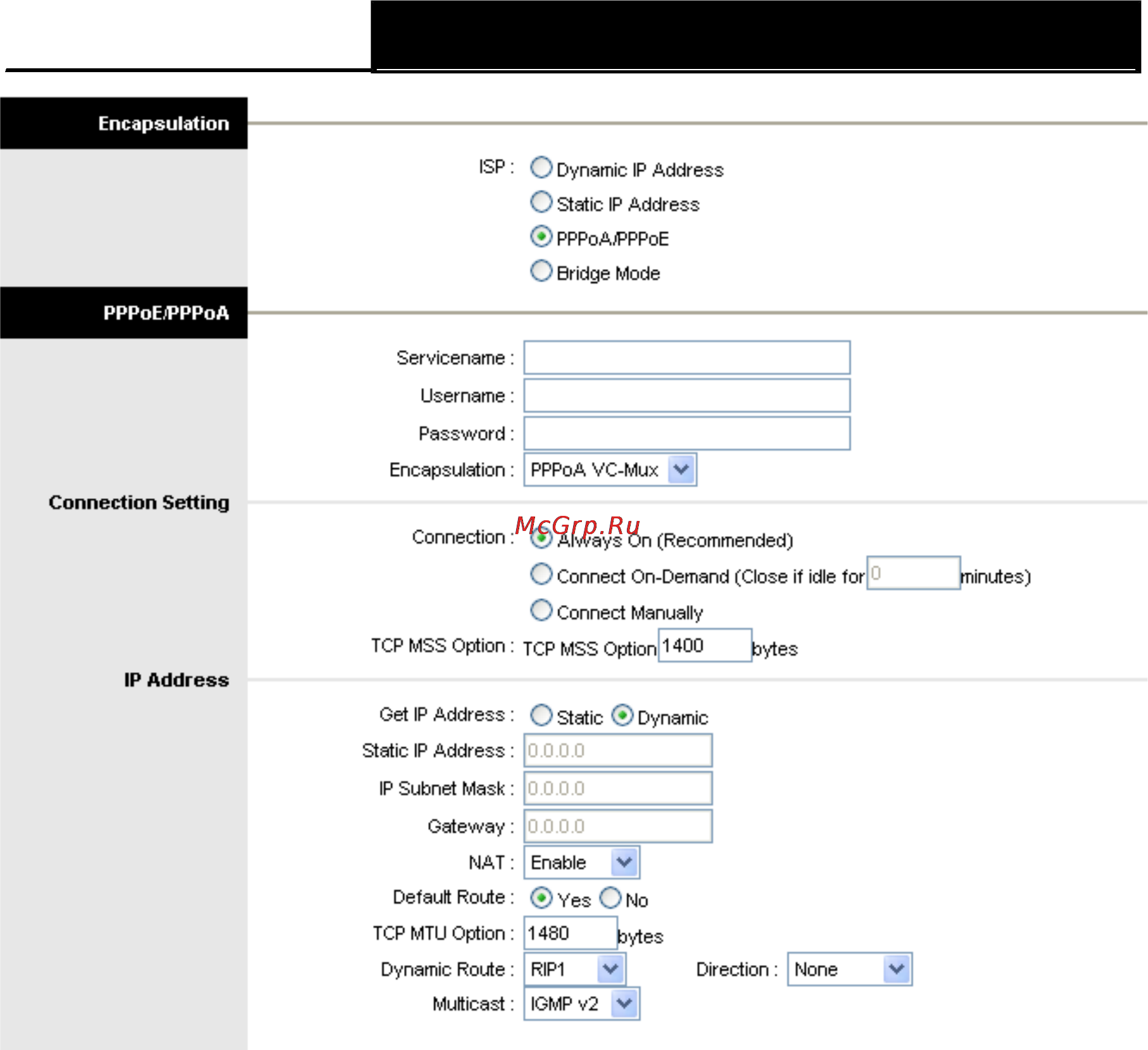

Figure 4-24 Рис. 4-7

 Servicename: Enter a name to mark current connection, or you can leave it blank.

 Username: Enter your username for your PPPoE/PPPoA connection.

 Password: Enter your password for your PPPoE/PPPoA connection.

 Encapsulation: For both PPPoE/PPPoA connection, you need to specify the type of

Multiplexing, either LLC or VC Mux.

 Bridge Interface: Activate the option, and the Router can also work in Bridge mode.

 Connection: For PPPoE/PPPoA connection, you can select Always on or Connect On-

Demand or Connect Manually. Connect On-Demand is dependent on the traffic. If there is

no traffic (or Idle) for a pre-specified period of time, the connection will tear down

automatically. And once there is traffic send or receive, the connection will be automatically

on.

 Static/Dynamic IP Address: For PPPoE/PPPoA connection, you need to specify the public

IP address for this ADSL Router. The IP address can be either dynamically (via DHCP) or

given IP address provided by your ISP. For Static IP, you need to specify the IP address,

Subnet Mask and Gateway IP address.

 Default Route: You should select Yes to configure the PVC as the default gateway to

internet from this device.

 MAC Spoofing: Enable the MAC Spoofing, and enter a MAC address to configure the WAN

port. It makes your inside network appear as a device with this MAC address to the outside

world.
