Instructions for the User
41
10.STANDARD ACCESSORIES
9.6 Pan diameters
Rapid Burner pans with diameter from 18 cm to 26 cm can be used on this burner.
Auxiliary Burner pans with diameter from 12 cm to 16 cm can be used on this burner.
Pans of different sizes might put the user’s safety at risk and adversely affect the appliance’s
performance, as well as damaging its exterior.

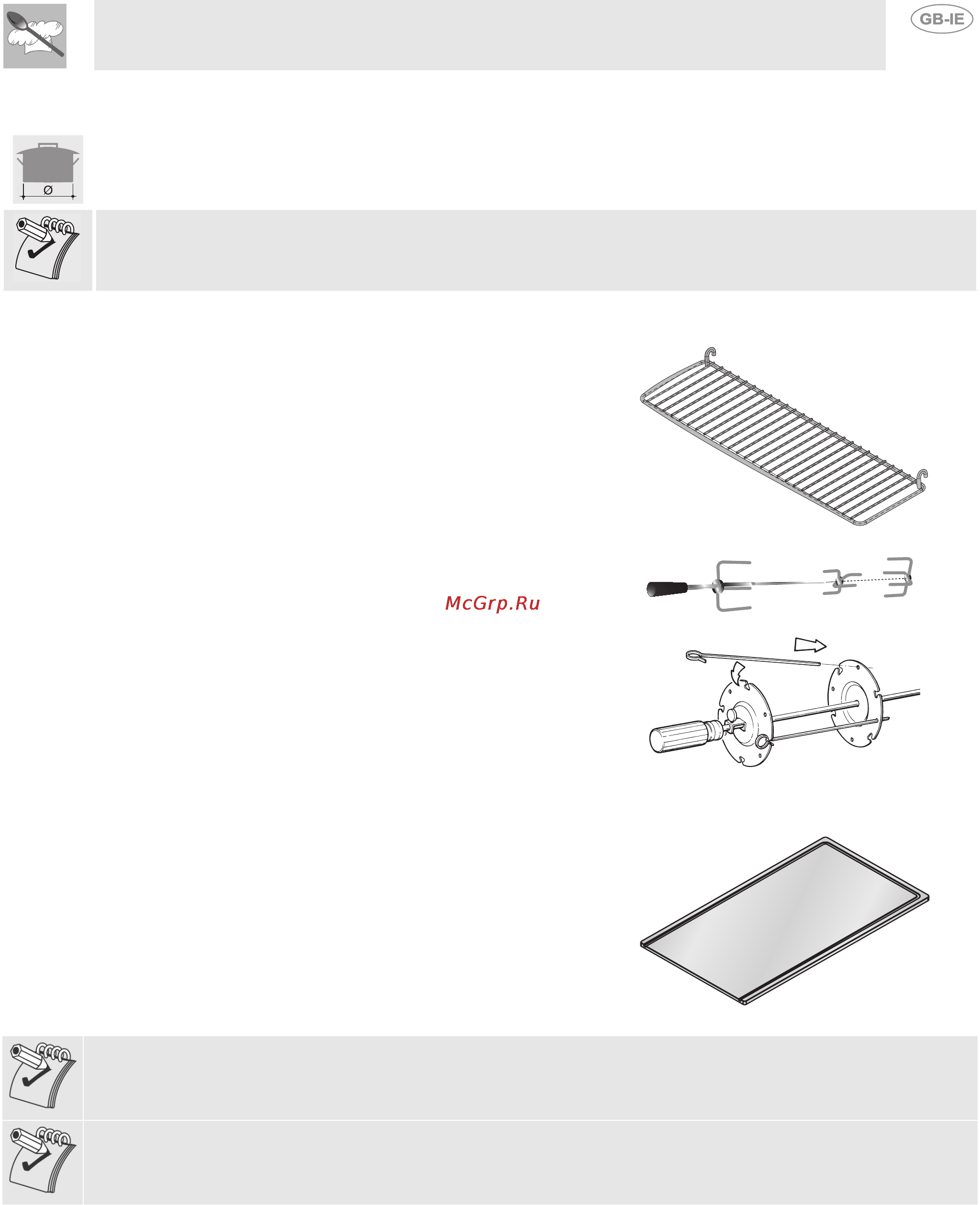

Food warmer shelf: useful for keeping food hot after
cooking. Hang this shelf on the back of the barbecue,
above the burners.
Rotisserie rod: useful for cooking chicken and all foods
which require uniform cooking over their entire surface.
INSTRUCTIONS FOR USE: Prepare the rotisserie rod with
the food, tightening the screws A (for both prongs and
kebab spits). Set the rotisserie rod on the barbecue so that
it fits into the seats provided. Then fit the rod into the
rotisserie motor. When the food is cooked, if you wish to
remove the rod from its place use the handle provided,
screwing it onto the thread. Take care when removing the
rod since it might still be hot; wear heat-proof gloves if
necessary.
Stainless steel plate: for use during specific cooking
processes to eliminate the grilling effect (for more details of
cooking procedures, see “11. COOKING ADVICE” on page
42.
Not all accessories are provided on some models.
Additional optional accessories are also available from our authorised service centres.
