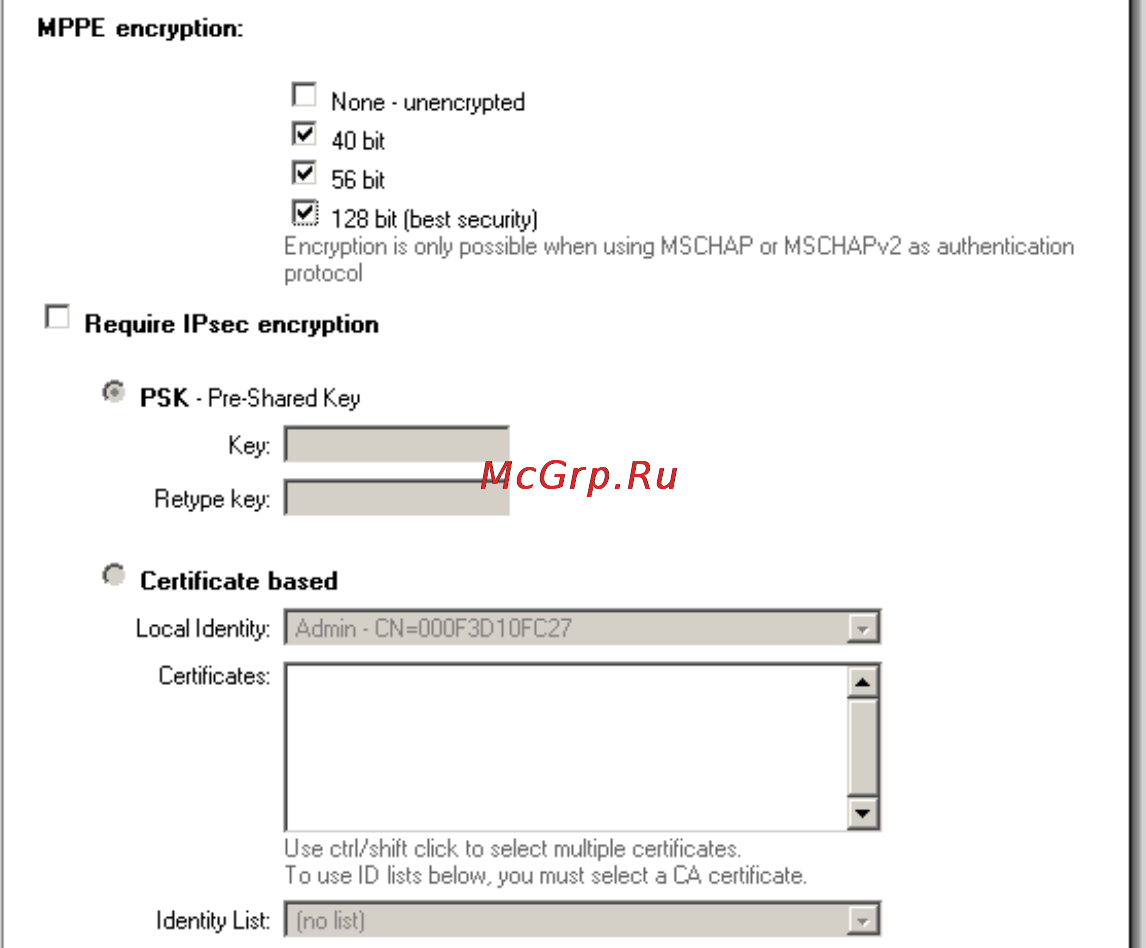

MPPE encryption
If MPPE encryption is going to
be used, this is where the
encryption level is configured.
If L2TP or PPTP over IPSec
is going to be used it has to be
enabled and configured to either
use a Pre-Shared Key or a
Certificate.
