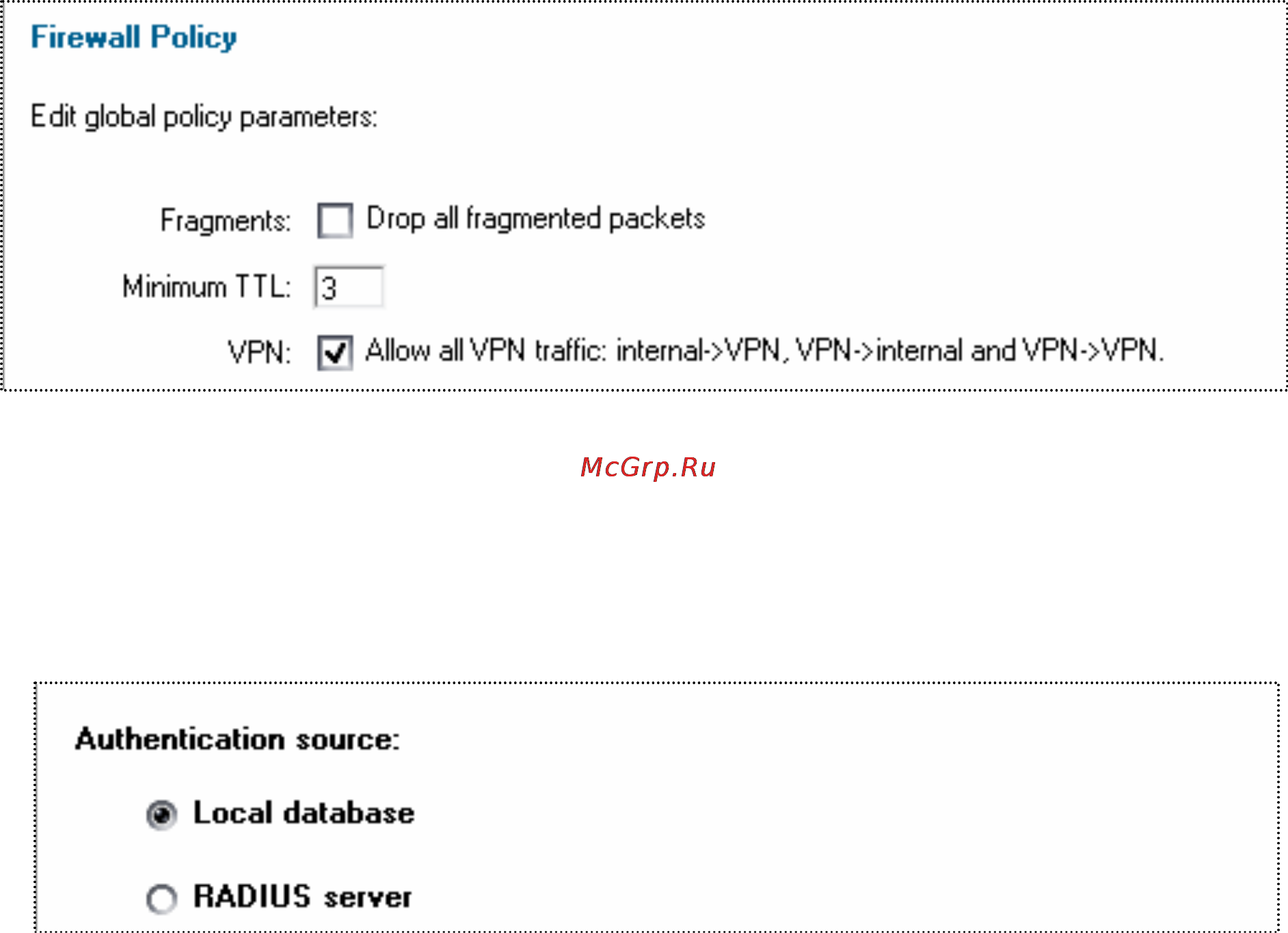

3. Setup policies for the new tunnel, Firewall->Policy:
Click Global policy parameters
Enable Allow all VPN traffic: internal->VPN, VPN->internal and VPN->VPN
Click Apply
4. Set up authentication source, Firewall->Users:
Select Local database
Click Apply
