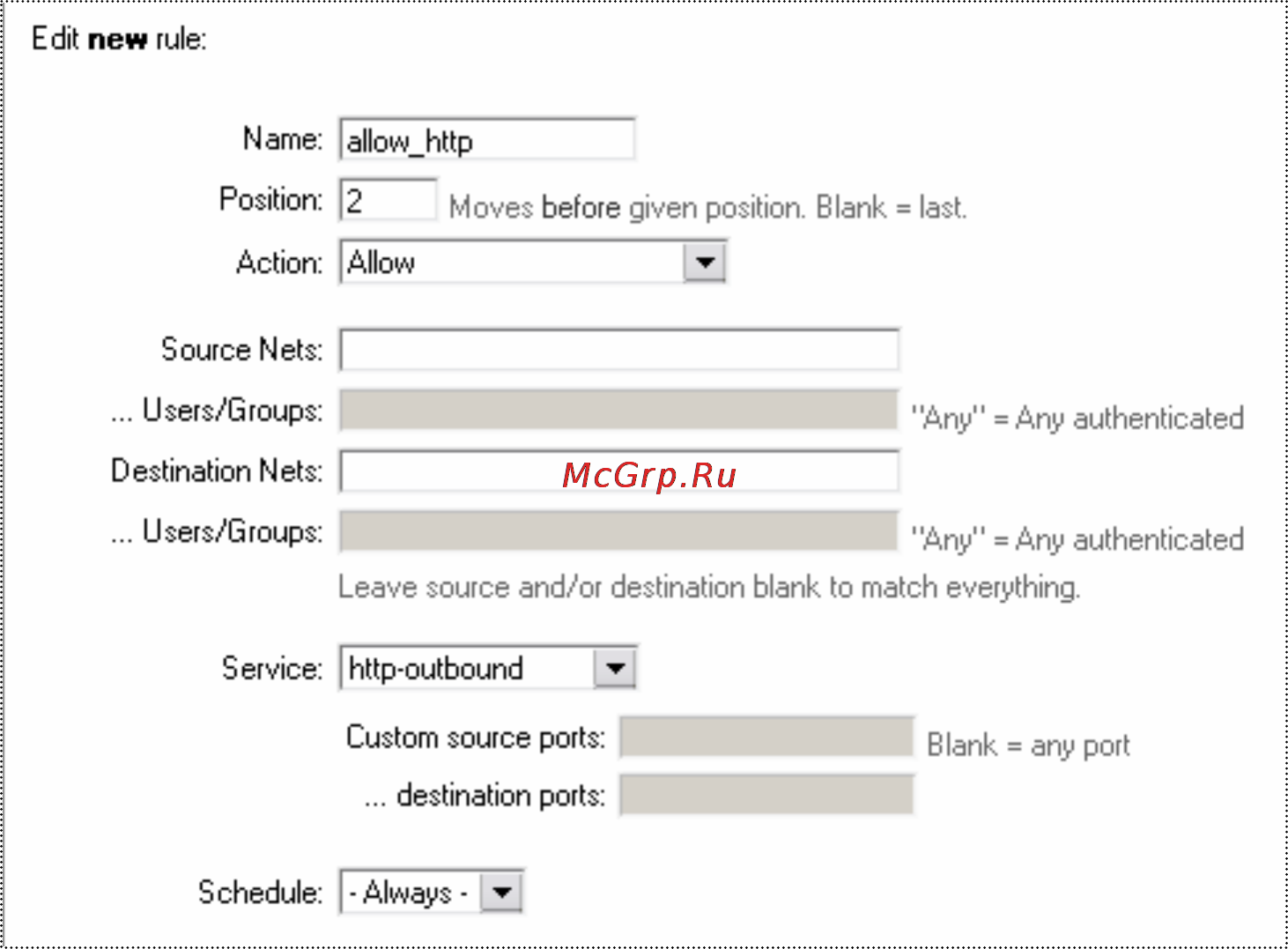

4. Edit the new policy we just created

Name the rule allow_http

Enter position 2

Select action Allow

Select service http-outbound

Select schedule Always

Click Apply
