122

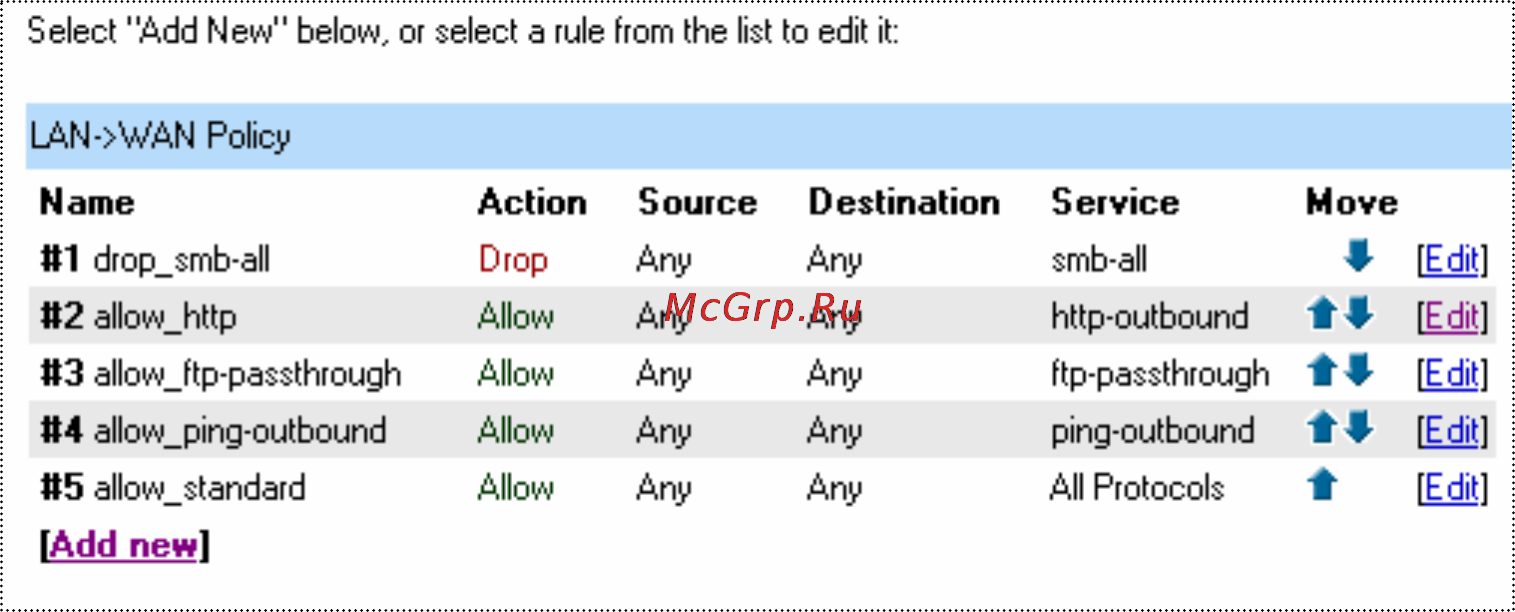

The new policy should now be added to position two in the list (if not, it can be
moved to the right position by clicking on the up and down arrows).
5. Click Activate and wait for the firewall to restart.
