14
MODEL
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
KW WW PR-PV Z
160 610 132 293 533 683 904 1056 3/4’’ 3/4’’ 3/4’’ 3/4’’
200 610 132 293 633 783 1177 1329 3/4’’ 3/4’’ 3/4’’ 3/4’’
300 650 130 320 810 960 1390 1560 1’’ 1’’ 1’’ 1’’
500 750 143 373 913 1063 1633 1818 1’’ 1’’ 1’’ 1’’
4.1. List of parts
4. TECHNICAL FEATURES - WHPS BA DS
1
4
3
6
5
2
7
9
7
8
10
11
7

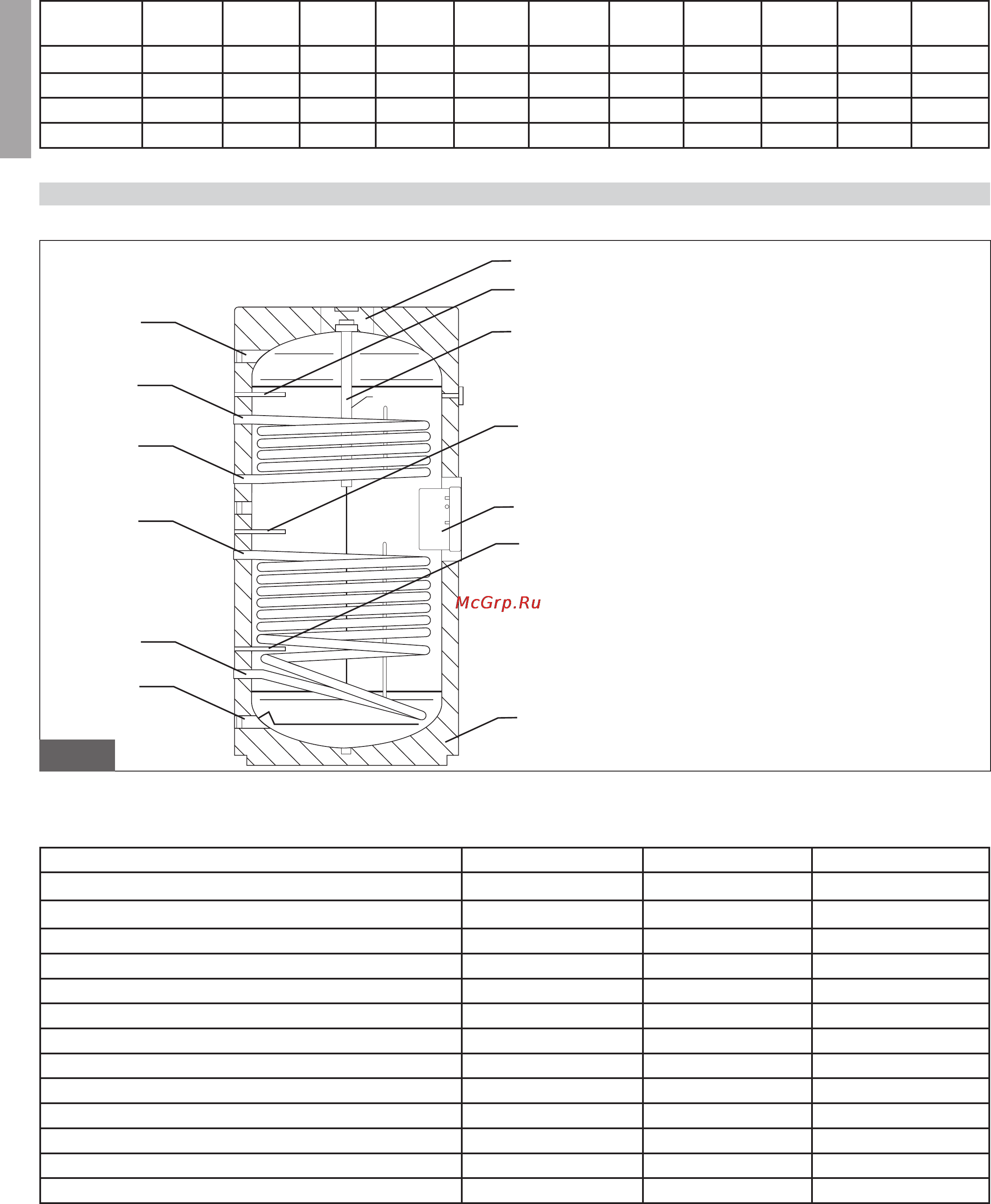

fig. 3
4.2. Specifications
(*) ∆T 35°C, primary heat exchanger temperature 80°C
MODEL 200 300 500
Capacity (l) 200 300 500
Lower heat exchanger surface area m
2
0.7 1.40 2.10
Upper heat exchanger surface area m
2
0.5 0.9 0.9
Max. water heater pressure (bar) 10 10 10
Max. heat exchanger pressure (bar) 16 16 16
Max. storage tank temperature (°C) 95 95 95
Max primary heat exchanger temperature (°C) 110 110 110
Lower heat exchanger ow rate m
3
/h 2.5 2.5 3.0
Upper heat exchanger ow rate m
3
/h 1.5 1.5 1.5
Max. lower heat exchanger output (kW) (*) 25.5 44 63
Max. upper heat exchanger output (kW) (*) 22 31.5 31.5
Lower heat exchanger continuous flow (l/h) (*) 530 909 1646
Upper heat exchanger continuous flow (l/h) (*) 450 638 1302
LEGEND:
1. Cold water inlet
2. Hot water outlet
3. Lower heat exchanger inlet
4. Lower heat exchanger outlet
5. Upper heat exchanger inlet
6. Upper heat exchanger outlet
7. Thermostat probe coupling
8. Magnesium anode
9. CFC/HCFC-free polyurethane
foam insulation
10. Side inspection ange
11. Top inspection ange
ENGLISH
