BEWARD STS-01PC Инструкция по эксплуатации онлайн

BEWARD STS-01PC Инструкция по эксплуатации онлайн

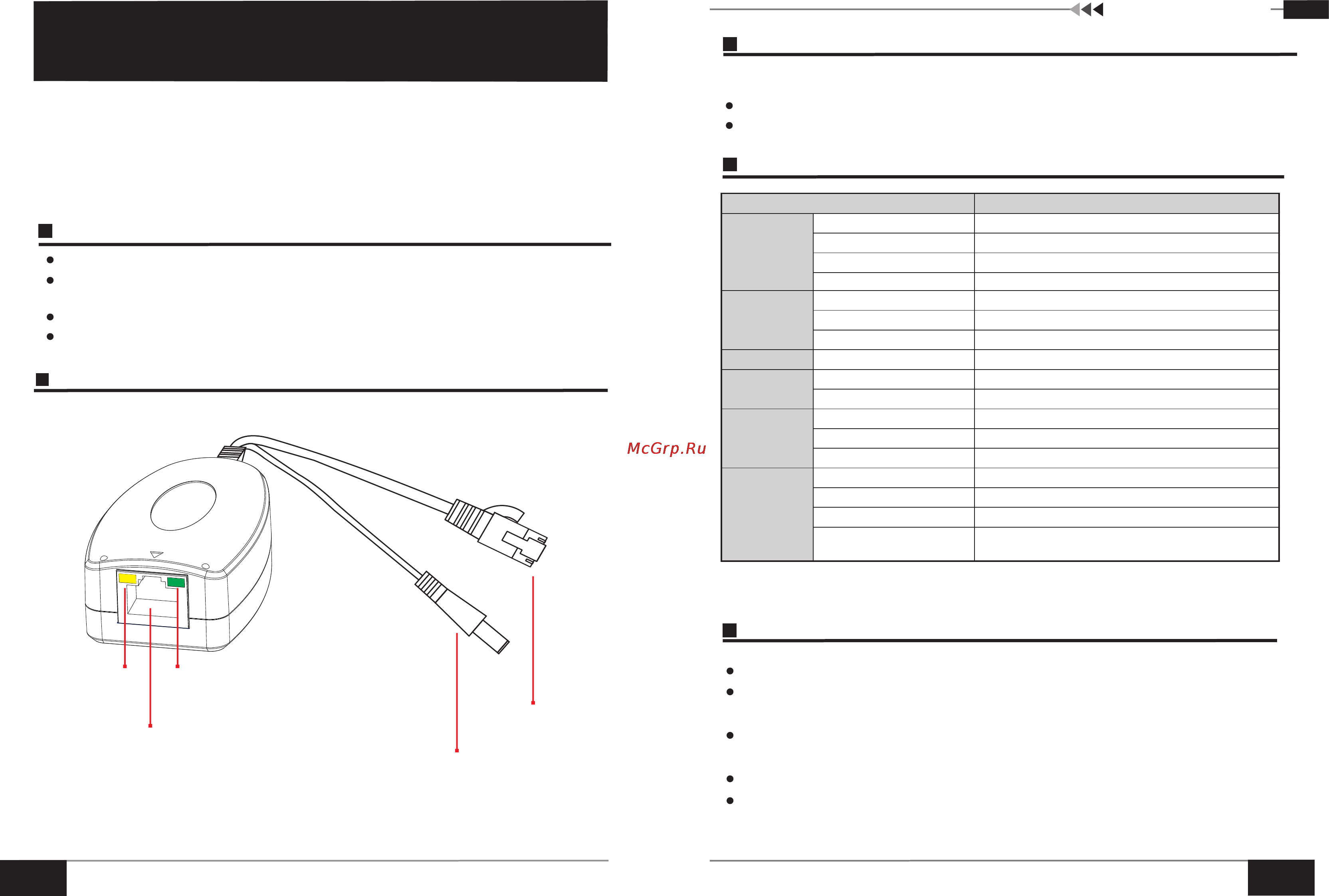

Board Diagram
Please check the following items after open the package. If it s missing, please contact the
dealer.
PoE Splitter
User Manual
'
1PC
1PC
Package List
PoE Splitter is compliant with IEEE802.3af standard, which can split data and power from
PoE signal. It perfect match camera enclosure and can split Ethernet and power from
ethernet cable for these device which can not support PoE. It can work with standard PoE
Switch or PSE device, compatible with mid-span and end-span, output 12V/1.1A power by
DC terminal, It is widely used in security surveillance and network project.
Feature
PoE Splitter
IEEE 802 3af Power over Ethernet Standard Compliance;
Compatible with mode A (End-Span) and mode B(Mid-Span);
12V /1.1A DC Power Output;
Excellent circuit isolation protection;
More than 82% conversion efficiency.
.
PoE Splitter
1
2
VerB 1.0
User Manual
连接接口
Specification
Item
Description
PoE
Protocol
IEEE803.2af
Mode
Support Mode A End Span) and Mode B Mid Span ( - ( - )
Input
PoE 36V 57V ～
Output
DC 12V, 13W≤
Ethernet
Port
1×RJ45
Transmission Speed
10 100Mbps/
Transmission Medium
Cat5 5e 6 Standard Network Cable/ /
Status
LED Indicator
Yellow PoE Green DC OUT: ， :
Protection
level
ESD
3 level Standard IEC61000 4 2 ， ： - -
Surge
3 level Standard IEC61000 4 5 ， ： - -
Environmental
Working Temperature
-30 60℃~ ℃
Storage Temperature
-40 85℃~ ℃
Humidity (Non Condensing- )
0 95~ %
Mechanical
Dimension L W H ( × × )
260mm×36mm×26mm
Material
Plastic
Color
Black
Weight
42g
连接接口
Trouble Shooting
Please find the following solution when the device doesn't work
Please confirm if the installation is correct;
Please confirm if the RJ45 cable order in accordance with the EIA/TIA568A or 568B industry
standards;
The maximum output consumption of the PoE port can't exceed 13W, please do not
connect the network device which consumption is more than 13W;
Please replace a normal device with a failure one to check if the device is broken;
If the problem still exists, please contact the factory.
Specifications suject to change without notice.
Data.
To Camera
Date Power Input
to PSE
/ ,
PoE
DC Out.
to Camera
DC Out
