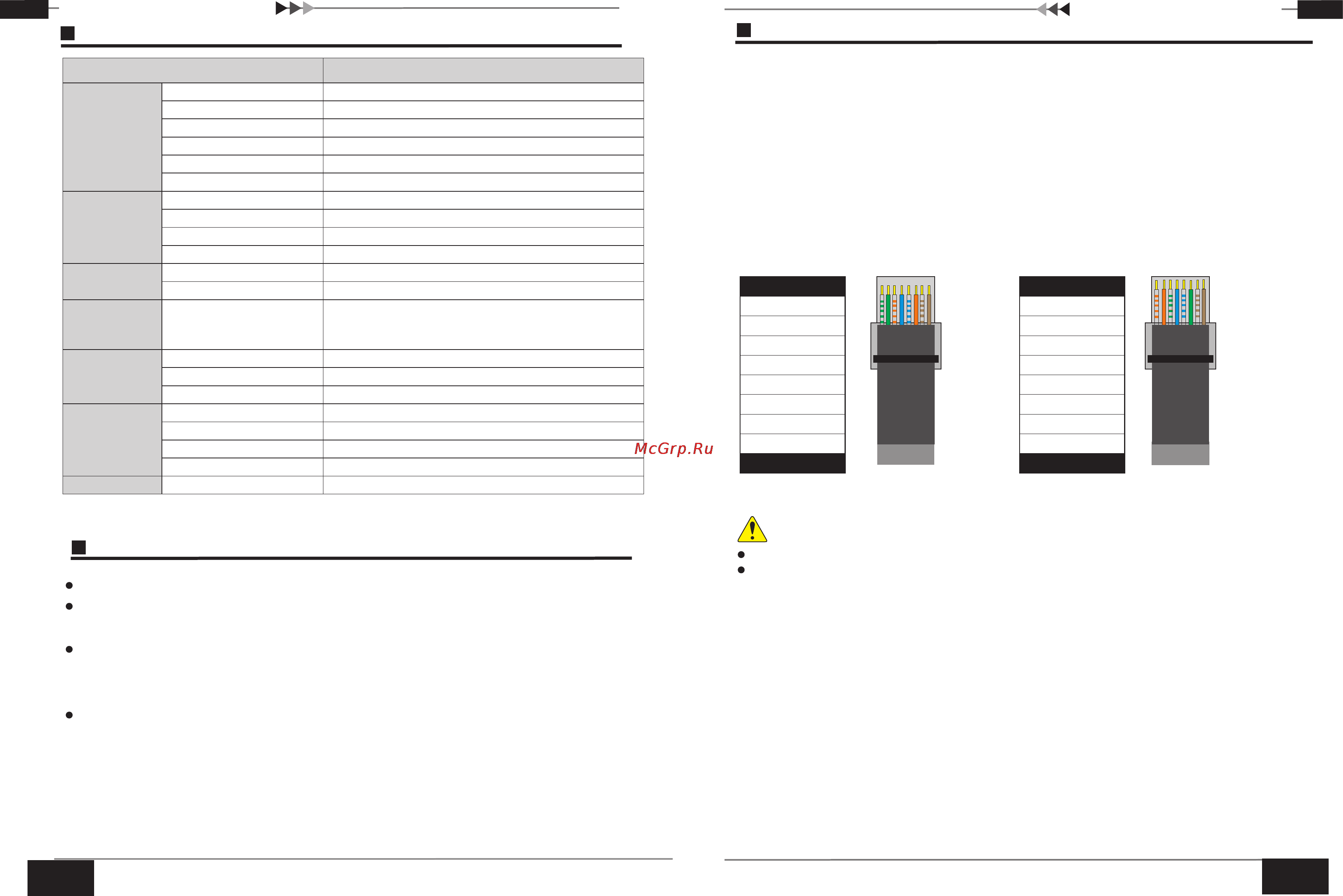

Single Port PoE Splitter
Specification
Item
Description
PoE Power Supply
Protocol
IEEE803.2af
Power Supply
Compatible Mode A (End-Span) and Mode B (Mid-Span)
Power Consumption
≤13W
Input Voltage
PoE 36V～57V
Output Voltage
DC5V, DC 9V, DC 12V Optional
Output Ripple
<5%
Ethernet Port
Ethernet Port
1×RJ45 Input
Transmission Rate
10/100Mbps
Transmission Medium
Cat5/5e/6 Standard Network Cable
Transmission Distance
100m (Maximum)
LED Status
Indicator
Input PoE Power Indicator
1 (POE IN Port RJ45 Yellow Light)
Output DC Power Indicator
3 LED, DC5V, DC 9V, DC 12V
Protection
ESD
1a Contact Discharge Level 3
1b Air Discharge Level 3
Per: IEC61000-4-2
Environmental
Working Temperature
0 ~55℃℃
Storage Temperature
-20 ~70℃℃
Humidity (Non-Condense)
0~95%
Mechanical
Size (L×W×H)
82mm 61mm×25mm×
Material
ABS Plastic
Color
Black
Weight
65g
Stability
MTBF
>30000h
Product are subject to change without prior notice
连接接口
Please confirm if the installation is correct;
Please confirm if the RJ45 cable order in accordance with the EIA/TIA568A or 568B
industry standards;
The maximum output consumption of the PoE port can't exceed 13W, please do not
connect the network device which consumption is more than 13W
Please replace a normal device with a failure one to check if the device is broken;
If the problem still exist, please contact the factory.
;
连接接口
Trouble Shooting
Please find the following solution when the device doesn't work
Single Port PoE Splitter
RJ 45 Making Method
Instruments to be used: wire crimper, network tester. Wire sequence of RJ45 plug should conform
with EIA/TIA568A or 568B.
1) Shuck off about 2cm long the insulating layer, and bar the 4 pairs UTP cable;
2) Depart the 4 pairs UTP cable and straighten them;
3) Line up the 8 pieces of cables per EIA/TIA 568A or 568B;
4) Cut out 1.5 cm cable wrap and leave the bare wire;
5) Plug 8 cables into RJ45 plug, make sure each cable is in each pin;
6) Then use wire crimper to crimp it;
7) Follow the 5 steps above to make the another end, following the same sequence of the first plug;
8) Using network tester to test the cable whether is working.
pin color
white/green
green
blue
white/orange
white/blue
white/brown
orange
brown
1
2
3
4
5
6
7
8
pin color
1
2
3
4
5
6
7
8
white/green
green
blue
white/orange
white/blue
white/brown
orange
brown
EIA/TIA 568A
EIA/TIA 568B
Notice
When choose RJ-45 make sure if one end is EIA/TIA568B,the other end should also be EIA/TIA568B.
When choose RJ-45 make sure if one end is EIA/TIA568A,the other end should also be EIA/TIA568A.
