48
Screen Setup
3
3 Screen Setup

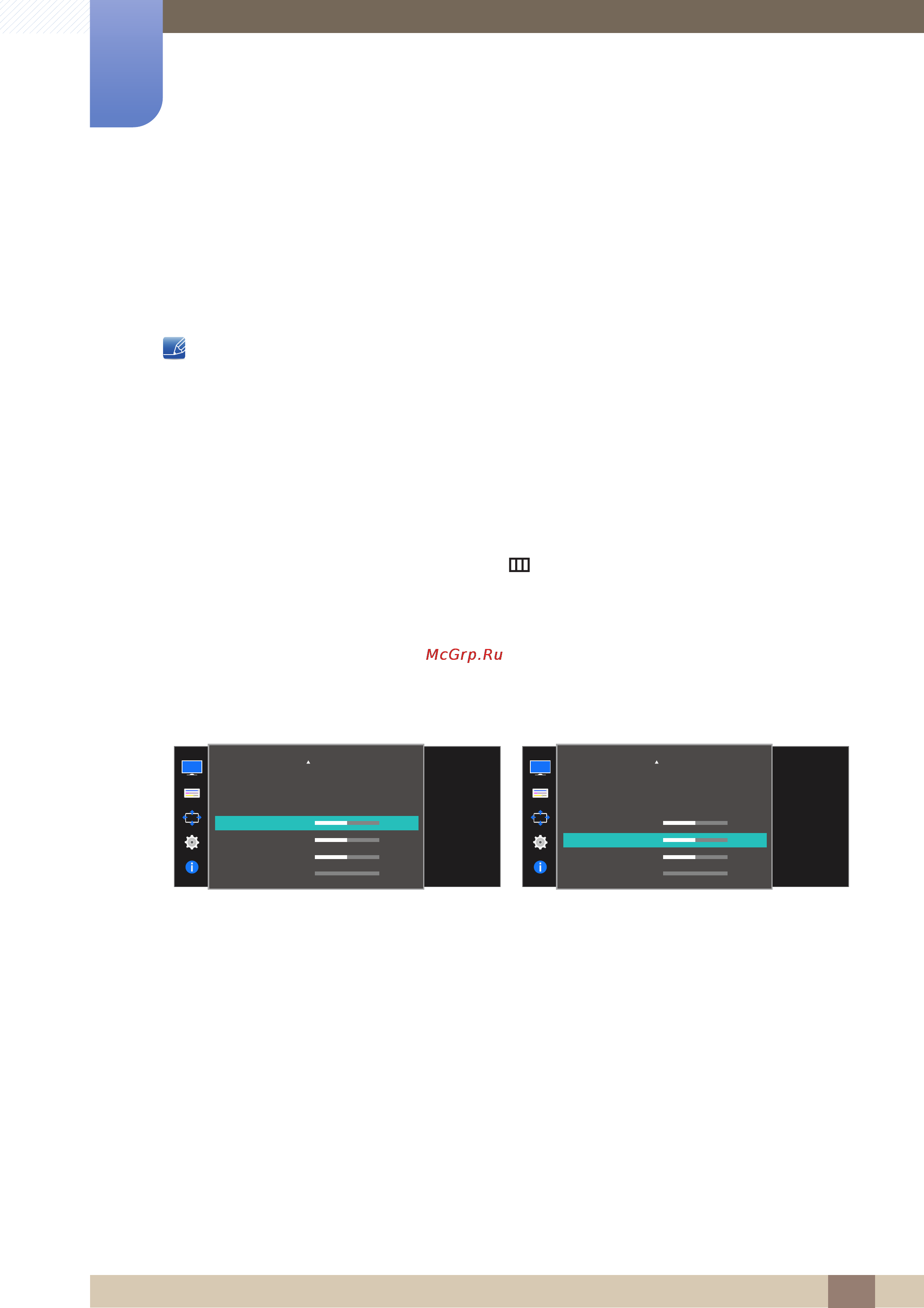

3.11 H-Position & V-Position
H-Position: Move the screen to the left or right.
V-Position: Move the screen up or down.
This menu is available in Analog mode only.
This menu is only available when Image Size is set to Screen Fit in AV Mode. When a 480P or
576P or 720P or 1080P signal is input in AV mode and the monitor can display normally, select
Screen Fit to adjust horizontal position in 0-6 levels.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
3.11.1 Configuring H-Position & V-Position
1 When the Function Key Guide appears, select [ ] by moving the JOG button UP.
Next, press the JOG button.
2 Move to PICTURE controlling the JOG button UP/DOWN and press the JOG button.
3 Move to the H-Position or V-Position controlling the JOG button UP/DOWN and press the JOG
button.
The following screen will appear.
4 Adjust the H-Position or V-Position controlling the JOG button LEFT/RIGHT and press the JOG
button.
5 The selected option will be applied.
Faster
0
0
1344
0
Move the image
displayed on the
screen to the
left or right.
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
Wide
Faster
0
0
1344
0
Move the image
displayed on the
screen up or down.
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
Wide
