SUPERSERVER 5017R-MTF/5017R-MTRF User's Manual

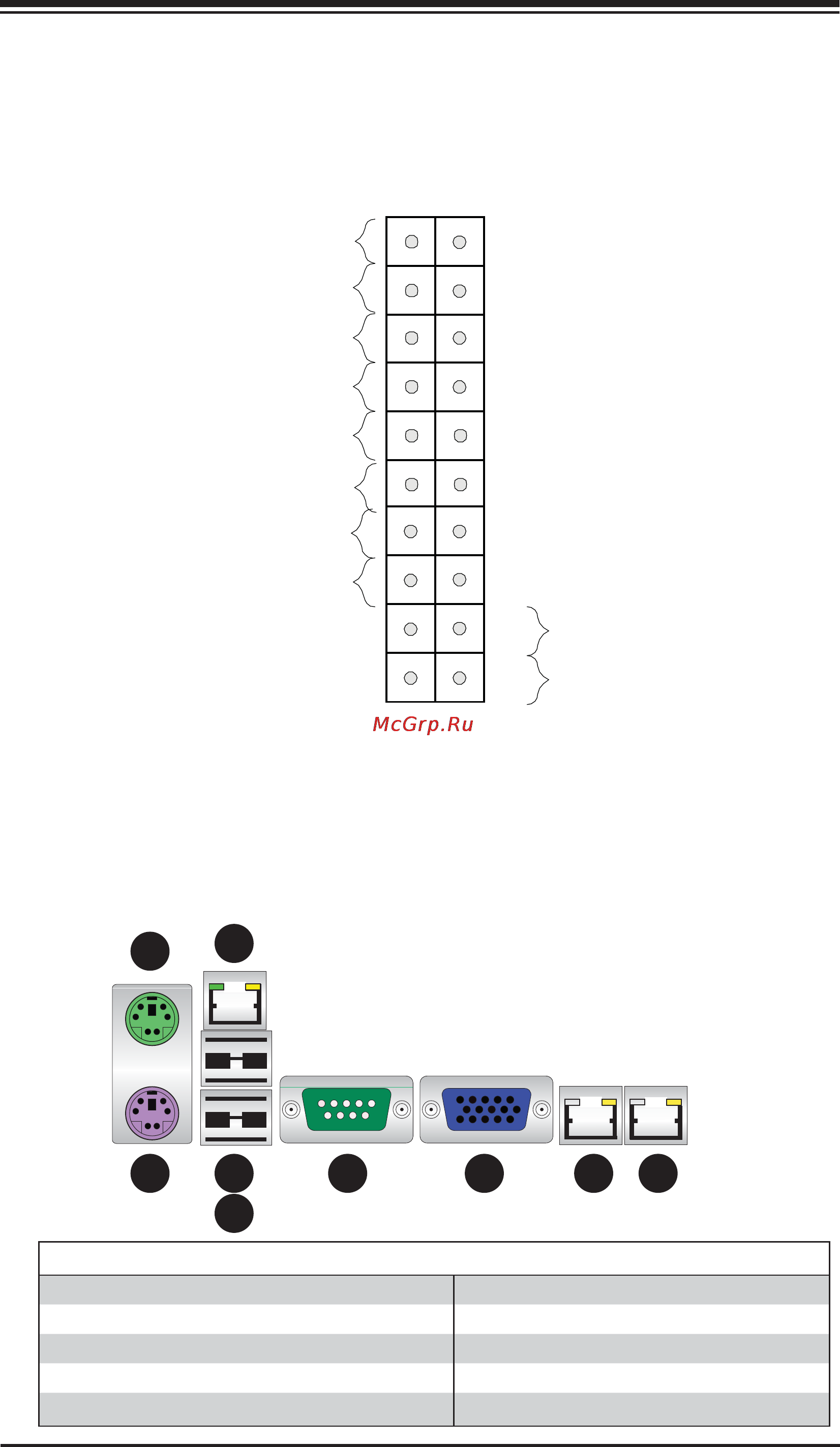

Figure 5-1. Front Control Panel Header Pins (JF1)

See the Connector Deﬁ nitions section in this chapter for details and pin descrip-

tions of JF1.

5-4 I/O Ports

The I/O ports are color coded in conformance with the PC 99 speciﬁ cation. See

Figure 5-2 below for the colors and locations of the various I/O ports.

Figure 5-2. Rear Panel I/O Ports

I/O Ports

1. Keyboard (Purple) 6. COM1

2. PS/2 Mouse (Green) 7. VGA

3. USB Port 0 8. LAN1

4. USB Port 1 9. LAN2

5. IPMI LAN

Power Button

OH/Fan Fail LED

NIC1 LED

Reset Button

Power Fail LED

HDD LED

Power LED

#3~4

#1~2

Vcc

Vcc/UID Switch

Vcc

Vcc/Blue UID LED

Ground

1920

Vcc

Ground

NMI

Vcc

NIC2 LED
