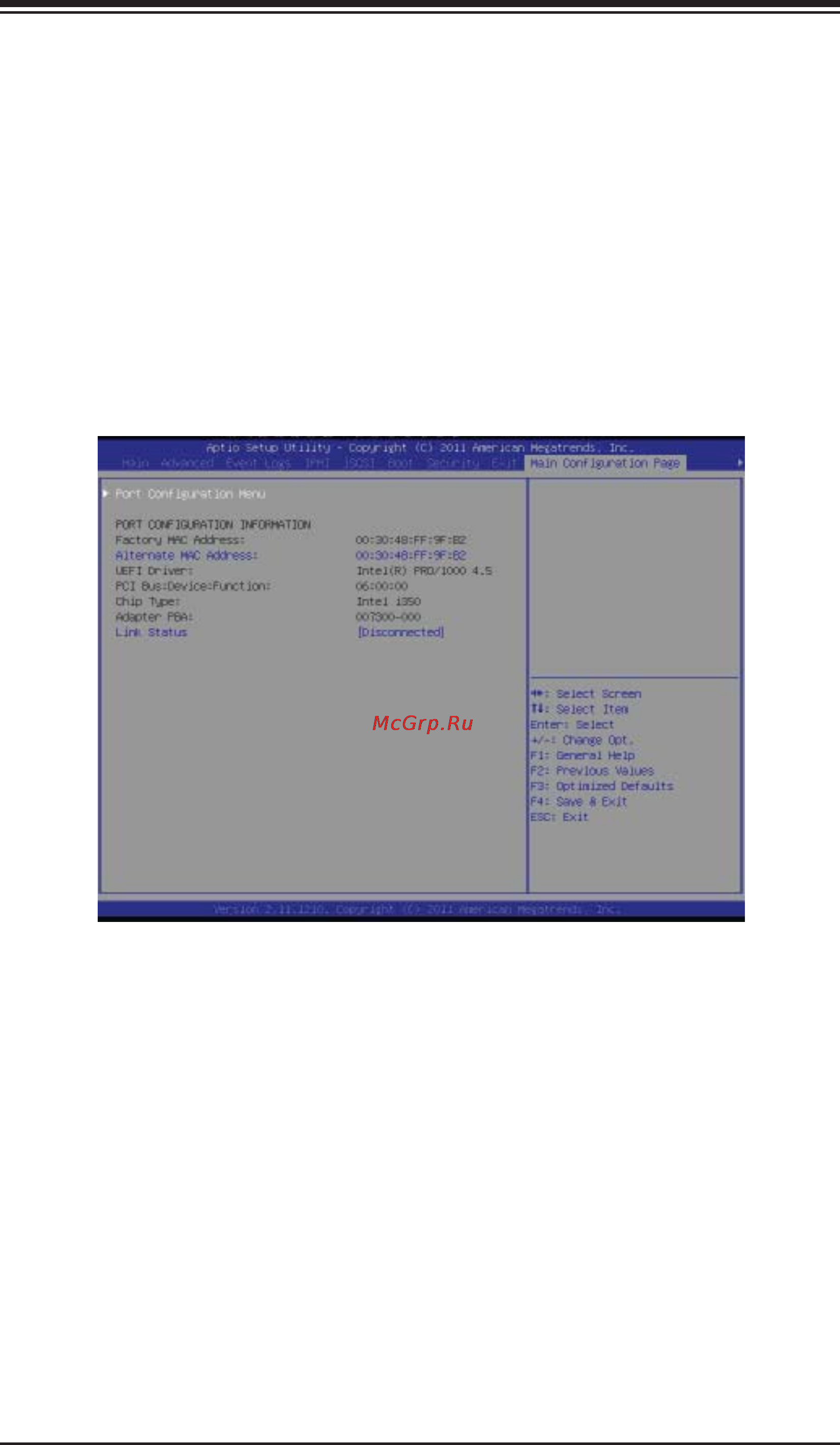

![Supermicro sys-5017r-mtf [94/106] 10 main confi guration page](/img/pdf.png)
Supermicro sys-5017r-mtf [94/106] 10 main confi guration page
![Supermicro sys-5017r-mtf [94/106] 10 main confi guration page](/views2/1190425/page94/bg5e.png)
7-26
SUPERSERVER 5017R-MTF/5017R-MTRF User's Manual
Save As User Defaults
To set this feature, select Save as User Defaults from the Exit menu and press <En-
ter>. This enables the user to save any changes to the BIOS setup for future use
Restore User Defaults
To set this feature, select Restore User Defaults from the Exit menu and press <En-
ter>. Use this feature to retrieve user-defi ned settings that were saved previously.
Boot Override
Set this feature to override a previously defi ned boot device. The available devices
will be listed below.
7-10 Main Confi guration Page
Port Confi guration Menu
Use this feature to confi gure network-related options.
Preboot Option ROM
This option enables or disables the Option ROM for the current port. When disabled,
the preboot driver can be loaded from this location. The options are Enabled and
Disabled.
