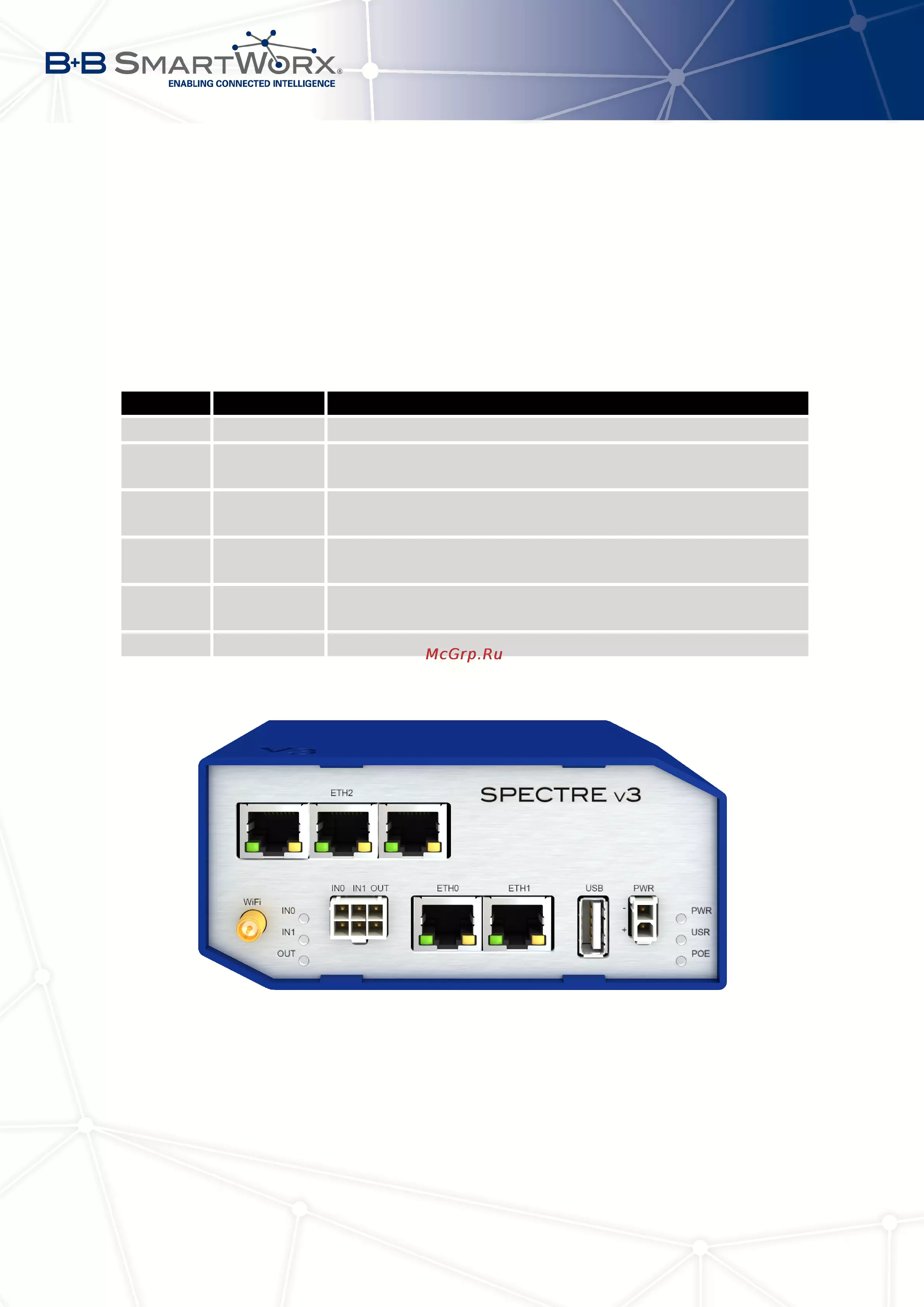

5. ROUTER DESIGN
5.8.1 Status indication
About router status inform nine LED indicators on the front panel. Each ETH port has two
additional LEDs that provide information about port status.
Caption Color State Description
PWR Green Blinking
On
Fast blinking
Router is ready
Starting of the router
Updating firmware
USR Yellow — Function of this LED diode can be selected by user
POE Yellow
Green
On
Blinking
On
Blinking
Off
PSE: insufficient power supply via PWR connector
PSE: overload (device takes much power)/short circuit*
PoE PD versions: The voltage present in ETH port
PSE: correct power supply via PWR connector
PSE: The device is powered via one of the ETH por ts
PD: The voltage not present in ETH port
PSE: disabled (not enabled on any of ETH ports)
IN0 Green On Binary input no. 0 is active
IN1 Green On Binary input no. 1 is active
OUT Yellow On Binary output is active
ETH0
ETH1
Green On
Off
Selected 100 Mbit/s
Selected 10 Mbit/s
ETH0
ETH1
Yellow On
Blinking
Off
The network cable is connected
Data transmission
The network cable is not connected
Table 9: Status indication
* Additionaly it can indicate a device without PoE support connected on the other side of the
cable. In this case the indication is caused by low impedance (lesser than 500 Ω) of this device
without PoE support. You can solve this by disabling the PoE PSE feature on the proper ETH
port in the router’s Web interface, see Configuration manual for v3 routers [2].
11
