TL-WA701ND 150Mbps Wireless N Access Point User Guide

1.3 Main Features

¾ Wireless speed up to 150Mbps

¾ Supports Access Point, Multi-SSID, Client, Repeater（Universal Repeater）and Bridge with AP

modes

¾ Up to 4 SSIDs and VLAN support

¾ Up to 30 meters (100 feet) of flexible deployment with included Power over Ethernet Injector

¾ Easily setup a WPA encrypted secure connection at a push of the WPS button

¾ Supports Remote and Web management

¾ Backward compatible with 802.11b/g products

1.4 Appearance

1.4.1 The Front Panel

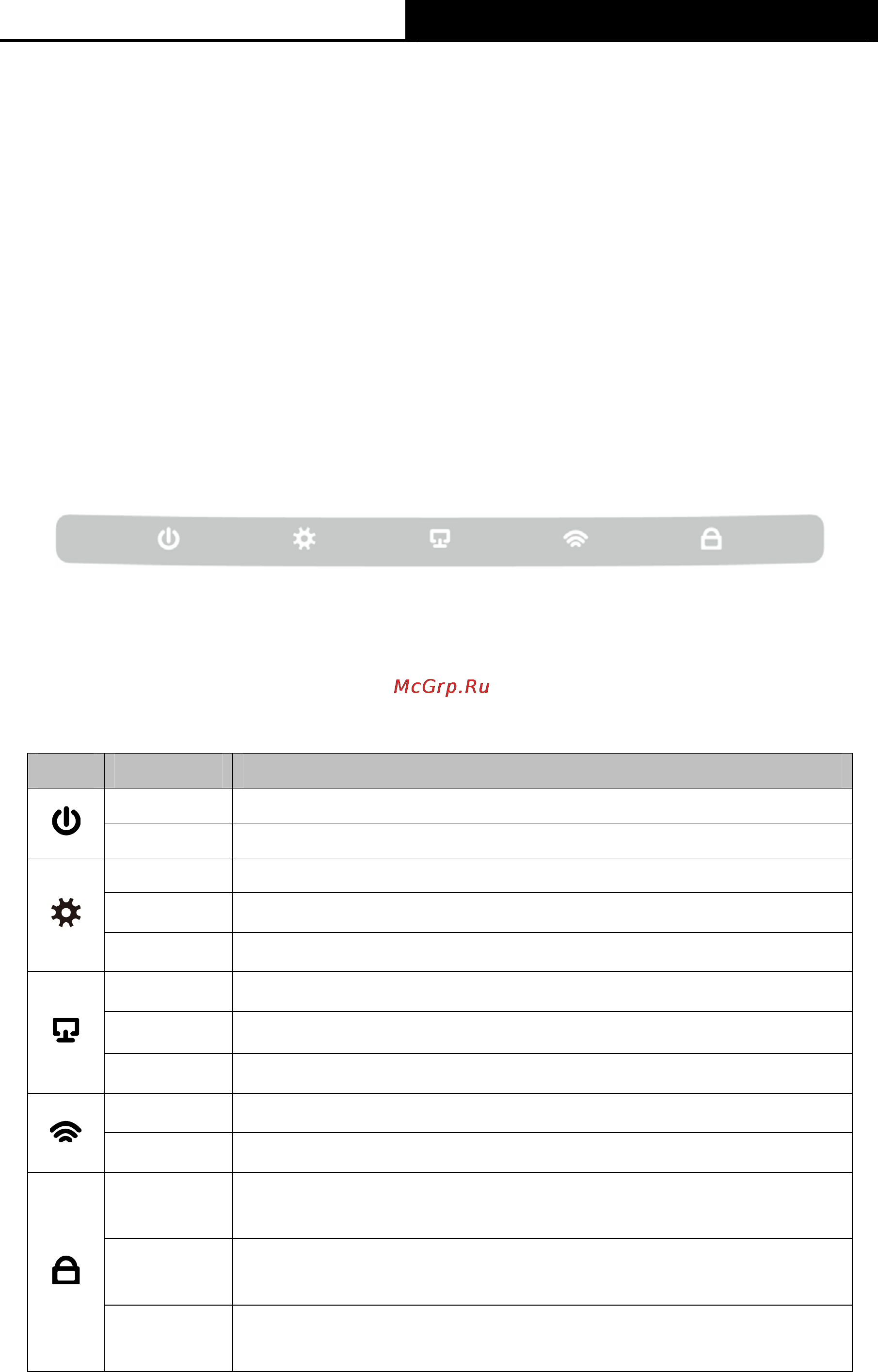

Figure 1-1

The front panel of the TL-WA701ND consists of several LED indicators, which is designed to

indicate connections. View from left to right, Table 1-1 describes the LEDs on the front panel of the

device.

LED Explanation

Name Status Indication

Off No Power

On Power on

Off The device has a system error

The device is initialising

Flashing

The device is working properly

Off

There is no device linked to the corresponding port

There is a device linked to the corresponding port but no activity

Flashing

There is an active device linked to the corresponding port

Off

The Wireless function is disabled

Flashing

The Wireless function is enabled

Slow Flash

A wireless device is connecting to the network by WPS function.

This process will last in the first 2 minutes.

A wireless device has been successfully added to the network by

WPS function.

Quick Flash

A wireless device failed to be added to the network by WPS

function.

Table 1-1
