TL-WA701ND 150Mbps Wireless N Access Point User Guide

Chapter 4 Configure the Device

This Chapter describes how to configure your Access Point via the web-based management page.

The TL-WA701ND 150Mbps Wireless N Access Point is easy to configure and manage with the

Web-based (Internet Explorer, Netscape

Navigator, Firefox, Safari, Opera or Chrome)

management page, which can be launched on any windows, Macintosh or UNIX OS with a web

browser.

4.1 Login

Open your web browser. Type in IP address http://192.168.0.254 in the address field of web

browser and press Enter.

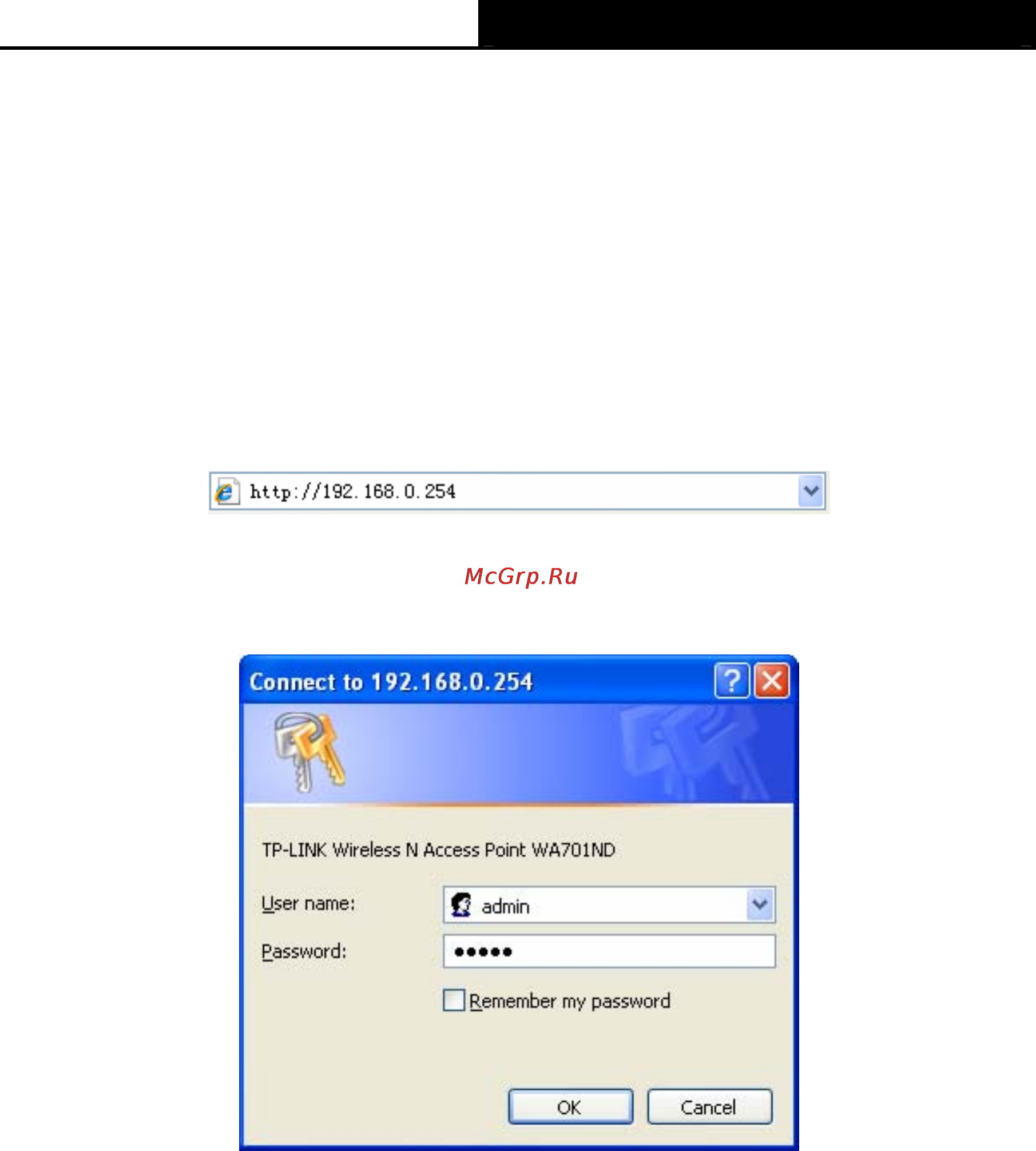

Figure 4-1 Login to the AP

Enter admin for the User Name and Password (both in lower case letters) in Figure 4-2 below.

Then click OK or press Enter.

Figure 4-2 Login Windows

)

Note:

If the above screen does not prompt, it means that your web-browser has been set to a proxy. Go

to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears,

cancel the Using Proxy checkbox, and click OK to finish it.

After a successful login, you can configure and manage the device. There are six main menus on

the leftmost column of the web-based management page: Status, WPS, Network, Wireless,

DHCP and System Tools. Submenus will be available after clicking one of the main menus. On

the right of the web-based management page lies the detailed explanations and instructions for

the corresponding page.
