TL-WA701ND 150Mbps Wireless N Access Point User Guide

¾ Run Time - How long this function is running.

¾ Transmit - Wireless transmit rate information.

¾ Receive - Wireless receive rate information.

Click the Start button to start wireless throughput monitor.

Click the Stop button to stop wireless throughput monitor.

4.7.7 Wireless Statistics

Selecting Wireless > Wireless Statistics will allow you to see the wireless transmission

information in the following screen shown in Figure 4-25.

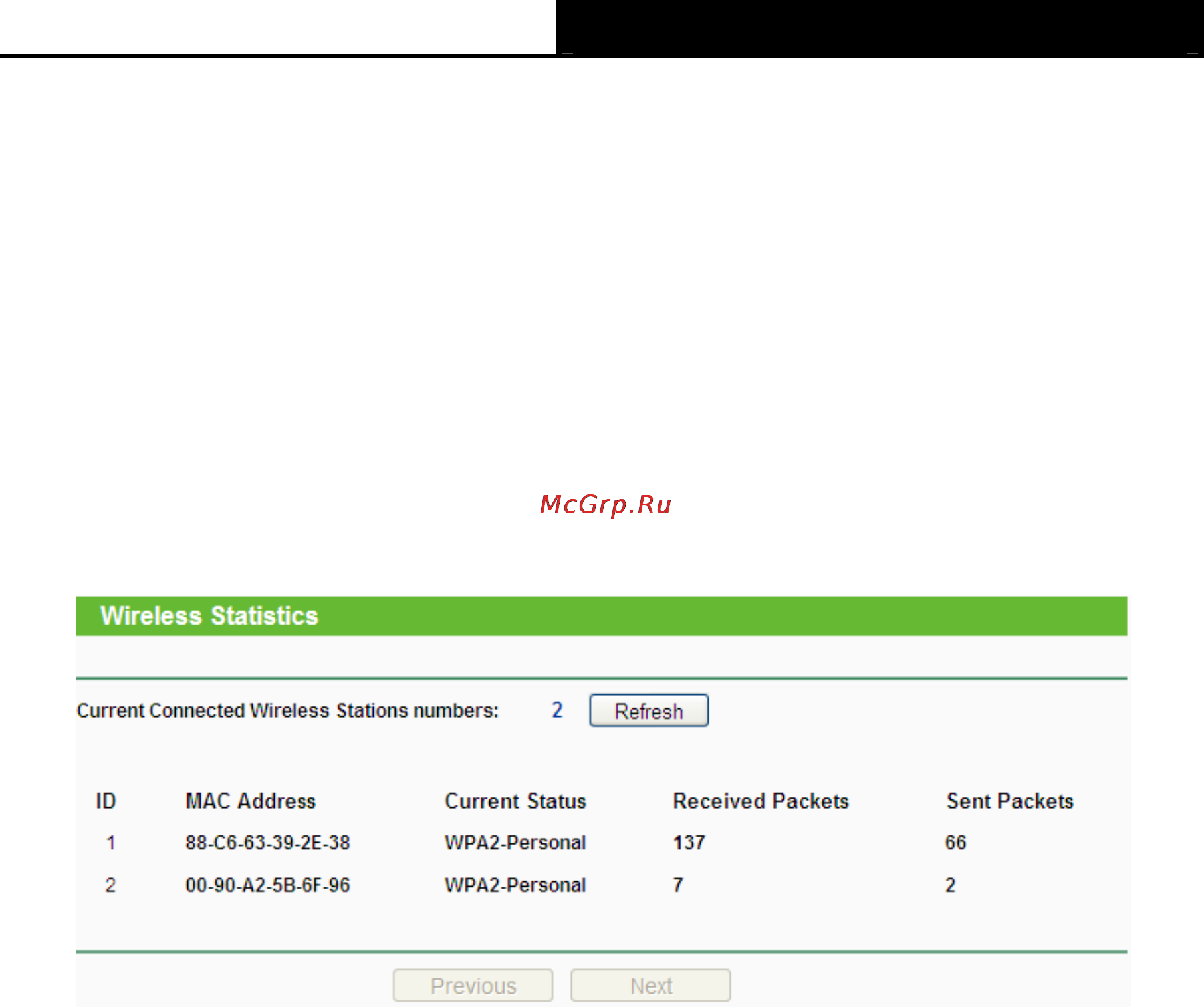

Figure 4-25 Statistics of the device attached wireless stations

¾ MAC Address - Shows the connected wireless station's MAC address

¾ Current Status - The connected wireless station's running status, one of STA-AUTH /

STA-ASSOC / STA-JOINED / WPA / WPA-PSK / WPA2 / WPA2-PSK / AP-UP / AP-DOWN /

Disconnected

¾ Received Packets - packets received by the station

¾ Sent Packets - packets sent by the station

You cannot change any of the values on this page. To update this page and to show the current

connected wireless stations, click the Refresh button.

If the numbers of connected wireless stations go beyond one page, click the Next button to go to

the next page and click the Previous button to return the previous page.

)

Note:

This page will be refreshed automatically every 5 seconds.

4.8 DHCP

DHCP stands for Dynamic Host Configuration Protocol. The DHCP Server will automatically

assign dynamic IP addresses to the computers on the network. This protocol simplifies network

management and allows new wireless devices to receive IP addresses automatically without the

need to manually assign new IP addresses.

There are three submenus under the DHCP menu (shown as Figure 4-26): DHCP Settings,

DHCP Clients List and Address Reservation. Clicking any of them will enable you to configure
