TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender

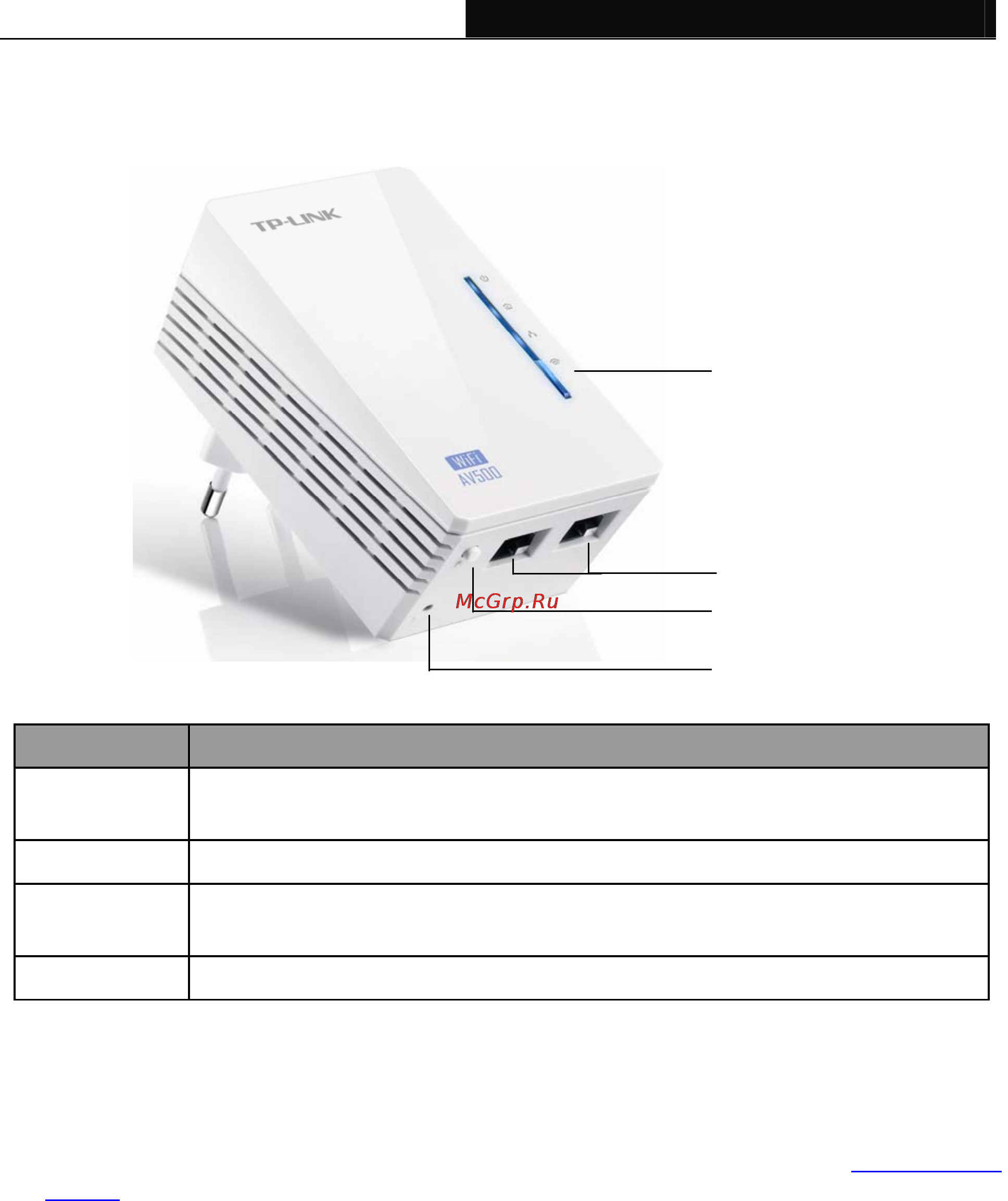

2.3 Physical Interface

There are four physical items on this device.

Item Description

Wi-Fi/Wi-Fi

Clone Button

Press the button for 2 seconds to start Wi-Fi Clone.

Press the button for 5 seconds to enable or disable the wireless function.

Ethernet Port Two 10/100Mbps Ethernet port connected to PC LAN card or broadband device.

Reset Button

Press the button more than 5 seconds, the device will restore to its factory

defaults.

Pair Button Pair buttons are used to secure a powerline network.

)

Note:

1. If you press the Pair button for more than 10 seconds, the extender will leave the network it is

associated with and its network name assumes a random value.

2. For detail information about the Reset button and Pair button, please refer to Chapter 5 Pair

Buttons.

2.4 Hardware Connection

Please first make sure that your PC can successfully access the Internet via the router. Then connect

the powerline devices by following the instructions below.

Step 1: Connecting to the Internet

This section describes how to connect the powerline extender into your existing network. Follow the

procedures described below:

1． Connect one end of an Ethernet (RJ45) cable to the Ethernet port of the powerline extender or a

compatible powerline adapter like TL-PA4010.

Wi-Fi/Wi-Fi Clone Button

Ethernet Port

Pair Button

Reset Button
