TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender

the powerline extender an ideal solution for your wireless network. Here you can create a wireless local

area network just through a few settings. Wireless Settings is used for the configuration of some basic

parameters of the powerline extender. Wireless Security provides three different security types to secure

your data and thus providing greater security for your wireless network. MAC filtering allows you to

control the access of wireless stations to the powerline extender. Wireless Advanced allows you to

configure some advanced parameters for the powerline extender. Wireless statistics enables you to get

detailed information about the current connected wireless stations.

There are five submenus under the Wireless menu (shown in Figure 3-8): Wireless Settings, Wireless

Security, Wireless MAC Filtering, Wireless Advanced and Wireless Statistics. Click any of them

and you will be able to configure the corresponding function. The detailed explanations for each

submenu are provided below.

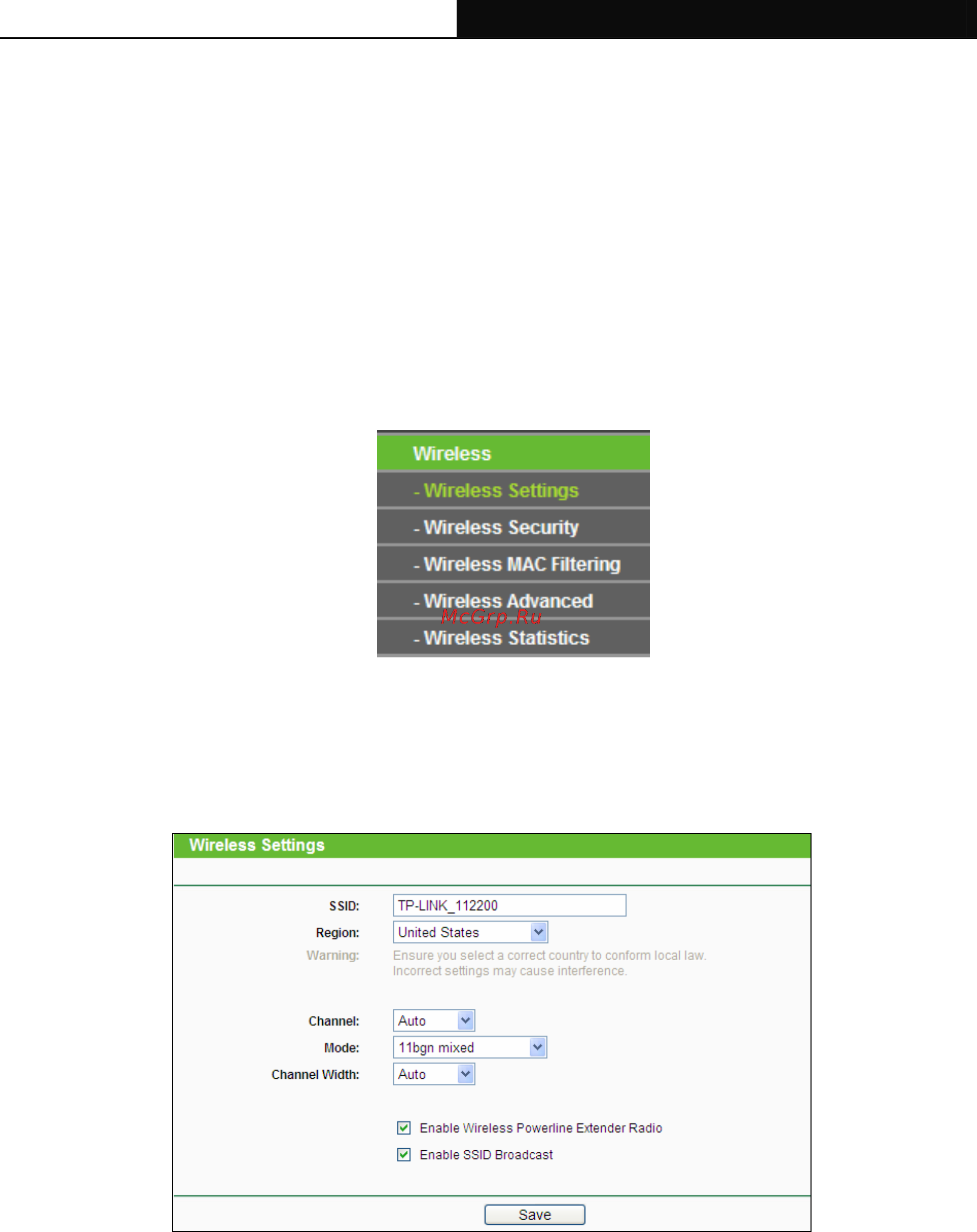

Figure 3-8 Wireless menu

3.4.1 Wireless Settings

Selecting W

ireless > Wireless Settings will enable you to configure the basic settings for your wireless

network on the screen below (Figure 3-9).

Figure 3-9 Wireless Settings

¾ SSID (Set Service Identifier) - Identifies your wireless network name. Enter a value of up to 32

characters. The same Name (SSID) must be assigned to all wireless devices in your network. The

default SSID is TP-LINK_XXXXXX (XXXXXX indicates the last six unique characters of each

device’s MAC address). This value is case-sensitive. For example, TEST is not the same as test.

¾ Region - Select your region from the pull-down list. This field specifies the region where the

wireless function of the powerline extender can be used. It may be illegal to use the wireless
