Chapter 5 Wireless

Wireless page, consisting of Wireless Settings, Portal, MAC Filtering, Scheduler, QoS and Rogue

AP Detection, is shown below.

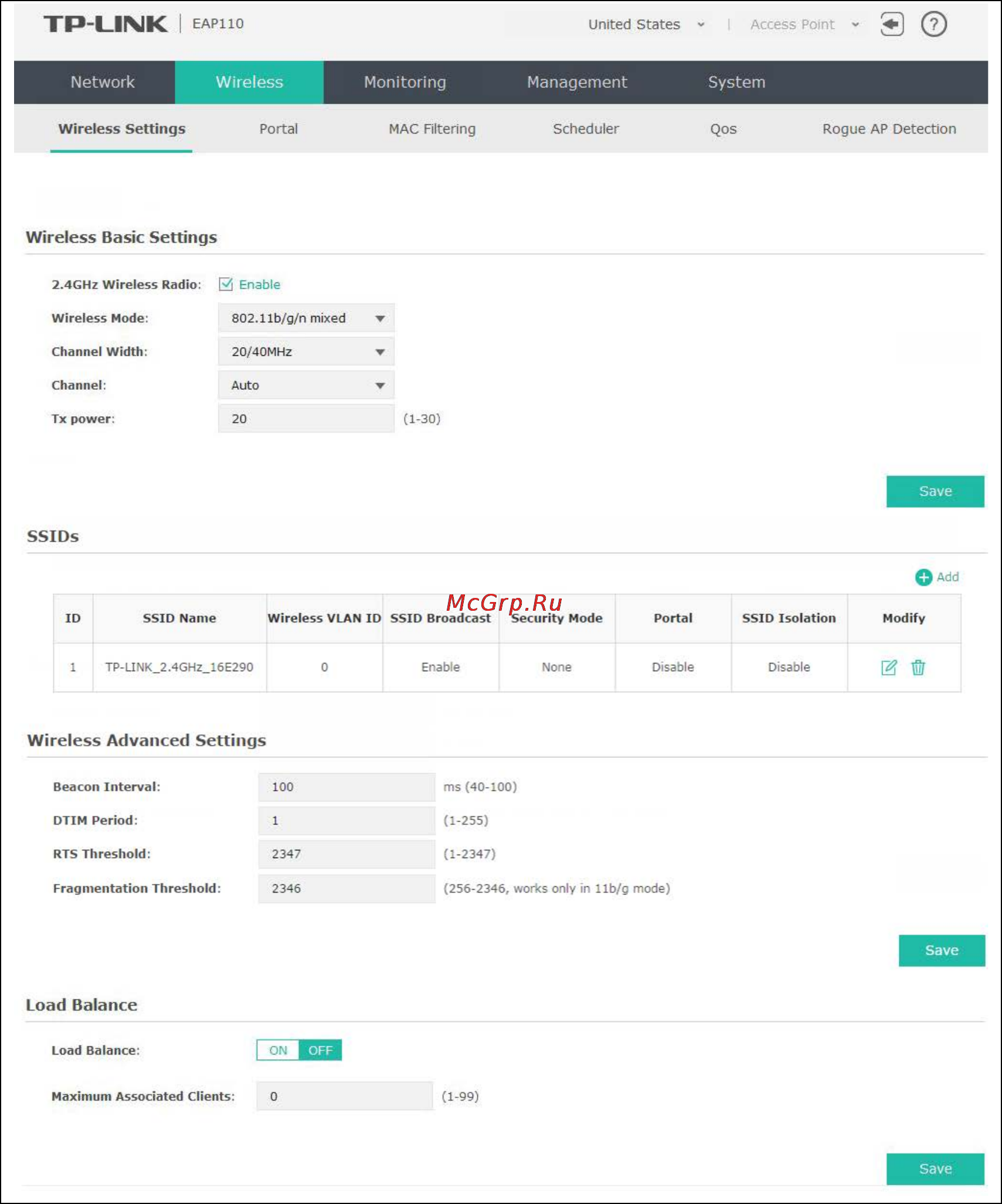

Figure 5-1 Wireless Page
