NC220

Day/Night Cloud Camera, 300Mbps Wi-Fi

2.3.2 Rear Panel

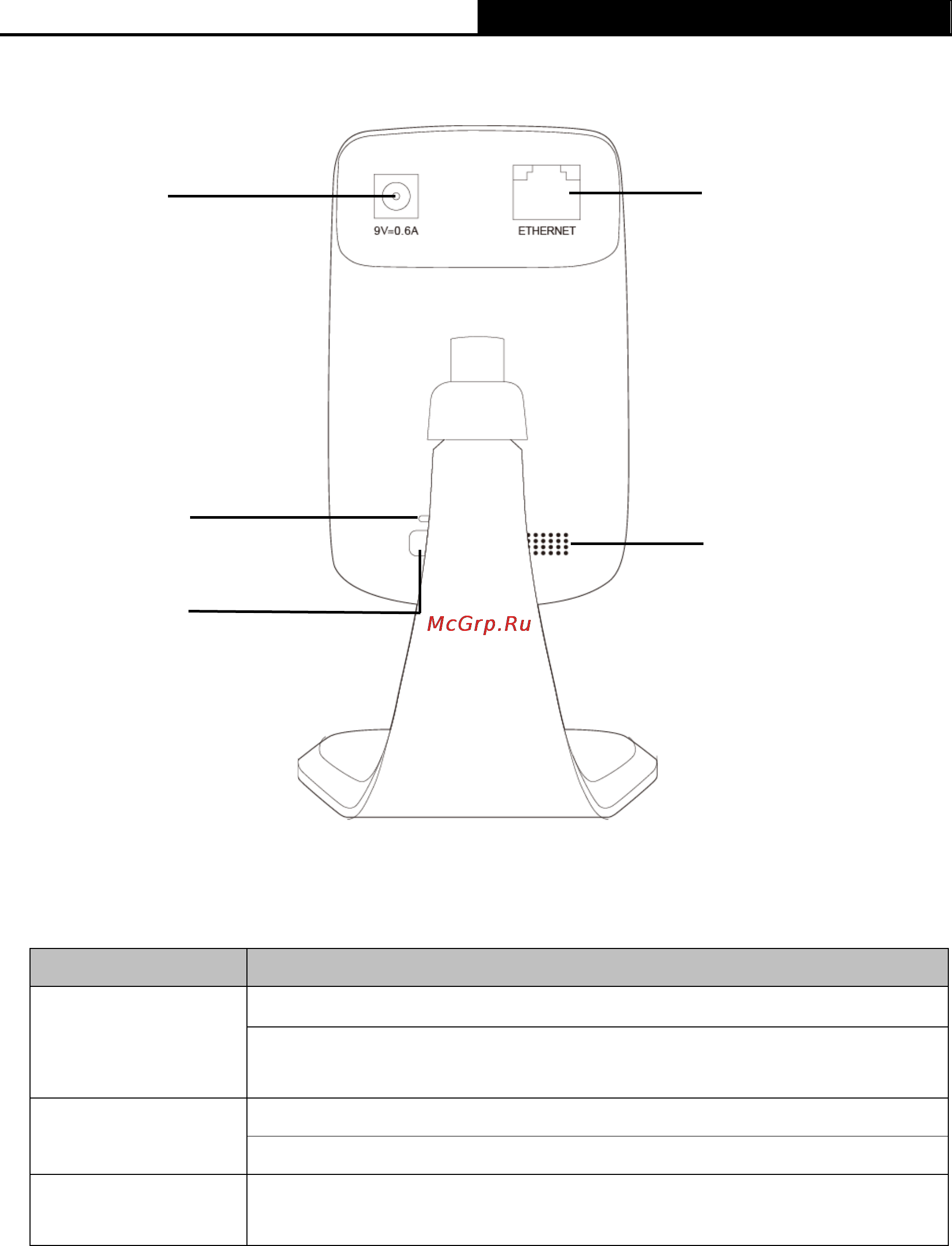

Figure 2-2 Rear Panel

 WPS LED:

Status Indication

Flashing Green

The camera starts booting up.

The camera is connecting to a network by WPS function. This

process will last in the first 2 minutes.

Off

The camera has boot up.

The camera failed to be added to a network by WPS function.

Solid Green

The camera has been successfully added to a network by WPS

function. This process will last in the first 2 minutes.

 ETHERNET Port: The ETHERNET port is used to connect the camera to a network via RJ45

cable.

 Power Jack: The power jack is where you connect the AC adapter to the camera.

 WPS/RESET Button: This button is used for both WPS and RESET function. To use the WPS

function, press it for 1 second; to use the RESET function, press and hold for more than 5

seconds.

ETHERNET Port

WPS LED

Power Jack

WPS/RESET

Button

Heat Emission Holes
