TA1600/2400/3200 User Manual

17/66

Hunt group will be chosen when configuring the FXS port "Follow Me". The hunt group

will work when a call reaches the FXS port associated user which is busy or no

answer.

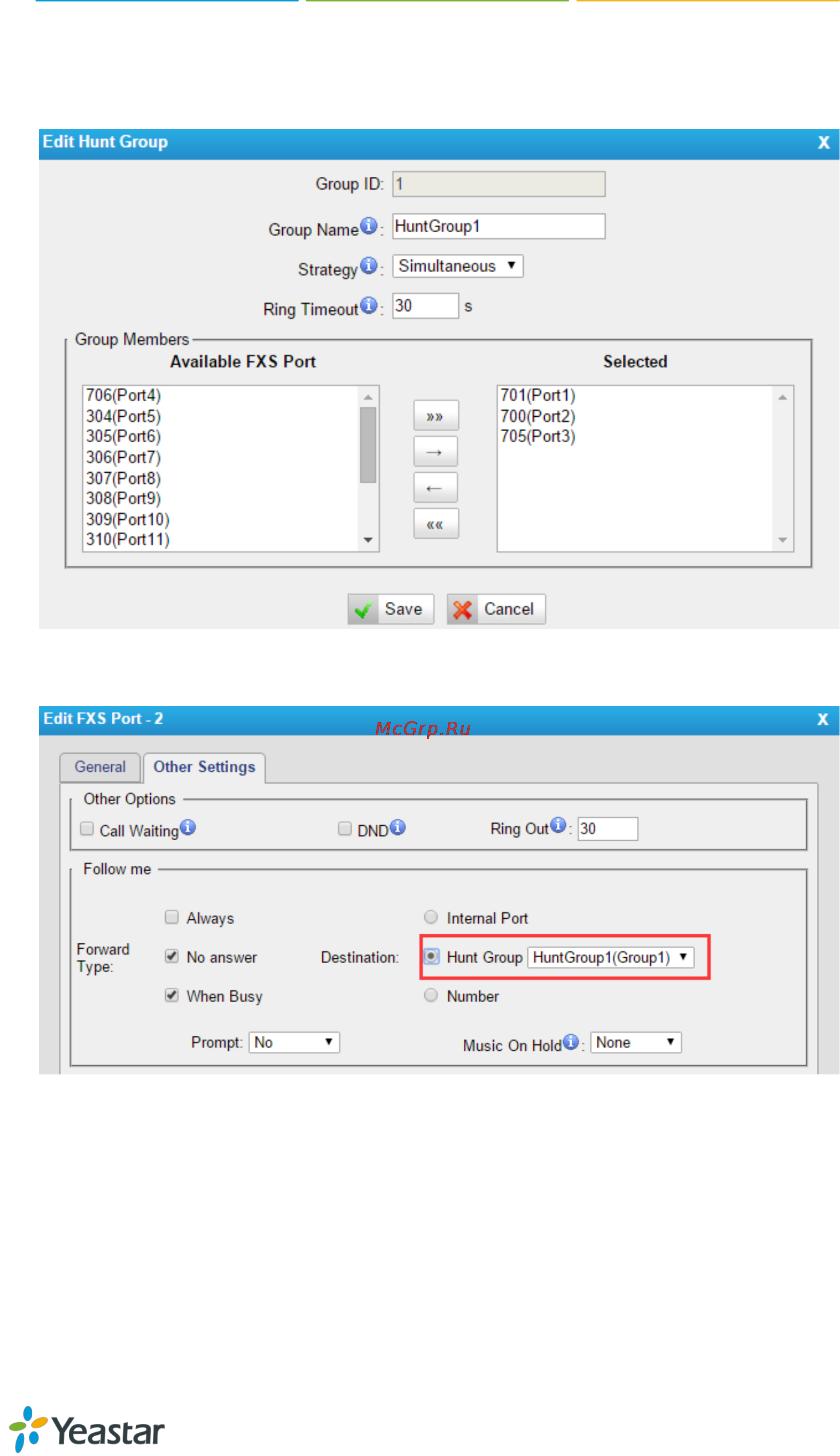

Figure 4-3 Hunt Group

Figure 4-4 Set Hount Group on "FXS Port" Page

There are 3 strategies for hunt group on TA FXS Gateway.

 Simultaneous

All the FXS users will ring at the same time.

 Circular

In circular hunting, the calls are processed "round-robin". If a call is delivered to

FXS port1, the next call will go to 2, the next to 3. The succession throughout each

of the FXS users even if one of the previous local users becomes free. When the
